ABB 7BCFM3136A Condensor Fan - CSA UR Certified
Part Number: 7BCFM3136A
Quick Summary
Condensor Fan from ABB 7BCFM3136A provides reliable air cooling for industrial condensers in HVAC and refrigeration systems. This solution addresses downtime and compatibility challenges when retrofitting aging condensers and integrating with existing plant controls. It carries CSA and UR electrical safety certifications and adheres to NEMA standards, supporting North American operations. With 0.5 HP at 60 Hz and voltages of 208–230/460 V in a three-phase configuration, the unit delivers dependable cooling while offering straightforward installation and maintenance. For buyers seeking long-term reliability and energy efficiency, this fan aligns with open-enclosure, resilient-mount configurations that fit a range of OEM equipment and service environments.
Product Information
Extended Description

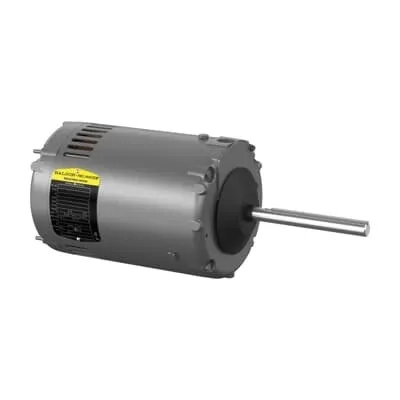

7BCFM3136A ABB: Condensor Fan 0.5 Hp 208 V (CFM3136A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1175RPM,3PH,60HZ,56YZ,3516M,OP
Altitude
1000 m
Ambient Temperature
60 °C
Bearing
6203, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFM3136A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYK306: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFM3136A
Gross Volume
3496.049 in³
Gross Weight
28 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1175RPM,3PH,60HZ,56YZ,3516M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Condensor Fan, 0.5 HP, 1200 RPM, Frame Size 56Yz, ResilientMount Mounting, 3 Phase, OPEN Enclosure, 208-230/460 V, 60 Hz (CFM3136A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
55 %
Product Name
Condensor Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
28 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.5 A | 2.4 A | 1.2 A
Rated Efficiency
70 %
Rated Speed
1140 r/min
Replaced Product ID (OLD)
7B35K306G344G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1200 RPM, Frame Size 56Yz, ResilientMount, 3 PH, OPEN, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
L
Voltage Rating
208 V | 230 V | 460 V
0.5 HP, 1140 r/min, 6-pole, three-phase operation delivers steady airflow suitable for condenser cooling in industrial HVAC and refrigeration applications. This means consistent outlet temperatures and reduced risk of compressor cycling due to airflow inconsistencies. With a 56YZ frame and direct-on-line starting, installation remains straightforward for standard equipment racks. The 56YZ frame with resilient mount reduces vibration transmission to equipment frames, improving reliability and reducing noise in plant environments. This design supports easy retrofits into existing condensers and aligns with common mounting patterns, lowering installation time and labor costs. Open enclosure and voltage versatility 208–230/460 V provide multi-voltage compatibility, enabling a single part to serve diverse plant sites and simplifying maintenance and procurement. Lubrication is regreasable, with sealed bearings on the drive end and a robust 6203 bearing, delivering longer service intervals in demanding environments while meeting NEMA guidelines for open motors. Rated current up to 2.5 A at 60 Hz, efficiency around 70%, and a service factor of 1.15 support energy efficiency and performance headroom, delivering cost savings over the fan’s lifecycle. Direct-on-line starting keeps control schemes simple and minimizes soft-start concerns when integrated with existing motor controllers, reducing total installed cost.
