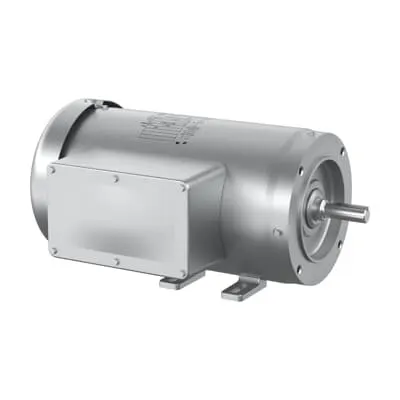

ABB 7BCFSWDL3506 Washdown Motor - CSA UR, Food Safe
Part Number: 7BCFSWDL3506
Quick Summary
Washdown motor ABB 7BCFSWDL3506 provides reliable 0.75 HP performance for hygienic food processing and packaging lines. In wet environments, corrosion and downtime erode productivity; this motor’s washdown design minimizes exposure and maintenance. Certified CSA and UR safety approvals, with a TEFC enclosure and a NEMA-compliant build, support safe operation in regulated facilities. Built as a 1-phase, 60 Hz unit rated for 115 V with a 56C frame, it installs quickly into existing equipment and reduces spare parts while delivering consistent speed and torque. This combination delivers measurable business value through improved uptime and easier compliance with industry standards across manufacturing facilities worldwide.
Product Information
Extended Description
7BCFSWDL3506 ABB: Washdown Motor 0.75 Hp 115 V (CFSWDL3506)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,1PH,60HZ,56C,3516L,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFSWDL3506
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE4732: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDL3506
Gross Volume
3496.049 in³
Gross Weight
33 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.75HP,3450RPM,1PH,60HZ,56C,3516L,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 0.75 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CFSWDL3506)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
81 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
33 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.2 A | 4.6 A
Rated Efficiency
64 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: Washdown design with TEFC enclosure and a stainless steel frame provides corrosion resistance and easy cleanability in food processing environments. Business impact: Extends motor life and reduces sanitation downtime, lowering total cost of ownership. Application: Suitable for conveyors, mixers, and pump drives on lines requiring frequent cleaning and high hygiene standards. Feature: 1-phase, 60 Hz operation at 115 V (and 230 V) with direct-on-line starting. Business impact: Simplifies electrical wiring, lowers installation costs, and accelerates commissioning. Application: Retrofit into existing single-phase lines in food, beverage, and pharmaceutical equipment where rapid deployment matters. Feature: 56C frame with TEFC enclosure and stainless frame material. Business impact: Durable, rugged performance in wet workplaces, reducing maintenance cycles and downtime. Application: Long-life drives on mixers, grinders, and conveyors in harsh cleaning regimes. Feature: Sealed bearing and robust drive components (6205 sealed bearing). Business impact: Lower maintenance requirements and fewer unplanned outages. Application: Continuous-duty conveyors and pump assemblies in production lines. Feature: C-Face drive end flange with foot-mounted base and horizontal orientation. Business impact: Flexible mounting options streamline installation and compatibility with existing equipment footprints. Application: Retrofit or new line integration in packaging and food processing setups.
Get a Quick Quote for a ABB 7BCFSWDL3506
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDL3506?
Enquire Now
FAQs
The ABB 7BCFSWDL3506 is a dedicated single-phase motor designed for 115 V (and 230 V) operation at 60 Hz. It uses direct-on-line starting, which minimizes control hardware and wiring complexity. When retrofitting, ensure your supply matches the rated voltage and confirm the 56C frame and C-face drive end flange align with your existing equipment footprint.
This motor employs a TEFC enclosure with a stainless-steel frame, delivering corrosion resistance and straightforward cleaning in washdown environments. The food-safe designation aligns with applications in food and beverage processing, packaging, and pharmaceutical lines where frequent cleaning and hygiene are essential to meet regulatory expectations.
The product is CSA and UR safety certified, supporting compliance for North American facilities. It uses a NEMA-based design with a TEFC enclosure, and the stainless frame helps maintain integrity in wet processes. These certifications ease audits and support acceptance in regulated industries like food, beverage, and pharma.
Best-fit applications include conveyors, mixers, and pumps in hygienic processing lines. The motor is a 2-pole, single-speed unit delivering 0.75 HP with 3450 rpm running speed, 1-phase 60 Hz operation, and a sealed bearing setup. Expect reliable startup, stable torque, and straightforward integration into existing production lines for improved uptime.
Plan for a foot-mounted base with a C-Face drive end flange to maximize mounting flexibility. The horizontal mounting orientation (F1) and 56C frame dimension simplify alignment with existing belts, couplings, or pulleys. Ensure adequate space for cleaning and service access, and verify ambient temperature limits (40 °C) are suitable for your facility.
