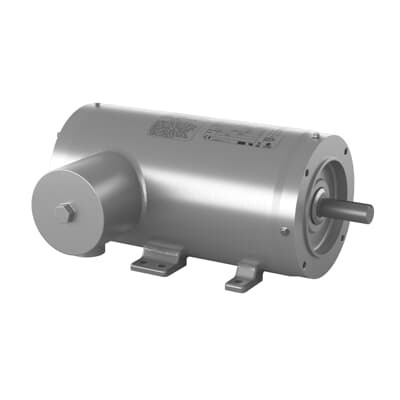

ABB 7BCFSWDM3546T-E-G Washdown Motor - Premium Efficiency
Part Number: 7BCFSWDM3546T-E-G
Quick Summary
Washdown motor ABB 7BCFSWDM3546T-E-G delivers 1 HP performance for sanitary food processing and packaging lines. Engineers often face washdown damage, corrosion, and unplanned downtime that disrupt production. This motor meets CSA EEV, UR, and NEMA premium efficiency standards to help you stay compliant. In practice, it pairs with 230/460 V 60 Hz systems and stainless steel construction to deliver reliable, energy-efficient operation. The result is easier maintenance, simpler spare-part planning, and predictable performance across sanitary lines. Year after year, teams can rely on ABB design for consistent torque and smooth starts in tough environments. This translates to lower lifecycle costs and higher uptime in industrial facilities.
Product Information
Extended Description
7BCFSWDM3546T-E-G ABB: Washdown Motor 1 Hp 230 V (CFSWDM3546T-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFSWDM3546T-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM3546T-E-G
Gross Volume
3496.049 in³
Gross Weight
37 lb
Insulation Class
H
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,3522M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (CFSWDM3546T-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
74 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
37 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3 A | 1.5 A
Rated Efficiency
85.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B35E6049G184G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The food-safe washdown motor uses a stainless-steel frame and TENV enclosure to resist corrosion in washed-down environments, extending service life and reducing maintenance costs on production lines. This directly supports longer intervals between service events and lower total cost of ownership in continuous-operation facilities such as dairy, meat, and beverage plants. Application-wise, it is ideal for sanitary conveyors, mixers, and pumps where frequent cleaning is required and uptime is critical. Feature → Business Impact → Application: A 1 HP, 1760 r/min, 3-phase motor with 60 Hz operation and 230/460 V compatibility enables straightforward integration with existing plant electrical infrastructure. The direct-on-line starting capability simplifies electrical design, shortens installation time, and minimizes downtimes during commissioning in packaging lines and material handling equipment. Feature → Business Impact → Application: C-face drive end flange and foot-mounted configuration with a 143TC frame and 0.88 inch shaft diameter provide flexible mounting options. This supports quick retrofits and space-constrained installations, reducing modification costs and enabling seamless upgrades on assembly lines and chillers. Feature → Business Impact → Application: Premium efficiency (NEMA Premium) and CSA EEV/UR certifications deliver energy savings and compliance confidence. Facilities can reduce energy bills while meeting stringent sanitary and safety standards across food processing facilities, restaurants, and hospitality equipment. Feature → Business Impact → Application: The motor’s robust operational envelope, including 40 °C ambient tolerance and shaft grounding, enhances reliability under washdown cycles and in humid environments. This translates to lower maintenance headaches, fewer unexpected outages, and more predictable performance for continuous-duty equipment like slicers, grinders, and packaging machines.
Get a Quick Quote for a ABB 7BCFSWDM3546T-E-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3546T-E-G?
Enquire Now
FAQs
This motor supports both foot-mounted and horizontal mounting with a drive-end C-Face flange. It uses a 143TC frame and a shaft diameter of 0.88 in, with shaft grounding available. Mounting position is F1, and the unit is compatible with direct-on-line starting, enabling straightforward integration into conveyors, pumps, or mixers on existing lines.
The motor delivers 1 HP output at 1760 r/min, designed for 3-phase operation at 230 V or 460 V and 60 Hz. It carries premium efficiency and a service factor of 1.15. Rated current is 3 A or 1.5 A depending on voltage, and it uses a 143TC frame with stainless-steel construction for washdown resilience.
Yes. It is specifically described as a Food Safe Washdown motor with stainless steel frame and a TENV enclosure, built to withstand regular sanitation cycles. Ambients up to 40 °C are supported, and the design aligns with sanitary standards to reduce corrosion and contamination risks on production lines.
The product carries CSA EEV, UR recognition, and NEMA Premium efficiency designation, supporting compliance with safety, energy, and performance requirements for industrial environments, particularly in food processing and packaging sectors.
Adopting this motor reduces downtime due to washdown-friendly construction and corrosion resistance, while premium efficiency lowers energy consumption. Together with straightforward installation and reliable performance, facilities can expect lower lifecycle costs, improved uptime, and predictable maintenance needs on sanitary equipment.
