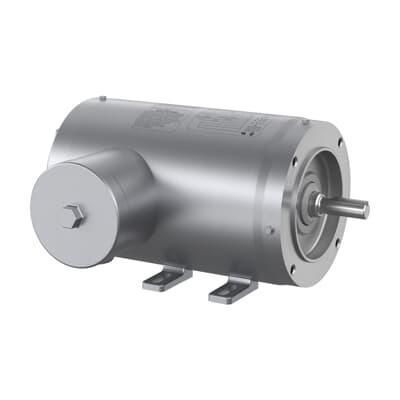

ABB 7BCFSWDM3550-E Washdown Motor - IE3 Premium Efficiency
Part Number: 7BCFSWDM3550-E
Quick Summary
ABB 7BCFSWDM3550-E washdown motor provides reliable, hygienic drive for food processing and packaging lines. Maintenance downtime and corrosion risk in wet environments challenge uptime and throughput, driving up maintenance costs and production losses. The unit delivers premium IE3 efficiency and carries certifications including CSA EEV, UR, and NEMA Premium, helping you meet industry and regulatory requirements with reduced risk. Designed for hygienic washdown environments, it aligns with a 56C frame and 3-phase operation at 230/460 V, ensuring compatibility with common control systems. The stainless-steel frame and C-face mounting simplify retrofits and field service, while robust sealing supports frequent cleaning cycles without sacrificing performance. Together, these features deliver lower total cost of ownership and greater plant reliability over time.
Product Information
Extended Description
7BCFSWDM3550-E ABB: Washdown Motor 1.50 Hp 230 V (CFSWDM3550-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3500RPM,3PH,60HZ,56C,3532M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDM3550-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4735: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM3550-E
Gross Volume
3496.049 in³
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
1.5HP,3500RPM,3PH,60HZ,56C,3532M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 1.5 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CFSWDM3550-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
90 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.6 A | 1.8 A
Rated Efficiency
85.50 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: IE3 Premium efficiency delivers lower operating costs across continuous duty lines, reducing energy consumption and heat generation on conveyors, mixers, and pumps. Business impact: Lower electricity bills and improved thermal management translate to higher throughput and longer motor life in demanding hygienic environments. Application: Ideal for food processing equipment where energy efficiency directly correlates with annual savings and regulatory compliance. Feature: Stainless steel frame with TENV enclosure provides corrosion resistance and withstands frequent washdowns. Business impact: Extends service life, lowers maintenance frequency, and reduces downtime during CIP cycles. Application: Food-safe washdown lines subject to harsh cleaning regimes. Feature: 56C frame with C-face mounting and 230/460 V three-phase compatibility simplifies retrofits and installation. Business impact: Faster commissioning, reduced installation costs, and seamless integration with existing control panels. Application: Retrofit projects and new equipment in packaging, beverage, and plant automation. Feature: Sealed 6205 bearings and robust construction minimize lubrication needs and maintenance events. Business impact: Lower total cost of ownership through longer bearing life, fewer spills, and predictable uptime. Application: High-duty cycles in clean environments requiring dependable performance. Feature: Stock availability across multiple warehouses supports faster procurement. Business impact: Shorter lead times and improved project scheduling. Application: Global procurement for plants with regional supply needs.
Get a Quick Quote for a ABB 7BCFSWDM3550-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3550-E?
Enquire Now
FAQs
For a successful retrofit or new install, verify the 56C frame footprint fits the equipment space, use C-face mounting for precise alignment, and connect to a 3-phase 230/460 V supply. Direct-on-line starting simplifies wiring and control. Ensure the base supports foot mounting and confirm stock availability from multiple warehouses to minimize downtime during installation.
IE3 Premium efficiency reduces energy consumption compared with lower efficiency classes, leading to noticeable savings on running costs in continuous-duty lines. In typical food-processing applications, this translates to lower kWh usage, cooler operation, and a faster return on investment when combined with reliable washdown design and reduced heat load on the drive system.
Yes. The motor features a stainless-steel frame with a TENV enclosure and sealed bearings designed to withstand frequent cleaning cycles and high-pressure washdowns. Its food-safe design and corrosion resistance make it well-suited for hygienic applications in food processing, beverage packaging, and other environments where sanitation is critical.
This model carries IE3 Premium efficiency and is certified to CSA EEV, UR, and NEMA Premium standards. These certifications help meet regulatory requirements for energy efficiency, safety, and performance in North American markets and support compliance in quality assurance programs for food-safe equipment.
The 6205 sealed bearings and stainless-steel frame are designed to minimize lubrication intervals and corrosion-related maintenance. Regular inspections during routine CIP cycles, plus adherence to manufacturer warranty terms, help sustain performance. Availability across multiple warehouses also enables faster parts replacement and service support when needed.
