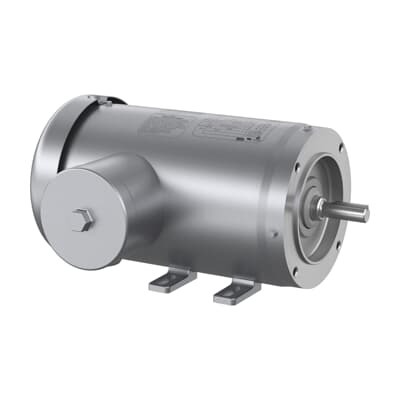

ABB 7BCFSWDM3558-E Washdown Motor - TEFC 56C
Part Number: 7BCFSWDM3558-E
Quick Summary
ABB 7BCFSWDM3558-E Washdown Motor powers hygienic washdown conveyors and mixers. In demanding sanitary environments, downtime from cleaning and bearing wear can throttle productivity, but this unit is designed for long life in such conditions. The motor carries CSA EEV, UR, and NEMA Premium efficiency certifications to ensure compliance and energy savings. With a stainless steel frame, TEFC enclosure, and a 56C frame rated for 230/460 V at 60 Hz, it offers installation flexibility and predictable lifecycle costs for food and beverage lines while supporting streamlined maintenance and robust performance.
Product Information
Extended Description
7BCFSWDM3558-E ABB: Washdown Motor 2 Hp 230 V (CFSWDM3558-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1765RPM,3PH,60HZ,56C,3528M,TEFC
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDM3558-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4741: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM3558-E
Gross Volume
3496.049 in³
Gross Weight
45 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
2HP,1765RPM,3PH,60HZ,56C,3528M,TEFC,F1,N
Made To Order
No
Medium Description
Food Safe Washdown, 2 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CFSWDM3558-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
81 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
45 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.3 A | 2.65 A
Rated Efficiency
86.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
2 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Food-safe, washdown-ready construction delivers corrosion resistance and easy cleaning, reducing maintenance cycles and downtime in sanitary environments. Premium efficiency (86.50%) lowers operating costs and energy waste, while a 0.81 power factor improves electrical performance on larger installations. The TEFC enclosure and 56C frame provide durable protection against washdown liquids and frequent cleaning cycles, enabling reliable operation across 230/460 V, 60 Hz systems. The stainless-steel frame and sealed bearing 6205 design minimize contamination risk and maintenance expense, extending service life in tough processing settings. Foot-mounted base with C-face drive end flange (classical 56C) simplifies integration with existing conveyors and gearboxes, and direct-on-line starting supports fast commissioning. Stocked at multiple warehouses with zero lead time and no made-to-order delays, this motor suits high-volume production portfolios and capital budgeting cycles.
Get a Quick Quote for a ABB 7BCFSWDM3558-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3558-E?
Enquire Now
FAQs
The motor is designed for horizontal, foot-mounted installation with a C-face drive end flange (C-Face). It operates as a 3-phase unit at 230/460 V with 60 Hz, supporting direct-on-line starting for quick commissioning and straightforward integration with existing conveyors and equipment.
Key specs include 2 HP output, rated speed 1765 r/min, frame size 56C, TEFC enclosure, 56C frame, voltage 230/460 V, frequency 60 Hz, rated current around 5.3 A (2.65 A per winding), and efficiency of 86.50% with a power factor of about 0.81. These figures support reliable performance in sanitary lines while driving energy savings.
Yes. It is branded as a food-safe washdown motor with a stainless-steel frame and sealed bearings designed to withstand frequent cleaning and contact with washdown liquids, aligning with hygienic processing environments and reducing contamination risk while maintaining performance.
This model carries CSA EEV, UR, and NEMA Premium efficiency certifications, signaling electrical safety, reliability, and energy efficiency. These certifications help meet regulatory requirements, support qualification for specific projects, and optimize total cost of ownership through lower energy consumption.
Lead times are listed as 0 day, and the product is stocked at multiple warehouses, enabling rapid deployment for production runs. Warranty terms indicate standard return conditions for warranty-covered items, aiding risk management and long-term ROI when replacing aging equipment.
