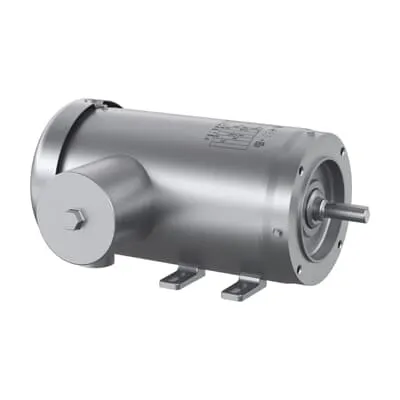

ABB 7BCFSWDM3559-E-G Washdown Motor - NEMA Premium
Part Number: 7BCFSWDM3559-E-G
Quick Summary
ABB 7BCFSWDM3559-E-G washdown motor delivers dependable 3 HP performance for hygienic food, beverage, and pharmaceutical lines. In washdown environments, downtime and corrosion risk from frequent cleaning can cripple production. This motor carries CE, CSA EEV, NEMA Premium efficiency, and UR/WEEE certifications, with a TEFC enclosure and stainless-steel frame for washdown reliability. Coupled with a compact, C-face 56C frame and 3-phase 60 Hz operation, it reduces installation time while meeting stringent industry standards. Designed for ready stock across multiple sites, it supports scalable hygienic automation and reduces total cost of ownership by improving uptime and energy efficiency.
Product Information
Extended Description
7BCFSWDM3559-E-G ABB: Washdown Motor 3 Hp 230 V (CFSWDM3559-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3/2.2KW 4:1CT,10:1VTHP,3470 1/MIN
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFSWDM3559-E-G
Certification Agency
CE | CSA EEV | NEMA_PREMIUM | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM3559-E-G
Gross Volume
5274.135 in³
Gross Weight
61 lb
Insulation Class
H
Invoice Description
3/2.2KW 4:1CT,10:1VTHP,3470 1/MIN IP69K
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (CFSWDM3559-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
90 %
Product Name
Food Safe Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
61 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3470 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Shaft Grounding
Shaft Grounding
Short Description
3 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Food Safe Washdown design with a stainless steel frame and TEFC enclosure ensures protection against washdown fluids. Business Impact: Reduces contamination risk and simplifies sanitization cycles, improving product quality and operator safety. Application: Food processing and beverage lines where frequent cleaning is required. Feature: 3 HP, 60 Hz operation with 230/460 V compatibility provides robust power for conveyors and pump duties. Business Impact: Delivers reliable torque and flexible integration with common plant power systems, lowering wiring and upgrade costs. Application: Material handling, dosing pumps, and sanitary equipment. Feature: 56C frame and C-Face mounting enable straightforward retrofits and alignment with existing mechanical systems. Business Impact: Cuts installation time and minimizes downtime during line changes. Application: Upgrades in bakeries, dairies, and pharma packaging lines. Feature: Foot-mounted base and horizontal mounting position simplify setup and vibration management. Business Impact: Improves system stability and reduces maintenance needs. Application: Compact skids and palletizing stations in hygienic production environments. Feature: Premium efficiency (NEMA Premium) and 86.5% efficiency with 90% power factor translate to energy savings and reduced operating costs. Business Impact: Lowers energy spend on continuous-running motors and supports sustainability goals. Application: Any continuous-w duty washdown application seeking long-term ROI.
Get a Quick Quote for a ABB 7BCFSWDM3559-E-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3559-E-G?
Enquire Now
FAQs
Yes. The motor uses a 56C frame, C-Face mounting, and a foot-mounted base with horizontal orientation, making it a straightforward upgrade for most conveyors and hygienic lines. Its mounting options align with common drive end flange types, reducing retrofit time and preserving alignment with existing pulleys and coupling housings.
The motor delivers 3 HP at 60 Hz, 230/460 V, with a synchronous speed of 3600 r/min and a rated speed of 3470 r/min. It maintains a high power factor of about 90% and efficiency around 86.5%. In practice, this means reliable torque for conveyors and pumps with lower energy bills during continuous operation.
Absolutely. It is described as a Food Safe Washdown motor with a TEFC enclosure and stainless-steel frame, designed to withstand frequent washdowns and sanitize cycles typical in food, beverage, and pharmaceutical lines. Certifications including CE, CSA EEV, NEMA Premium, UR, and WEEE reinforce compliance and reliability.
The motor carries CE, CSA EEV, NEMA Premium efficiency, UR, and WEEE certifications, meeting European and North American standards for safety, energy efficiency, and environmental compliance. This helps simplify procurement for regulated facilities and supports audit-ready documentation.
Lead time is listed as zero days, and stock is available at multiple warehouses including EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, and USABB014EXPU. This arrangement supports rapid deployment across sites and reduces project delays when commissioning hygienic systems.
