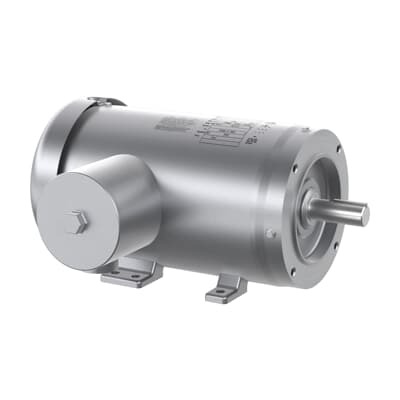

ABB 7BCFSWDM3559T-4E Motors & Drives - Premium Efficiency
Part Number: 7BCFSWDM3559T-4E
Quick Summary
ABB 7BCFSWDM3559T-4E is a 3HP, 460 V motor designed for continuous-duty operation in demanding industrial drives. It helps engineers balance long service life with energy efficiency in conveyors, pumps, and fans. The motor’s TEFC enclosure, stainless-steel frame, and robust bearings address reliability in harsh environments while keeping footprint compatible with standard 143TC mounts. It supports CURUSEEV and NEMA Premium efficiency, plus WEEE compliance, helping meet regulatory and sustainability goals. The combination of performance, durability, and ease of installation translates to lower maintenance costs and faster ROI for end users, with straightforward retrofits and predictable maintenance cycles.
Product Information
Extended Description
7BCFSWDM3559T-4E ABB: 460 V (CFSWDM3559T-4E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3470RPM,3PH,60HZ,143TC,3546M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDM3559T-4E
Certification Agency
CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
Undefined
Global Commercial Alias
CFSWDM3559T-4E
Gross Weight
61 lb
Insulation Class
H
Invoice Description
3HP,3470RPM,3PH,60HZ,143TC,3546M,TEFC,F1
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Power Factor
91 %
Product Name
WD - Stainless
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
61 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.7 A
Rated Efficiency
86.5 %
Replaced Product ID (OLD)
7B35E4743K985
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature: Premium efficiency rating and 3HP output. Benefit: Reduces energy consumption and operating costs in continuous-duty drives, improving total cost of ownership. Application: Suitable for conveyors, pumps, and fans in manufacturing environments, especially where energy budgets are tight. Feature: TEFC enclosure and stainless steel frame. Benefit: Enhanced protection against dirt, dust, and washdown conditions, extending service life in harsh industrial settings. Application: Food processing, chemical plants, and outdoor installations requiring durable construction. Feature: Foot-mounted 143TC frame with 0.88 inch shaft diameter. Benefit: Easy retrofit and compatibility with existing drive trains, minimizing installation time. Application: Standard industrial conveyors and pump assemblies. Feature: NEMA Design Code A and high insulation class H. Benefit: Reliable performance under continuous loads with improved thermal resilience and longer insulation life. Application: Heavy-duty applications with demanding duty cycles. Feature: Direct-on-line starting and 3600 r/min synchronous speed. Benefit: Simplified electrical installation and immediate torque for startup, reducing downtime. Application: Line-driven processes and equipment with frequent on/off cycles.
Get a Quick Quote for a ABB 7BCFSWDM3559T-4E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3559T-4E?
Enquire Now
FAQs
This motor is a 3-phase, 460 V unit designed for direct-on-line starting with a foot-mounted installation. Use the 143TC frame and TEFC enclosure to ensure proper fit and protection. Verify ambient conditions do not exceed 40 °C and confirm bearings (6205 sealed) remain lubricated for extended life. Align couplings precisely to minimize vibration and wear.
The motor delivers premium efficiency performance aligned with NEMA Premium standards and an 86.5% rated efficiency, with a power factor around 0.91. It operates at 3600 r/min synchronous speed (2-pole) and provides 3 HP output, suitable for continuous-duty applications in conveyors, pumps, and fans in 60 Hz, 3-phase power systems.
Yes. The TEFC enclosure and stainless-steel frame are designed for durability in challenging environments, with a 40 °C ambient rating and high-insulation class H. Its direct-on-line starting and robust bearings support reliable operation in continuous-duty duties like conveyors and pumps, while the NEMA Design A specification ensures predictable torque and performance.
Compliance is supported by CURUSEEV certification, NEMA Premium efficiency rating, and WEEE compliance. These certifications help meet energy efficiency mandates, environmental directives, and product safety standards, enabling easier procurement and regulatory alignment in various regions.
The sealed 6205 bearings, H insulation, and stainless-steel frame contribute to longer service life and reduced maintenance intervals. Direct-on-line starting lowers ancillary equipment costs, while premium efficiency reduces operating energy use. Overall, customers typically see lower total cost of ownership and faster ROI in continuous-duty applications like packaging lines and water pumps.
