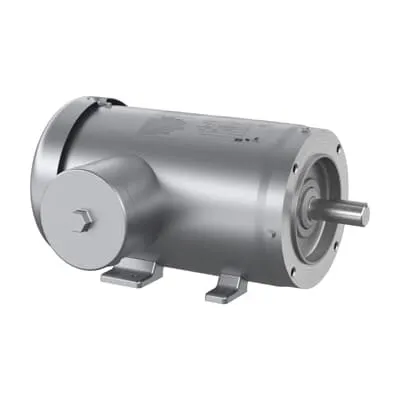

ABB 7BCFSWDM3559T-E Washdown Motor - TEFC Enclosure
Part Number: 7BCFSWDM3559T-E
Quick Summary
ABB 7BCFSWDM3559T-E washdown motor powers hygienic, high-demand processes in food, beverage, and packaging lines. This model supports reliable, cleanable operation in wet environments, addressing the need for durable, corrosion-resistant drives that minimize downtime. Designed for 3 HP at 230/460 V with a TEFC enclosure, it helps maintain productivity under frequent washdowns. Certifications from CSA EEV, NEMA Premium Efficiency, and UR provide regulatory confidence and energy savings. By pairing a stainless steel frame with C-Face mounting and a 145TC footprint, this motor delivers easy installation, long service life, and consistent performance in demanding facility conditions. For procurement, this motor aligns with standard Baldor-Reliance components, reducing spare-part complexity while ensuring compatibility with existing drives and controls.
Product Information
Extended Description
7BCFSWDM3559T-E ABB: Washdown Motor 3 Hp 230 V (CFSWDM3559T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3470RPM,3PH,60HZ,145TC,3546M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDM3559T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4743: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM3559T-E
Gross Volume
5274.135 in³
Gross Weight
61 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
3HP,3470RPM,3PH,60HZ,145TC,3546M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 3600 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CFSWDM3559T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
91 %
Product Name
Food Safe Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
61 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.4 A | 3.7 A
Rated Efficiency
86.50 %
Rated Speed
3470 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure protects windings from moisture and cleaning agents, reducing maintenance and downtime in washdown environments. Result: higher uptime in food processing lines and easier sanitation cycles. Application: hygienic processing areas and installation next to wash stations. Feature → Long-life stainless steel frame and 145TC footprint provide corrosion resistance and compatibility with standard mounting patterns. Result: simplified retrofits and predictable replacement cycles. Application: packaging conveyors and beverage lines where frequent cleaning is required. Feature → 3 HP, 3470 r/min, 60 Hz, 230/460 V three-phase operation with a 1.15 service factor improves drivetrain efficiency and reliability. Result: lower energy costs and improved load tolerance. Application: continuous-duty conveyors and mixer drives in continuous production. Feature → C-Face mounting and foot-mounted base support flexible installation options. Result: straightforward alignment with existing power transmission and reduced installation time. Application: retrofits or new installations with limited space. Feature → Premium efficiency, NEMA design, and CSA EEV/UR certifications provide regulatory alignment and energy performance validation. Result: easier compliance documentation and long-term cost savings. Application: regulated facilities and OEMs seeking certified, replaceable components.
Get a Quick Quote for a ABB 7BCFSWDM3559T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3559T-E?
Enquire Now
FAQs
This motor supports horizontal mounting with a C-Face drive end flange and a foot-mounted base, configured for F1 position. The combination enables flexible installation in conveyors and processing equipment, allowing straightforward alignment with existing gearboxes and couplings.
Yes. It is a food-safe washdown solution featuring a TEFC enclosure and a stainless steel frame designed to withstand frequent cleaning. The ambient temperature rating is 40 °C, and it complies with industry certifications (NEMA Premium Efficiency, CSA EEV, UR), supporting reliable operation in hygienic facilities.
The motor is a three-phase unit rated for 230 V or 460 V at 60 Hz, delivering 3 HP with a synchronous speed of 3600 r/min and a rated speed of 3470 r/min. It uses a 145TC frame with a shaft diameter of 0.88 in and a 1.15 service factor, suitable for continuous-duty drives.
Lead time is stated as 0 day, enabling immediate or same-day fulfillment in many inventories. Warranty terms indicate that products returned under warranty must be returned to the supplier, aligning with standard manufacturer warranty practices for motors and drivetrains.
The motor targets Premium Efficiency with a rated efficiency of 86.50% and a service factor of 1.15. It uses direct-on-line starting, is a 3-phase unit with 3470 r/min speed, and operates at 60 Hz. These specs support reliable performance in continuous-duty applications like conveyors and processing lines.
