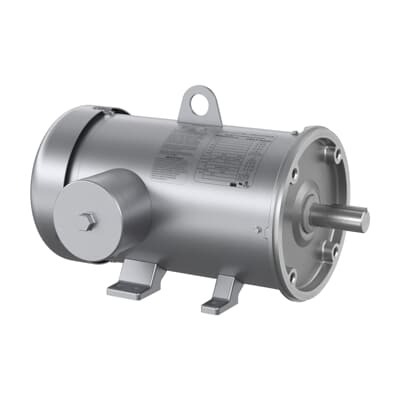

ABB 7BCFSWDM3614T-E Washdown Motor - TEFC Enclosure
Part Number: 7BCFSWDM3614T-E
Quick Summary
ABB washdown motor provides a reliable, hygienic drive for food and beverage processing lines. In washdown environments, corrosion and downtime threaten productivity, but this model uses a stainless steel frame and sealed bearings to resist moisture and cleaning agents. Certified CSA EEV, UR, and NEMA Premium standards confirm safety, energy efficiency, and reliability under demanding conditions. Operating at 230/460 V with a TEFC enclosure, it easily integrates with standard plant power and drives, delivering consistent torque and easy maintenance. This combination helps manufacturers reduce maintenance costs, improve sanitation, and lower total cost of ownership across production lines.
Product Information
Extended Description
7BCFSWDM3614T-E ABB: Washdown Motor 2 Hp 230 V (CFSWDM3614T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1175RPM,3PH,60HZ,184TC,3646M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDM3614T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYR552: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM3614T-E
Gross Volume
7192.91 inÂł
Gross Weight
101 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
2HP,1175RPM,3PH,60HZ,184TC,3646M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 2 HP, 1200 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CFSWDM3614T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
61 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
101 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
88.50 %
Rated Speed
1175 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Stainless steel frame and TEFC enclosure deliver outstanding washdown resilience, directly lowering maintenance costs and downtime in hygienic environments. This configuration protects bearings and windings from moisture and cleaning agents, enabling reliable operation on open-grade conveyors and processing lines. 3-phase, 2 HP, 60 Hz design with 230/460 V compatibility supports flexible installation across plants. The 184TC frame and foot mounting simplify retrofits and new builds, while direct-on-line starting reduces drive hardware and startup time. IE3 premium efficiency and a 1.15 service factor translate to energy savings and robust performance under continuous duty. Operators benefit from lower energy bills and predictable torque with the 1.15 SF. Quality certifications—CSA EEV, UR, and NEMA Premium—support compliance in regulated markets. Stainless bearings (6206) provide long life and low maintenance while the motor’s sanitary design minimizes cleaning cycles and downtime. The motor is engineered for compatibility with standard drives and quick commissioning, helping OEMs shorten installation schedules and ensure sanitary compliance across facilities.
Get a Quick Quote for a ABB 7BCFSWDM3614T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3614T-E?
Enquire Now
FAQs
Begin by confirming a three-phase 230/460 V supply and a 60 Hz system. Mount the 184TC frame using foot mounting on a stable base, align the shaft, and connect to a compatible drive with direct-on-line starting. Ensure the enclosure remains TEFC and that the stainless steel frame can withstand frequent washdowns. Finally, follow standard motor commissioning procedures and perform a run-up test.
The motor is 2 HP with a rated speed of 1175 r/min and a synchronous speed of 1200 r/min at 60 Hz. It features IE3 Premium efficiency and a service factor of 1.15, suitable for continuous-duty, three-phase applications. It operates at 230/460 V and is designed for robust performance in sanitary environments.
Yes. The stainless steel frame and TEFC enclosure are designed for washdown environments, supporting stringent sanitation. It carries certifications and is specified for food-safe washdown designs, making it well-suited for dairy, beverage, and other hygienic processing lines where cleaning and uptime matter.
This model lists CSA EEV, UR, and NEMA Premium certifications, signaling compliance with electrical safety, reliability, and energy efficiency standards. For plant operators, these certifications support regulatory acceptance, facilitate audits, and help maintain warranty eligibility while ensuring efficient operation in regulated industries.
The sealed bearings (6206) and stainless steel frame minimize corrosion-related downtime, reducing maintenance frequency. IE3 efficiency lowers energy costs over the motor’s life, and the TEFC design reduces cleaning needs. Direct-on-line starting simplifies electrical integration, shortening commissioning time and improving upfront ROI for sanitary production lines.
