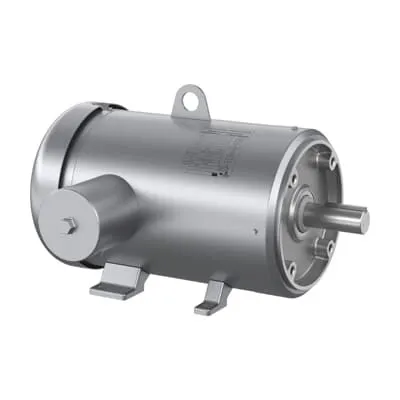

ABB 7BCFSWDM3711T-E Washdown Motor - Premium Efficiency
Part Number: 7BCFSWDM3711T-E
Quick Summary
ABB 7BCFSWDM3711T-E Washdown Motor delivers 10 HP power for food-processing equipment and washdown conveyors. In harsh washdown environments, durability and uptime are costly; this motor is built to withstand frequent cleaning cycles and heavy use. It carries CSA, CSA EEV, and UR safety certifications, ensuring compliance across North American facilities. The dual voltage 230/460 V, three‑phase design paired with Premium Efficiency helps cut energy bills while maintaining reliable performance in sanitary settings. For OEMs and maintenance teams, this combination translates to longer service intervals, easier stocking, and predictable total cost of ownership. This makes it a smart fit for food and beverage lines, pharmaceuticals, and any 60 Hz line equipment.
Product Information
Extended Description
7BCFSWDM3711T-E ABB: Washdown Motor 10 Hp 230 V (CFSWDM3711T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3500RPM,3PH,60HZ,215TC,3744M,T
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6307 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFSWDM3711T-E
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYQ242: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM3711T-E
Gross Volume
7561.383 inÂł
Gross Weight
149 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
10HP,3500RPM,3PH,60HZ,215TC,3744M,TEFC,F
Made To Order
No
Medium Description
Food Safe Washdown, 10 HP, 3600 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CFSWDM3711T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
94 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
149 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21.2 A | 10.6 A
Rated Efficiency
91.70 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 3600 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure with stainless steel frame and 215TC frame size. Business Impact: Provides robust protection against washdown fluids and corrosion, extending motor life and reducing maintenance. Application: Ideal for sanitary food processing lines and beverage conveyors where frequent cleaning is required. Feature: 10 HP output with 3500 r/min rated speed at 60 Hz. Business Impact: Delivers dependable torque and consistent throughput, enabling stable line performance and reduced cycle times. Application: Packaging, impeller-driven conveyors, and mixer drives in 60 Hz facilities. Feature: Dual voltage 230/460 V and 3-phase configuration. Business Impact: Flexible installation with existing electrical infrastructure, minimizing rewiring costs and downtime. Application: Plants upgrading from single source to three-phase systems or standardizing across multiple lines. Feature: Premium Efficiency (NEMA) and 1.15 Service Factor. Business Impact: Lower energy consumption and reduced operating costs, while maintaining performance under peak loads. Application: Continuous process lines in food and pharmaceutical plants where energy efficiency matters. Feature: Heavy-duty bearings (6307 Ball) and 40 °C ambient rating. Business Impact: Longer bearing life and reliable performance in typical plant environments, reducing unplanned maintenance. Application: High-duty washdown environments with frequent cleaning cycles. Feature: 215TC frame with C-Face mounting and horizontal foot mounting option. Business Impact: Simplifies installation and upgrade paths, enabling quick retrofits with minimal alignment issues. Application: OEM equipment and aftermarket replacements in existing frame footprints.
Get a Quick Quote for a ABB 7BCFSWDM3711T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3711T-E?
Enquire Now
FAQs
Begin by confirming supply voltage and three‑phase wiring per NEMA guidelines. Mount the unit on a compatible 215TC footprint with C‑Face or foot mounting as required, and ensure proper alignment to avoid shaft stress. Use appropriate motor starter protection and, if needed, a basic VFD for process control. Finally, verify ambient limits and torque requirements before commissioning.
The motor delivers 10 HP at 3500 r/min (rated speed) on 60 Hz, across 230 V or 460 V three‑phase power. It features a 1.15 service factor, efficiency around 91.7%, and a 215TC frame. It uses TEFC enclosure, 6307 ball bearings, and a 1.38 in shaft diameter, suitable for continuous duty with direct-on-line starting.
Yes. The 7BCFSWDM3711T-E is designed for sanitary environments with a TEFC enclosure and stainless steel frame, rated to operate in ambient temperatures up to 40 °C. It supports high-pressure washdowns and frequent cleaning cycles, making it well-suited for food and beverage processing lines and other washdown‑critical equipment.
The motor carries CSA, CSA EEV, and UR listings, indicating safety and electrical compliance for North American food and industrial facilities. These certifications help meet regulatory requirements and facilitate procurement for regulated environments, while supporting safe operation in 230/460 V, 3‑phase systems.
Premium Efficiency lowers ongoing energy costs, while a robust 6307 ball bearing design reduces maintenance frequency. Stainless steel frame and TEFC enclosure resist washdown exposure, extending service life. With multiple warehouse stock locations, installation downtime is minimized, delivering faster ROI on OEM replacements or upgrades in busy production lines.
