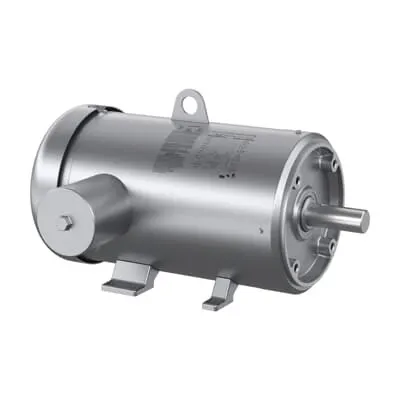

ABB 7BCFSWDM3711T-E-G Washdown Motor - Premium Efficiency
Part Number: 7BCFSWDM3711T-E-G
Quick Summary
Washdown motor provides reliable, sanitary power for food-processing and other washdown environments. Operators face corrosion, frequent cleaning cycles, and downtime when equipment isn't built for sanitation. This model meets CSA EEV, UR, and NEMA Premium efficiency standards, with a TEFC enclosure and stainless-steel frame designed for 40 °C ambient operation. Using this motor helps reduce water exposure, extend bearing life, and lower energy costs in high-pressure washdown lines. It supports 230/460 V, 3-phase power at 60 Hz and aligns with standard 215TC frames for quick integration. Built for horizontal mounting with C-face drive end, it's compatible with common conveyors and sanitary equipment.
Product Information
Extended Description
7BCFSWDM3711T-E-G ABB: Washdown Motor 10 Hp 230 V (CFSWDM3711T-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3500RPM,3PH,60HZ,215TC,3744M,T
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6307
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFSWDM3711T-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM3711T-E-G
Gross Volume
7561.383 in³
Gross Weight
154 lb
Insulation Class
H
Invoice Description
10HP,3500RPM,3PH,60HZ,215TC,3744M,TEFC,F
Made To Order
No
Medium Description
Food Safe Washdown, 10 HP, 3600 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (CFSWDM3711T-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
94 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
154 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21.2 A | 10.6 A
Rated Efficiency
91.70 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
10 HP, 3600 RPM, Frame Size 215Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature TEFC enclosure and stainless-steel frame. Business Impact This protects motor internals from moisture, corrosion, and cleaning chemicals, reducing maintenance and downtime in harsh washdown environments. Application Food and beverage processing lines and sanitary equipment benefit from longer service life and easier sanitation routines. Feature 10 HP, 3500 r/min, 60 Hz, 230/460 V, 3-phase. Business Impact Delivers reliable torque and speed for conveyors and process equipment, enabling stable line flow and predictable performance. Application Packaging lines, conveyors, and mixers in sanitary facilities gain consistent throughput. Feature C-face drive end flange and foot-mounted configuration. Business Impact Simplifies retrofits and on-site mounting in tight spaces, enabling quick replacement and flexible installation. Application Horizontal conveyors and sanitary pumps benefit from straightforward alignment. Feature Premium efficiency (NEMA Premium) and service factor 1.15. Business Impact Reduces energy costs while handling peak loads without overheating, improving total cost of ownership. Application Continuous-duty sanitary lines with energy constraints. Feature Sealed 6307 bearings and 1.38 in shaft diameter. Business Impact Extends bearing life and reduces maintenance intervals in high-pressure washdown cycles. Application Conveyors, agitators, and mixers in food-safe environments. Feature 215TC frame, TEFC enclosure, 40 °C ambient rating. Business Impact Compatibility with standard replacement parts and straightforward installation in sanitary machinery. Application Industry-standard components and quick swaps for clean-in-place lines.
Get a Quick Quote for a ABB 7BCFSWDM3711T-E-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM3711T-E-G?
Enquire Now
FAQs
The motor operates on 3-phase power at 230 V or 460 V and runs at 60 Hz. This dual-voltage capability supports flexible installation in facilities with varying electrical infrastructure, enabling straightforward retrofits without additional transformers or rewiring.
Yes. It features a TEFC enclosure and a stainless-steel frame designed for washdown environments, rated for 40 °C ambient operation. It also carries NEMA Premium efficiency certification and CSA EEV/UR marks, aligning with stringent sanitary and energy-performance standards.
The unit is designed for foot-mounted installation with a C-face drive end flange, simplifying physical integration and alignment. Its 215TC frame and horizontal mounting orientation support straightforward replacement in conveyors and sanitary equipment without extensive rework.
The motor delivers 10 HP with a rated speed of 3500 r/min (synchronous 3600 r/min), 3-phase operation, and 60 Hz. Efficiency is rated at 91.70%, and it includes a service factor of 1.15 to handle transient loads in continuous-duty applications.
Stock is available from multiple warehouses with zero-day lead times noted in the specification. Warranty terms state that product under warranty must be returned. This combination supports rapid deployment and clear, manufacturer-backed support for downtime-prone washdown lines.
