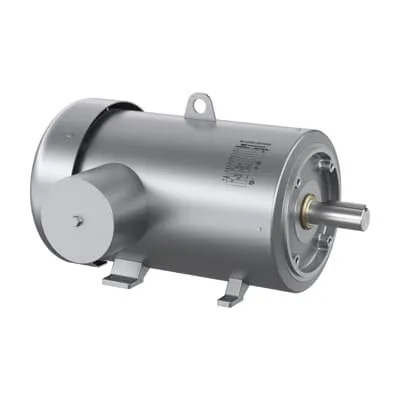

ABB 7BCFSWDM41902T Washdown Motor - NEMA Premium
Part Number: 7BCFSWDM41902T
Quick Summary
7BCFSWDM41902T is a washdown motor delivering 20 HP for food processing and other sanitary environments. Operators often grapple with downtime and sanitation challenges when equipment cannot withstand frequent washdowns. This model carries CSA, UR and NEMA Premium certifications, plus EEV testing, helping you meet safety, efficiency, and regulatory requirements with confidence. With TEFC enclosure, stainless steel frame, and 284TC footprint, installation is straightforward and corrosion-resistant, reducing service visits. Its 60 Hz, 230/460 V, 3-phase compatibility supports flexible drive integration, delivering reliable performance across new builds and line upgrades. Designed to lower total cost of ownership, the motor delivers consistent torque, long service life, and easier maintenance in demanding washdown environments.
Product Information
Extended Description
7BCFSWDM41902T ABB: Washdown Motor 20 Hp 230 V (CFSWDM41902T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1180RPM,3PH,60HZ,284TC,4072M,T
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDM41902T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
40LYE429: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM41902T
Gross Volume
14448.906 in³
Gross Weight
493 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
20HP,1180RPM,3PH,60HZ,284TC,4072M,TEFC,F
Made To Order
No
Medium Description
Food Safe Washdown, 20 HP, 1200 RPM, Frame Size 284Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CFSWDM41902T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
78 %
Product Name
Food Safe Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
493 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
52 A | 26 A
Rated Efficiency
91.70 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
20 HP, 1200 RPM, Frame Size 284Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 20 HP, 1180 RPM, 60 Hz, 3-phase design. Business impact: Strong, reliable torque for conveyors, pumps, and mixers, enabling consistent throughput and shorter startup cycles. Application: food processing lines and CIP-enabled equipment. Feature: TEFC enclosure and stainless steel frame. Business impact: Superior washdown resistance and corrosion protection, reducing maintenance and downtime. Application: hygienic conveyors and rinse-intensive process areas. Feature: 284TC frame and foot-mounted base. Business impact: Easy integration with standard couplings and gear reducers, simplifying retrofits and new installations. Application: retrofit projects and new construction in industrial facilities. Feature: Premium efficiency (91.70%) and 3-phase direct-on-line starting. Business impact: Lower energy costs, improved system performance, and simplified drive control. Application: long-running processing lines and energy-conscious upgrades. Feature: Certifications CSA, UR, and NEMA Premium. Business impact: Regulatory compliance, safer operation, and reduced risk in regulated environments. Application: food, beverage, and other sanitary manufacturing environments. Feature: Stocked at multiple warehouses with 0 day lead time. Business impact: Faster procurement cycles and reduced project delays. Application: equipment upgrades and capital projects with tight timelines.
Get a Quick Quote for a ABB 7BCFSWDM41902T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM41902T?
Enquire Now
FAQs
The motor supports both 230 V and 460 V configurations in a 3-phase, 60 Hz setup. This flexibility enables straightforward integration with common plant drives and enables seamless upgrades or retrofits without needing separate motor variants. For best results, pair with a drive or soft starter suitable for 20 HP applications and CIP-capable washdown lines.
With a 284TC frame and TEFC enclosure, ensure compatible mounting, bolting, and shaft alignments for horizontal, foot-mounted installations. Confirm drive-end flange type (C-face) and verify mounting hardware for a tight seal against wash-down chemical exposure. Use stainless-steel fasteners and corrosion-resistant corrosion protection to maximize service life in sanitary environments.
Yes. The stainless-steel frame and TEFC enclosure are designed for frequent washdowns and CIP cycles common in food processing. The 60 Hz, 3-phase design provides stable torque and reliable start-up, while the 20 HP output supports conveyors and pumps typical of hygienic processing lines, reducing downtime and maintenance costs over the motor’s lifetime.
The model carries CSA, UR, and NEMA Premium certifications, along with CSA EEV testing, indicating electrical safety, energy efficiency, and performance standards appropriate for regulated manufacturing environments. These certifications help with code compliance, risk management, and long-term reliability in food, beverage, and packaging facilities.
The combination of premium efficiency (91.70%), washdown-ready stainless steel construction, and a TEFC enclosure reduces energy use and maintenance visits. With 0-day lead time and stock at multiple warehouses, project timelines shorten, delivering faster time-to-value and lower total cost of ownership in capital projects and plant upgrades.
