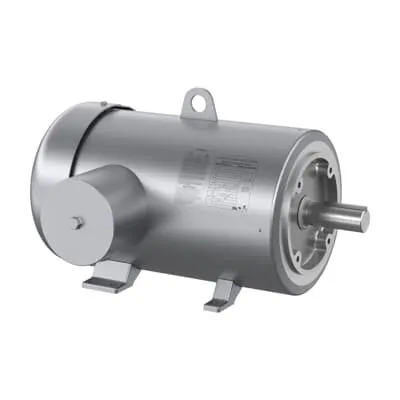

ABB 7BCFSWDM41906T-E Washdown Motor - Premium Efficiency TEFC
Part Number: 7BCFSWDM41906T-E
Quick Summary
ABB 7BCFSWDM41906T-E washdown motor delivers reliable, hygienic drive for food processing and packaging lines. Operators struggle with contamination risks and downtime in high-cleaning environments; this motor minimizes splash zones and simplifies wipe-down routines. Certified for CSA EEV, UR, and NEMA Premium efficiency, it also features a stainless steel frame, TEFC enclosure, and a 40 °C ambient rating. Its 230/460 V, 60 Hz, 3-phase power and 256TC frame enable seamless integration into existing lines while boosting uptime and energy efficiency. For food-grade reliability and easy procurement, this motor pairs with Baldor-Reliance branding and robust support, helping procurement teams reduce total cost of ownership through dependable performance and standardized parts.
Product Information
Extended Description
7BCFSWDM41906T-E ABB: Washdown Motor 20 Hp 230 V (CFSWDM41906T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3540RPM,3PH,60HZ,256TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDM41906T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
39LYE646: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM41906T-E
Gross Volume
14448.906 in³
Gross Weight
133.81 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
20HP,3540RPM,3PH,60HZ,256TC,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 20 HP, 3600 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CFSWDM41906T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
90 %
Product Name
Food Safe Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
133.81 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A | 23 A
Rated Efficiency
91 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Food-safe build with a stainless steel frame and TEFC enclosure delivers corrosion resistance in washdown environments, reducing maintenance costs and extending service life for meat, dairy, and beverage lines. This translates to lower downtime and more consistent production throughput, especially in high-pressure cleaning cycles. The motor delivers 20 HP at 3540 r/min on 230/460 V, 60 Hz, 3-phase power, with a premium efficiency rating of 91% and a direct-on-line (DOL) starting method, which together reduce energy usage and soft-start wear while simplifying electrical design. With a 256TC frame, C-face mounting and horizontal orientation, it integrates smoothly into existing Baldor-Reliance installations and aligns with standard spare parts, minimizing installation time and risk of misfit components. Built for continuous duty, this motor supports long-run operation with a 40 °C ambient rating, sealed bearings, and an insulation class H, delivering reliable performance in demanding environments. Its foot-mounted base type and 3-phase design support scalable line upgrades, while a 1.00 service factor provides margin for peak loads and torque requirements in packaging, conveying, and pump applications. In addition, the motor’s documented certifications and compliance enable easier procurement, audits, and traceability, helping engineering teams meet stringent food-safety and industrial standards without compromising on throughput.
Get a Quick Quote for a ABB 7BCFSWDM41906T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM41906T-E?
Enquire Now
FAQs
The model operates on typical industrial 230/460 V, 60 Hz 3-phase power, making it easy to integrate into existing electrical architectures. With a 256TC frame and C-face mounting, it fits standard Baldor-Reliance assemblies and supports direct-on-line starting, reducing the need for specialized soft-starters in many lines.
Its stainless steel frame and TEFC enclosure deliver superior corrosion resistance and protection against washdown sprays. The 40 °C ambient rating, food-safe branding, and compliance with industry certifications ensure reliable operation in high-cleaning cycles typical of dairy, meat, and beverage lines.
The motor carries CSA EEV, UR, and NEMA Premium efficiency designations, along with NEMA design code A and insulation class H. These certifications support regulatory compliance, energy efficiency reporting, and reliability requirements for regulated facilities.
Choose a foot-mounted base with horizontal mounting and C-face drive end flange for straightforward installation. The 256TC frame and 3-phase, 2-pole configuration suit conveyors and pumps, and the direct-on-line starting method simplifies wiring and reduces startup time in busy lines.
With 20 HP, 3540 r/min, 91% efficiency, and a 1.00 service factor, the motor delivers strong torque with lower energy use and reduced thermal strain. The food-safe design minimizes maintenance costs, while stock availability and standard frame sizing shorten lead times, accelerating project ROI on new lines or upgrades.
