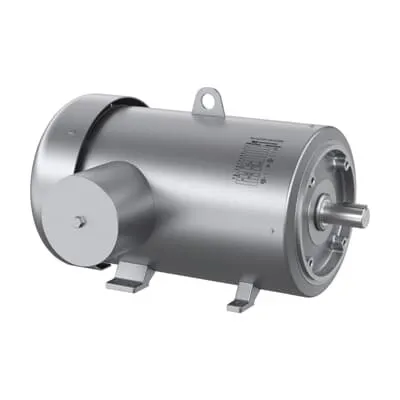

ABB 7BCFSWDM41907T Washdown Motor - Premium Efficiency
Part Number: 7BCFSWDM41907T
Quick Summary
Washdown Motor ABB delivers dependable, hygienic propulsion for food and beverage processing lines. This design helps minimize downtime in sanitary environments by combining a TEFC enclosure with a stainless-steel frame and food-safe construction. It carries NEMA Premium efficiency, CSA EEV listing, and UR certification contexts, ensuring performance meets strict regulatory requirements. With 60 Hz operation at 230/460 V, a 25 HP rating, and a 284TSC frame, it integrates into standard ABB-compatible systems while delivering measurable cost savings and reliability in high-demand production settings. Designed for horizontal, foot-mounted installation and easy cleaning, this motor supports clean-in-place workflows and long-term maintenance efficiency.
Product Information
Extended Description
7BCFSWDM41907T ABB: Washdown Motor 25 Hp 230 V (CFSWDM41907T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
56M 2P TEFC HOR 284TSC S/P9-11 SE A
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDM41907T
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDM41907T
Gross Volume
14448.906 inÂł
Gross Weight
431 lb
Insulation Class
H
Invoice Description
56M 2P TEFC HOR 284TSC S/P9-11 SE ALL SS
Made To Order
No
Medium Description
Food Safe Washdown, 25 HP, 3600 RPM, Frame Size 284Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CFSWDM41907T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
86 %
Product Name
Food Safe Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
431 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
60 A | 30 A
Rated Efficiency
91.70 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
25 HP, 3600 RPM, Frame Size 284Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Stainless steel frame and TEFC enclosure provide robust corrosion resistance in washdown environments. Benefit: Extends motor life and reduces maintenance cycles, improving uptime in sanitary production lines. Application: Food and beverage processing where frequent sanitization is required. Feature: 284TSC frame with 25 HP, 3-phase, 60 Hz, 230/460 V operation. Benefit: Delivers versatile power with standard voltage options, simplifying integration into existing plant electrical networks and reducing spare part variety. Application: Conveyor and mixer drives in mixed-voltage facilities.Feature: 1.15 service factor and 3530 r/min rated speed (3600 r/min synchronous). Benefit: Provides sizing margin for transient loads and startup surges, lowering the risk of nuisance tripping. Application: Continuous duty applications with variable loads, such as packaging lines.Feature: Ball bearing 6311, shaft diameter 1.63 in. Benefit: Enhanced mechanical durability and smoother operation under washdown conditions, reducing wear and downtime. Application: Heavy-duty drive applications where reliability is critical.Feature: Food Safe Washdown designation and stainless steel enclosure. Benefit: Improves sanitation compliance and reduces cleaning costs, supporting GMP/HAACP workflows. Application: Pharmaceutical and dairy environments requiring easy surface cleanability.Feature: Certifications and regional approvals (NEMA Premium, CSA EEV, UR). Benefit: Ensures regulatory compliance and faster procurement approvals, delivering predictable ROI. Application: Global manufacturing plants needing validated performance standards.
Get a Quick Quote for a ABB 7BCFSWDM41907T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDM41907T?
Enquire Now
FAQs
This unit is designed as a foot-mounted, horizontal motor with a 284TSC frame. For installation, ensure proper mounting feet alignment, verify surface cleanability, and provide adequate clearance for ventilation and washdown access. Use 60 Hz power supply with dual voltage compatibility (230/460 V) and follow safe cleaning protocols to maintain the TEFC enclosure’s integrity.
The motor carries NEMA Premium efficiency, CSA EEV listings, and UR recognition, along with general NEMA standards. These certifications support energy efficiency targets, safety compliance, and regulatory approvals in North America and other markets, facilitating procurement and regulatory audits in sanitary manufacturing environments.
Yes. It features a Food Safe Washdown rating, TEFC enclosure, and a stainless-steel frame designed to withstand repeated cleaning and sanitization. The 25 HP, 3-phase design operates at 60 Hz with a robust 284TSC frame, making it ideal for conveyors, mixers, and other sanitary equipment in food and beverage lines.
The motor offers a 1.15 service factor and a rated speed of 3530 r/min (3600 r/min synchronous). This provides a safety margin against overloads and accommodates brief transient demands without derating performance, which is beneficial for continuous-duty equipment like packaging lines and mixers in high-demand production environments.
Regular inspection of the TEFC enclosure seals, bearings (6311 ball), and shaft wear is advised. Stainless-steel frame and corrosion-resistant components reduce cleaning-related downtime. Keeping a spare 284TSC-compatible drive system and bearing kit on hand minimizes downtime, while the motor’s efficiency and durable construction contribute to lower energy and maintenance costs over the asset life.
