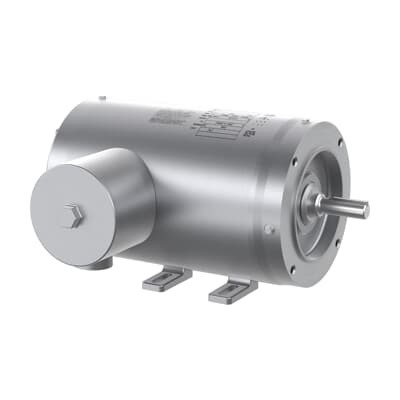

ABB 7BCFSWDNM3554-4E Motor - Premium Efficiency
Part Number: 7BCFSWDNM3554-4E
Quick Summary
ABB 7BCFSWDNM3554-4E motor delivers reliable 1.5HP performance for continuous conveyor and pump drives in demanding industrial environments. Spikes in downtime due to overheating, misalignment, or exposure to harsh surroundings are common pain points, but this unit is built to endure. It carries NEMA Premium efficiency, CURUSEEV, and WEEE certifications, supporting energy compliance and sustainable operations. Designed for 460 V three-phase systems, it features a stainless-steel frame and a TE enclosure, enabling straightforward integration into existing bases and washdown-friendly installations. With a 1.15 service factor and direct-on-line start, it balances performance with lower downtime and predictable maintenance, delivering tangible business value.
Product Information
Extended Description
7BCFSWDNM3554-4E ABB: 460 V (CFSWDNM3554-4E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1765RPM,3PH,60HZ,56C,3540M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDNM3554-4E
Certification Agency
CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
Undefined
Global Commercial Alias
CFSWDNM3554-4E
Gross Weight
59 lb
Insulation Class
H
Invoice Description
1.5HP,1765RPM,3PH,60HZ,56C,3540M,TENV,F1
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Power Factor
72 %
Product Name
WD - Stainless
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
59 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.95 A
Rated Efficiency
86.5 %
Replaced Product ID (OLD)
7B35E4735K982
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature: 1.5HP, 1765RPM, 3PH, 60Hz, 460V rating. Business Impact: Delivers stable torque and reliable start-up for mid-load conveyors and pump lines, reducing process variations. Application: Ideal for packaging lines and material handling where consistent speed matters and uptime is critical. Long-tail keywords: 460V three-phase motor, 56C frame, direct-on-line start. Feature: Stainless steel frame and TE enclosure. Business Impact: Enhances corrosion resistance and durability in washdown or harsh environments, extending motor life and lowering replacement costs. Application: Food processing, beverage lines, and chemical processing where cleanliness and resilience are required. Long-tail keywords: stainless frame motor, TE enclosure durability, washdown-compatible motor. Feature: Enclosure Type TENV with robust bearings. Business Impact: Sealed bearings and a Totally Enclosed Non-Ventilated design minimize contamination and maintenance, improving mean time between outages. Application: Outdoor or factory-floor installations with varying ambient conditions. Long-tail keywords: sealed bearing motor, TENV enclosure, maintenance reduction. Feature: Direct on Line starting and service factor 1.15. Business Impact: Simple drive control reduces hardware costs while tolerating overload events, improving line uptime under peak demand. Application: High-start torque applications like feeders and mixers. Long-tail keywords: DOL starting motor, service factor 1.15, overload tolerance. Feature: Foot-mounted 56C frame and 56C caliber compatibility. Business Impact: Easy retrofit and cross-compatibility with existing bases and mounting hardware, lowering installation time. Application: Retrofit projects and new lines with standard mounting footprints. Long-tail keywords: 56C frame compatibility, foot-mounted motor, installation efficiency.
Get a Quick Quote for a ABB 7BCFSWDNM3554-4E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDNM3554-4E?
Enquire Now
FAQs
This model is designed as a foot-mounted motor with horizontal mounting orientation and a mounting position of F1. It easily fits standard base plates and can be integrated into existing machinery footprints without custom adapters, supporting quick retrofits and new line installations.
Key specs include 1.5HP at 1765RPM, 3-phase operation, 460 V, 60 Hz, 1.95 A rated current, and a service factor of 1.15. It uses a 56C frame with a direct-on-line starting method and 6205 sealed bearings for reliable operation.
Yes, the motor features a stainless-steel frame and TE enclosure, which provide enhanced corrosion resistance and durability in challenging environments. While it is well-suited for many washdown scenarios, verify system-specific IP ratings and cleaning protocols for your exact application.
The unit carries NEMA Premium Efficiency certification alongside CURUSEEV and WEEE labeling, ensuring energy efficiency compliance and adherence to global environmental directives, which can support green procurement programs and regulatory alignment.
With a sealed bearing design and premium efficiency, maintenance cycles are extended and energy costs are reduced. The 1.15 service factor provides tolerance for overload events, while stock availability and a straightforward installation path shorten downtime during replacements.
