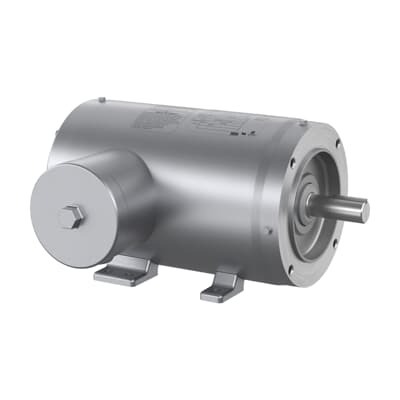

ABB 7BCFSWDNM3554T-E Washdown Motor - Premium Efficiency
Part Number: 7BCFSWDNM3554T-E
Quick Summary
Washdown Motor for sanitary environments delivers reliable 1.50 HP, 230 V three‑phase performance for food processing and packaging lines. This design addresses downtime and sanitation challenges by offering a robust enclosure and corrosion-resistant frame. The motor carries Premium Efficiency (NEMA Premium) certification with CSA EEV and UR listings to support regulatory compliance and long-term energy savings. Built for harsh washdown environments, it also leverages a stainless steel frame and C‑Face mounting to simplify installation, extend service life, and reduce total cost of ownership in high‑duty operations.
Product Information
Extended Description
7BCFSWDNM3554T-E ABB: Washdown Motor 1.50 Hp 230 V (CFSWDNM3554T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1765RPM,3PH,60HZ,145TC,3540M,
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDNM3554T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4742: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDNM3554T-E
Gross Volume
3496.049 in³
Gross Weight
59 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
1.5HP,1765RPM,3PH,60HZ,145TC,3540M,TENV
Made To Order
No
Medium Description
Food Safe Washdown, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CFSWDNM3554T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
77 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
59 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.2 A | 2.1 A
Rated Efficiency
86.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35E4742Z820G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Design for washdown sanitation translates to lower maintenance costs and fewer sanitation incidents, thanks to a stainless steel frame and TENV enclosure that resist corrosion and are easy to clean. The result is improved uptime in food processing and packaging lines, with a reliable 1.50 HP output and 60 Hz operation that align with standard plant electricals, reducing commissioning time. The motor’s 145TC frame, 0.88 inch shaft diameter, and C‑Face drive end flange provide straightforward compatibility with existing Baldor‑Reliance mounts and drives, enabling quick retrofits or new builds. Premium Efficiency (NEMA Premium) reduces energy consumption and operating costs, while the 1.15 service factor supports sustained performance under typical plant loads. Stocked at multiple warehouses with zero lead time minimizes production disruption when demand spikes.
Get a Quick Quote for a ABB 7BCFSWDNM3554T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDNM3554T-E?
Enquire Now
FAQs
The 7BCFSWDNM3554T-E features a C‑Face drive end flange and a 145TC frame designed for straightforward mounting. It is foot-mounted and supports horizontal orientation (F1), enabling quick retrofits to existing Baldor‑Reliance installations and simple integration with standard drives and couplings.
The motor uses a stainless steel frame and a TENV enclosure, specifically designed for harsh washdown conditions. Its food‑safe washdown designation, combined with elevated corrosion resistance and cleanability, helps maintain sanitation standards while delivering reliable 1.50 HP performance at 230/460 V in 3‑phase operation.
This model provides Premium Efficiency (NEMA Premium) with an efficiency rating of about 86.5% and a service factor of 1.15. It runs at 60 Hz with a rated current around 4.2 A (max) and 2.1 A (nominal under light load), delivering predictable performance for continuous duty in 3‑phase systems.
Lead time is listed as 0 day, with stock at multiple warehouses (including US and international locations). The product is actively sold and stocked, reducing the risk of delays in production schedules and enabling faster project timelines.
Warranty terms indicate that warranty returns must be handled through proper channels, and stock is positioned to support quick service. Regular maintenance should focus on the 6205 sealed bearings, inspection of the stainless frame, and ensuring the TENV enclosure remains clean to preserve efficiency and longevity.
