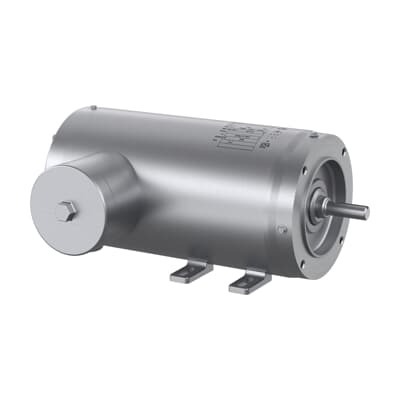

ABB 7BCFSWDNM3558-E-G Washdown Motor - NEMA Premium Efficiency
Part Number: 7BCFSWDNM3558-E-G
Quick Summary
Washdown Motor 2 HP delivers hygienic, reliable drive for food processing lines and other washdown environments. In real-world plants, damp conditions and harsh cleaning cycles can shorten motor life and trigger unplanned downtime. This unit uses a Food Safe Washdown design with a 56C frame, stainless-steel construction, and a TE N V enclosure rated for 40 °C ambient to withstand frequent washdowns. It carries CSA EEV, UR, and NEMA Premium Efficiency certifications, reinforcing compliance and energy performance. For procurement and maintenance teams, the combination of premium efficiency, direct-on-line starting, and robust mounting options translates into lower operating costs, reduced downtime, and easier stocking. This ABB motor is a practical choice for hygienic processing and packaging lines seeking reliability and long-term value.
Product Information
Extended Description
7BCFSWDNM3558-E-G ABB: Washdown Motor 2 Hp 230 V (CFSWDNM3558-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,56C,3546M,TENV
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFSWDNM3558-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDNM3558-E-G
Gross Volume
3496.049 inÂł
Gross Weight
63 lb
Insulation Class
H
Invoice Description
2HP,1760RPM,3PH,60HZ,56C,3546M,TENV,F1,N
Made To Order
No
Medium Description
Food Safe Washdown, 2 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (CFSWDNM3558-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
78 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
63 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
88.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35E6048Z811G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Shaft Grounding
Shaft Grounding
Short Description
2 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: 2 HP output with 3-phase, 60 Hz operation delivers solid torque and consistent speed under continuous load. Business Impact: Reduces cycle times and improves process stability, translating to higher line throughput and lower energy waste. Application: Conveyor belts, mixers, and mixers in food and beverage lines where consistent power is critical. Feature: Food Safe Washdown design with stainless-steel frame and TE N V enclosure. Business Impact: Resists corrosion and cleansing agents, extending service intervals and lowering maintenance costs. Application: Dairy, meat processing, and other clean-in-place environments requiring frequent washing. Feature: C-Face drive end flange and foot-mounted base with horizontal mounting and F1 position. Business Impact: Eases retrofit and new installations with universal mounting compatibility, reducing installation time and parts inventory. Application: Packaging lines and sanitary process equipment retrofits. Feature: Premium efficiency rating of 88.50% and service factor 1.15. Business Impact: Lowers energy costs while maintaining reliability under peak loads; supports regulatory compliance and green initiatives. Application: High-duty, continuous operation in demanding facilities. Feature: Direct on line starting and 0 day lead time stock availability. Business Impact: Fast commissioning and reduced downtime during upgrades or expansions. Application: Time-sensitive deployments in North American and international facilities; minimizes project duration. Feature: 56C frame, 0.63 in shaft, 6205 bearings, and 40 °C ambient tolerance. Business Impact: Robust mechanicals minimize unexpected failures and maintenance cycles; suitable for washdown environments. Application: Food processing, beverage packaging, and pharmaceutical supply chains.
Get a Quick Quote for a ABB 7BCFSWDNM3558-E-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDNM3558-E-G?
Enquire Now
FAQs
This motor is designed for dual voltage operation at 230 V or 460 V in a three-phase, 60 Hz system. It supports direct-on-line starting and provides a rated current of approximately 5.6 A at 230 V or 2.8 A at 460 V, aligning with common North American and global industrial power standards for quick, straightforward integration.
The stainless-steel frame with a TE N V enclosure is built to withstand frequent washdowns and chemical cleaners, helping prevent corrosion and contamination. This design reduces maintenance cycles, extends motor life in wet environments, and supports compliant, hygienic production in food, beverage, and pharmaceutical facilities.
This model carries CSA EEV, UR, and NEMA Premium Efficiency certifications. CSA EEV and UR validations support electrical safety and reliability in industrial settings, while NEMA Premium Efficiency indicates energy-efficient performance, helping lower operating costs and meet sustainability requirements.
The unit uses a C-Face drive end flange with a foot-mounted base, supporting horizontal mounting in the F1 position. A 56C frame and 0.63 in shaft diameter simplify mechanical coupling, while shaft grounding and stainless-steel construction enhance durability in washdown environments. Ensure compatibility with your drive, coupling, and mounting hardware.
With 2 HP output, 1750 r/min rated speed at 60 Hz, and a service factor of 1.15, the motor delivers strong torque and reliable operation. An efficiency of 88.50% reduces energy costs, and direct-on-line starting minimizes startup losses. Combined with fast stocking and robust construction, this supports favorable total cost of ownership in sanitary production lines.
