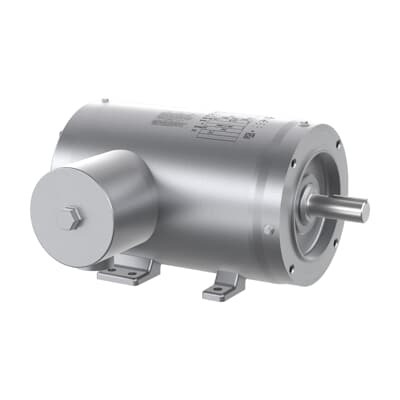

ABB 7BCFSWDNM3558T-4E Motor - Premium Efficiency
Part Number: 7BCFSWDNM3558T-4E
Quick Summary
ABB 7BCFSWDNM3558T-4E motor is a compact, reliable solution delivering 2 HP at 460 V for three-phase industrial drives. It helps engineers reduce energy costs while maintaining peak performance in demanding lines. This model carries Premium Efficiency ratings with NEMA design B and WEEE compliance to support compliant, long-lasting operation. Its stainless-steel frame and TENV enclosure provide robust performance in challenging environments, while straightforward DOL starting supports quick, trouble-free commissioning across existing Baldor-Reliance systems.
Product Information
Extended Description
7BCFSWDNM3558T-4E ABB: 460 V (CFSWDNM3558T-4E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,143TC,3546M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDNM3558T-4E
Certification Agency
CURUSEEV | NEMA_PREMIUM | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
Undefined
Global Commercial Alias
CFSWDNM3558T-4E
Gross Weight
63 lb
Insulation Class
H
Invoice Description
2HP,1760RPM,3PH,60HZ,143TC,3546M,TENV,F1
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Power Factor
80 %
Product Name
WD - Stainless
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
63 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.65 A
Rated Efficiency
86.5 %
Replaced Product ID (OLD)
7B35E4742K983
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature: Premium Efficiency with a high power factor minimizes energy waste and heat generation, lowering operating costs and extending motor life. Business Impact: Reduced energy bills and cooler equipment promote longer service intervals and less cooling load in facilities. Application: Suitable for conveyors, pumps, and fans in continuous-process lines where efficiency directly improves total cost of ownership. Feature: 143TC frame in a stainless-steel motor frame with a TENV enclosure provides corrosion resistance and durable performance. Business Impact: Enhanced washdown compatibility and longer equipment life in aggressive environments. Application: Food processing, chemical handling, and general manufacturing with stringent cleanliness and reliability needs. Feature: Direct-on-line starting and 60 Hz, 460 V three-phase operation simplifies electrical installation and minimizes soft-start requirements. Business Impact: Faster commissioning, reduced control complexity, and lower maintenance costs. Application: Replacement in legacy ABB Baldor-Reliance platforms and new line installations. Feature: Sealed 6205 bearings and a 0.88 in shaft diameter deliver dependable mechanical performance with low maintenance. Business Impact: Lower downtime, easier alignment, and improved vibration resistance. Application: High-load conveyor drives and pumping applications with continuous duty. Feature: with 40 °C ambient tolerance, NEMA B design, and 86.5% efficiency targets ensure reliable performance under typical plant conditions. Business Impact: Compliance with industry standards and predictable energy usage across shifts. Application: general-purpose industrial motors in mixed duty environments. These integrated capabilities reinforce compatibility with existing ABB systems and provide a solid foundation for scalable automation projects.
Get a Quick Quote for a ABB 7BCFSWDNM3558T-4E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDNM3558T-4E?
Enquire Now
FAQs
The motor is designed as a foot-mounted unit with a 143TC frame and a C-face drive end flange, featuring a 0.88 in shaft diameter. It is a 3-phase, 60 Hz machine that starts Direct on Line, making it compatible with standard industrial VFDs and existing Baldor-Reliance drive systems while simplifying installation and alignment.
This is a 2 HP, 460 V, 3-phase motor with a nominal speed of 1760 rpm and a synchronous speed of 1800 r/min. It uses a 143TC frame, a TENV enclosure, insulation class H, and a service factor of 1.15. It operates at 40 °C ambient with a power factor around 80% and efficiency near 86.5%.
Yes, the motor features a stainless-steel frame and a TENV enclosure, designed for durability in moderate washdown scenarios. While not IP-rated in the data provided, its corrosion-resistant construction and robust bearings support continuous operation in many manufacturing settings, including conveyors and pumps, when paired with appropriate seals and plant practices.
The motor carries NEMA Premium Efficiency certification, CURUSEEV, and WEEE compliance, reflecting high energy efficiency and regulatory conformity. Additional indicators include US origin, stock availability for rapid fulfillment, and adherence to industry norms such as NEMA Design B and 60 Hz operation.
Warranty notes indicate products under warranty must be returned. The unit is stocked at multiple warehouses (including US and international locations), with a 0-day lead time listed for availability. This combination supports quick replacement, reduced downtime, and favorable total cost of ownership for maintenance and repairs.
