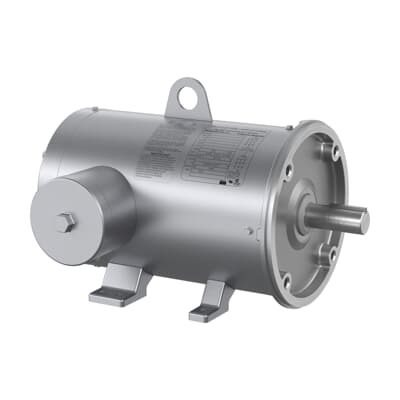

ABB 7BCFSWDNM3610T-E Washdown Motor - Premium Efficiency
Part Number: 7BCFSWDNM3610T-E
Quick Summary
ABB 7BCFSWDNM3610T-E washdown motor delivers reliable, sanitary-ready torque for food and beverage equipment. In washdown environments, corrosion risk, frequent hose-downs, and wet process lines can drive unexpected downtime and higher maintenance costs. This model carries Premium Efficiency, CSA EEV, and UR recognition, reinforcing compliance with energy and safety standards. Built for 60 Hz operation at 230/460 V with a stainless-steel frame, 182TC footprint, and a C-Face mounting flange, it cleans easily, resists corrosion, and fits compact OEM packages. For engineers and integrators, the combination of robust construction and documented performance translates into lower lifecycle costs, predictable maintenance windows, and improved uptime across production lines.
Product Information
Extended Description
7BCFSWDNM3610T-E ABB: Washdown Motor 3 Hp 230 V (CFSWDNM3610T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3500RPM,3PH,60HZ,182TC,3646M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CFSWDNM3610T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYR551: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDNM3610T-E
Gross Volume
5274.135 in³
Gross Weight
96 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
3HP,3500RPM,3PH,60HZ,182TC,3646M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 3600 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CFSWDNM3610T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
Food Safe Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
96 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
89.50 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 3600 RPM, Frame Size 182Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Stainless steel frame and a TENV enclosure deliver corrosion resistance and easy cleanability, reducing cleaning cycles and maintenance costs. In real-world lines such as conveyors and CIP skids, this translates to less downtime and higher throughput. The motor’s rated 3 HP with a 3500 r/min speed at 60 Hz provides reliable, consistent performance in continuous operation, supporting steady production without sacrificing efficiency. Premium Efficiency (0.92 PF, 89.50% rated efficiency) lowers energy consumption and reduces heat load, contributing to cooler operation during long shifts and lower cooling costs in enclosed spaces. C-Face and foot-mount options, plus a 182TC frame, simplify installation and retrofit alongside existing ABB drives and control panels. The sealed 6206 bearings and a food-safe, washdown-ready enclosure minimize maintenance intervals and extend service life in harsh environments. Direct-on-line starting and 3-phase input enable straightforward control integration, minimizing wiring complexity and startup time, while keeping downtime to a minimum. Overall, this motor aligns with continuous-duty applications in food processing, packaging, and material handling where hygiene, reliability, and energy efficiency are critical.
Get a Quick Quote for a ABB 7BCFSWDNM3610T-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDNM3610T-E?
Enquire Now
FAQs
For installation, position the motor for horizontal mounting with a C-Face flange and consider a foot-mounted option when space allows. The 182TC frame size fits standard misalignment allowances, and the stainless-steel frame supports frequent washdowns. Ensure proper clearance for cleaning tools and adequate ventilation to manage heat with the enclosure rated TENV. Use proper conduit entries for three-phase 230/460 V supply and verify direct-on-line starting is compatible with the downstream drive strategy.
The motor is a three-phase unit rated for 230 V or 460 V, operating at 60 Hz with a rated speed of 3500 r/min. Wire it to a three-phase supply using appropriate circuit protection and a direct-on-line starter unless a VFD is employed for speed control. The 3 HP output pairs with a 0.92 PF and 89.50% efficiency, supporting energy-conscious operation in continuous-duty environments.
Yes. The Food Safe Washdown design, stainless-steel frame, and TENV enclosure make it well-suited for food processing conveyors and CIP systems. Certifications including CSA EEV, NEMA Premium, and UR recognition support compliance with energy and safety standards often required in USDA-regulated facilities, helping to meet facility hygiene and regulatory expectations without compromising performance.
The motor carries CSA EEV, NEMA Premium, and UR recognitions. CSA EEV indicates electrical safety and reliability, NEMA Premium ensures energy efficiency benchmarks, and UR marks provide recognition for compliance with safety standards. These certifications help reduce risk in procurement, simplify supplier qualification, and support regulatory alignment across health, safety, and environmental programs.
Maintenance benefits come from sealed bearings (6206) and a robust stainless-steel frame designed for repeated washdowns, reducing corrosion-related downtime. The device’s high efficiency (0.92 PF, 89.50%) lowers operating costs over the motor’s life, contributing to a favorable ROI. Expect lower cleaning frequencies, fewer belt or bearing replacements due to better enclosure protection, and easier lifecycle management when integrated with existing ABB controls.
