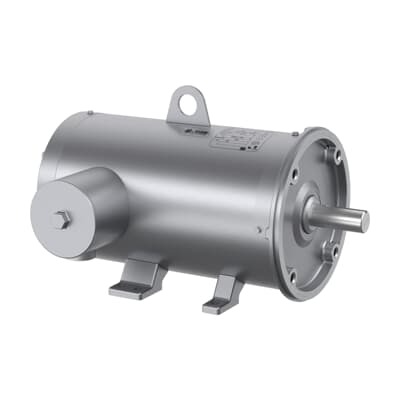

ABB 7BCFSWDNM3611T-E-G Washdown Motor - Premium Efficiency
Part Number: 7BCFSWDNM3611T-E-G
Quick Summary
Washdown motor performance from ABB delivers reliable, hygienic power for food and beverage processing lines. Engineers contend with corrosion, contamination, and downtime in washdown environments; this motor's stainless frame, C-face mounting, and TENV enclosure help minimize those risks while simplifying cleaning. Certifications include CSA EEV, UR, and NEMA Premium efficiency, underscoring compliance with industry standards and contributing to lower operating costs over the motor’s life. By combining a 3 HP rating with 60 Hz operation, 230/460 V versatility, and a 182TC frame, it delivers scalable performance for fast-moving production lines. In practice, this translates to reduced energy waste, simpler spares management, and improved uptime—supporting a leaner, more reliable manufacturing operation.
Product Information
Extended Description
7BCFSWDNM3611T-E-G ABB: Washdown Motor 3 Hp 230 V (CFSWDNM3611T-E-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,3PH,60HZ,182TC,3646M,TE
Ambient Temperature
40 °C
Bearing
6206
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFSWDNM3611T-E-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CFSWDNM3611T-E-G
Gross Volume
5274.135 inÂł
Gross Weight
101 lb
Insulation Class
H
Invoice Description
3HP,1750RPM,3PH,60HZ,182TC,3646M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (CFSWDNM3611T-E-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
79 %
Product Name
Food Safe Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
101 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8 A | 4 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Food Safe Washdown design uses a stainless steel frame and 182TC construction with C-face mounting, delivering durable, cleanable surfaces in wet environments. Business Impact: Reduces corrosion risk and simplifies sanitation routines, improving uptime and compliance in hygienic facilities. Application: Ideal for meat, poultry, dairy, and beverage processing lines where frequent washdowns occur. Feature: Efficient 3 HP motor with 1750 rpm at 60 Hz and 89.50% efficiency, PF 0.79. Business Impact: Lowers energy consumption and reduces heat generation, extending motor life in demanding plants. Application: Suitable for continuous operation in packaging and processing lines with steady load profiles. Feature: Rugged enclosure Type TENV with foot-mounted, horizontal mounting and a 1.13 inch shaft. Business Impact: Enhanced protection against washdown exposure and easier alignment/install, saving installation time. Application: Factory floors where space is constrained and reliability matters. Feature: Premium insulation class H, 6206 bearings, and direct-on-line starting. Business Impact: Long-term reliability under continuous duty, reduced maintenance cycles, and consistent performance. Application: High-usage environments such as conveyors and mixers in food processing. Feature: 230 V / 460 V, 60 Hz, 3-phase, 182TC frame, 4P design with 1.15 service factor. Business Impact: Flexible electrical integration across facilities, simplified spare parts planning, and scalable deployment. Application: Plants with mixed-voltage infrastructure seeking a single, adaptable motor solution.
Get a Quick Quote for a ABB 7BCFSWDNM3611T-E-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFSWDNM3611T-E-G?
Enquire Now
FAQs
The motor is designed for foot-mounted, horizontal installation with a C-face drive end. Its 182TC frame and 1.13 in shaft diameter enable straightforward alignment with standard couplings and pulleys. It supports direct-on-line starting on 3-phase 60 Hz systems, and can be integrated into existing 230/460 V circuits without special adapters.
Key specs include 3 horsepower, 1750 rpm rated speed (60 Hz, 4-pole design), 230/460 V, 3-phase operation, service factor 1.15, efficiency 89.50%, and power factor around 0.79. Frame size is 182TC, with a stainless steel frame and TENV enclosure suitable for washdown applications.
Yes. Its food-safe stainless steel frame, C-face mounting, and TENV enclosure are designed for high-hygiene, washdown conditions typical in food and beverage processing. Premium efficiency and robust bearings further support continuous operation with reduced maintenance in regulated facilities.
The motor carries CSA EEV, UR, and NEMA Premium efficiency certifications, reflecting compliance with strict electrical safety, energy standards, and performance requirements for industrial equipment used in strict regulatory environments.
Energy efficiency (89.50%) lowers operating costs, while the robust stainless frame and premium insulation extend service life in harsh washdown environments. Direct-on-line starting reduces startup components and downtime. Warranty terms indicate returned-warranty requirements, so ensure compliance with the provider’s warranty policy to maximize uptime and ROI.
