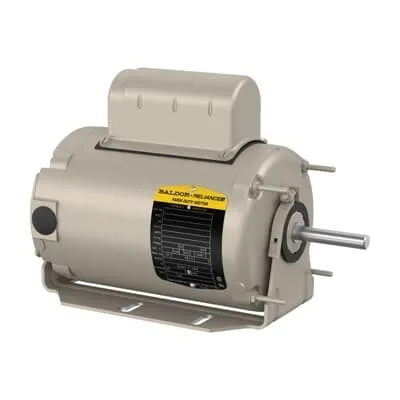

ABB 7BCHC3417A Farm Duty Motor - TEAO
Part Number: 7BCHC3417A
Quick Summary
ABB 7BCHC3417A Farm Duty motor delivers reliable low-speed operation for agricultural and light industrial equipment. When uptime matters in harsh field conditions, you need a motor that tolerates dust, vibration, and temperature swings with minimal maintenance. Certified to CSA and UR, with a NEMA-aligned design, this TEAO single-phase motor supports 115/230 V, 60 Hz operation and 1100 rpm performance. Its resilient mount and compact 48Z frame simplify installation in tight spaces, while a predictable service life translates to lower total cost of ownership and fewer field service calls. This combination of rugged build and smart design supports efficient, compliant operations across farm conveyors, pumps, and small machinery, reinforcing your plant’s reliability and productivity.
Product Information
Extended Description
7BCHC3417A ABB: Farm Duty Motor 0.33 Hp 115 V (CHC3417A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1100RPM,1PH,60HZ,48Z,3421C,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CHC3417A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYK052: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
CHC3417A
Gross Volume
1400.25 inÂł
Gross Weight
26 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.33HP,1100RPM,1PH,60HZ,48Z,3421C,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 0.33 HP, 1200 RPM, Frame Size 48Z, ResilientMount Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (CHC3417A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
48Z
Motor Frame Suffix
Z
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
67 %
Product Name
Farm Duty
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
26 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
54 %
Rated Speed
1100 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.5 in
Short Description
0.33 HP, 1200 RPM, Frame Size 48Z, ResilientMount, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
F
Voltage Rating
115 V | 230 V
Farm Duty design delivers rugged, intermittent-load capability, enabling equipment such as pumps and conveyors to run reliably in agricultural environments. The 0.33 HP output matches small-load drives, improving system efficiency while reducing energy waste. TEAO enclosure reduces maintenance by eliminating internal fans and exposing components to fewer contaminants, increasing mean time between service events. With 1 phase at 115/230 V and 60 Hz, integration into existing plant mains is seamless, lowering wiring complexity and startup risk for new lines. The 48Z frame with resilient mounting minimizes vibration transmission and simplifies mounting alignment, reducing installation time and equipment wear. Regreasable bearings (6203 Ball) support long service life and straightforward lubrication, cutting maintenance costs over the motor’s operational life. Compliance with NEMA standards and CSA/UR certifications helps streamline procurement and regulatory documentation, while the compact size and weight (26 lb) enable flexible placement in compact layouts. Continuous duty operation and a 1100 r/min rated speed deliver dependable torque for steady loads, making this motor a practical fit for pumps, fans, and small conveyors in farm or light-industrial settings.
Get a Quick Quote for a ABB 7BCHC3417A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCHC3417A?
Enquire Now
FAQs
This is a 1‑phase motor designed for 115/230 V at 60 Hz and a direct on line start. Use L1/L2 connections per standard 1P wiring, ensure proper secure mounting of the 48Z frame on a resilient base, and verify alignment with the TEAO enclosure to maintain optimal cooling and vibration control. The design supports straightforward mounting in horizontal orientation with standard shaft alignment.
Yes. The motor is specified for continuous duty with a 60‑minute duty time parameter and a 1100 r/min rated speed (6P). Its TEAO enclosure and resilient mounting help maintain performance under intermittent peak loads typical of pumps and fans in agricultural settings, while minimizing maintenance and downtime.
The ABB 7BCHC3417A carries CSA and UR certifications and adheres to NEMA standards, aiding procurement and regulatory documentation. These certifications support compliance in North American installations and align with typical industrial and agricultural equipment requirements.
The motor uses regreasable bearings (6203 Ball) and is designed for simple lubrication intervals, reducing long-term maintenance costs. TEAO cooling avoids complex enclosure cooling systems, and the resilient mounting further minimizes vibration-related wear, contributing to predictable maintenance planning and lower operating expenses.
Lead time is listed as 0 day, and Stocked At Warehouses include multiple locations, enabling fast fulfillment. Compatible with 115/230 V single-phase power, 60 Hz operation, and a 48Z frame, it integrates smoothly into existing farm or light industrial systems without requiring extensive rewiring or rewiring changes.
