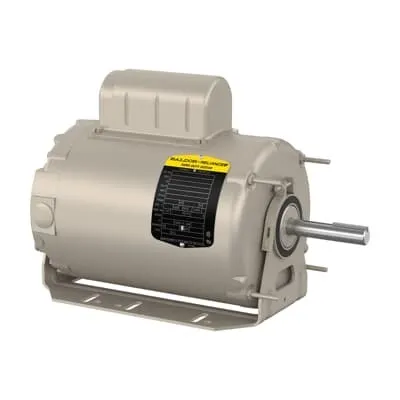

ABB 7BCHC3525A Farm Duty Motor - 0.5 HP, 115V, CSA UR
Part Number: 7BCHC3525A
Quick Summary
ABB 7BCHC3525A Farm Duty Motor is a compact, single-phase drive designed for agricultural equipment and small processing lines. It provides 0.5 HP at 115 V with TEAO enclosure and a resilient mounting base, simplifying installation in dusty barns or outdoor environments. This model addresses common procurement challenges with stock across multiple warehouses, reducing lead times and easing cross-site replacements. Certified to CSA and UR standards and compatible with 1‑phase controls, it supports compliant, cost‑effective farm automation. When paired with compatible drives, the 56Z frame and 60 Hz operation help achieve predictable speeds and reliable startup in variable farm loads. Its regreasable bearings and lubricated design support longer maintenance intervals in harsh conditions.
Product Information
Extended Description
7BCHC3525A ABB: Farm Duty Motor 0.5 Hp 115 V (CHC3525A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5 AIR OVERHP,1130RPM,1PH,60HZ,56Z,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CHC3525A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
35LYH317: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CHC3525A
Gross Volume
3496.049 in³
Gross Weight
40 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5 AIR OVERHP,1130RPM,1PH,60HZ,56Z,3528C
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, .5 HP, 1200 RPM, Frame Size 56Z, ResilientMount Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (CHC3525A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56Z
Motor Frame Suffix
Z
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
92 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
40 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.2 A | 2.6 A
Rated Efficiency
70 %
Rated Speed
1100 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
.5 HP, 1200 RPM, Frame Size 56Z, ResilientMount, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
C
Voltage Rating
115 V | 230 V
Feature: Farm Duty 0.5 HP motor for 115/230 V single-phase operation. Business Impact: Enables straightforward replacement of aging farm drives without rewiring, reducing downtime and inventory complexity. Application: Replaces older conveyors, augers, and fans in barns and processing spaces with minimal disruption. Feature: TEAO enclosure paired with a 56Z frame. Business Impact: Low maintenance and robust performance in dusty, humid environments, boosting uptime. Application: Outdoor equipment, milking sheds, and greenhouse fans. Feature: Resilient mounting and horizontal orientation. Business Impact: Simplified installation on existing bases, reduced vibration, and quieter operation. Application: Feed conveyors and material handling in agricultural settings. Feature: Regreasable bearings and 0.63 in shaft diameter. Business Impact: Longer service intervals and easier lubrication scheduling, lowering maintenance costs. Application: High-use farm duty applications with frequent cycling. Feature: 1‑phase, 115/230 V versatility and 60 Hz readiness. Business Impact: Flexible integration with standard plant controls, enabling quick deployment across multiple sites. Application: Small processing lines and farm equipment fleets seeking plug‑and‑play power.
