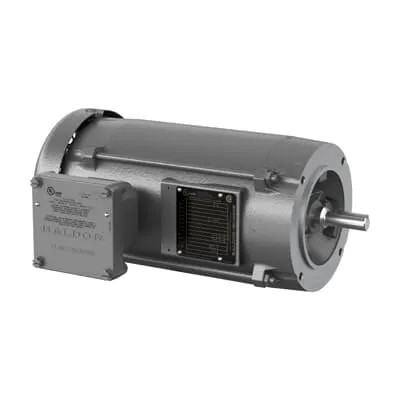

ABB 7BCHC565A General Purpose HVAC - CSA UR
Part Number: 7BCHC565A
Quick Summary
General Purpose HVAC motor delivers reliable 1 HP performance for commercial HVAC systems. Engineers often face downtime and compatibility challenges when sourcing a replacement motor, but this unit is designed for quick integration with single‑phase 115/230 V supply and a TEAO enclosure for straightforward installation. It carries CSA and UR certifications, with NEMA alignment to support safe, compliant operation in North American installations. The design emphasizes reliability, reduced maintenance, and predictable lifecycle costs. By selecting ABB, you gain a stocked, field‑proven solution that simplifies procurement across multiple sites, improving uptime and overall project economics.
Product Information
Extended Description
7BCHC565A ABB: General Purpose HVAC 1 Hp 115 V (CHC565A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1 AIR OVERHP,1090RPM,1PH,60HZ,56,35
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CHC565A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE3460: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CHC565A
Gross Volume
3496.049 in³
Gross Weight
51 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1 AIR OVERHP,1090RPM,1PH,60HZ,56,3534C,T
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 1 HP, 1200 RPM, Frame Size 56, ResilientMount Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (CHC565A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
90 %
Product Name
General Purpose HVAC
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
51 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
10.6 A | 5.3 A
Rated Efficiency
62 %
Rated Speed
1075 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1200 RPM, Frame Size 56, ResilientMount, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
B
Voltage Rating
115 V | 230 V
Feature: 1 HP single‑phase performance at 60 Hz with 115/230 V input in a 56 frame size, TEAO enclosure and resilient mounting. Business Impact: Delivers efficient, versatile operation with quick wiring and installation, maximizing compatibility with HVAC fans and blowers while minimizing on‑site modifications. Application: Suitable for air handling units and rooftop systems in commercial environments, enabling fast replacements and reliable operation. Feature: Resilient Mount and horizontal F1 mounting granting straightforward installation and vibration control. Business Impact: Reduces mounting hardware needs and alignment complexity, cutting install time and startup risk. Application: Ideal for retrofits and OEM assemblies in HVAC rooms. Feature: 6203 sealed bearing with regreasable lubrication. Business Impact: Extends bearing life, lowers maintenance cycles, and sustains performance in dusty or mid‑industrial environments. Application: Long‑term service in air movement equipment with reduced preventive maintenance. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Shortens procurement cycles, minimizes downtime, and supports just‑in‑time maintenance strategies. Application: Critical for refurbishments and service contracts across jurisdictions that require rapid access. Feature: CSA and UR certification with NEMA alignment. Business Impact: Ensures regulatory compliance and safe operation across North American HVAC systems, boosting contractor confidence and retrofit eligibility. Application: Required for governmental and healthcare facilities where standard compliance is mandatory.
Get a Quick Quote for a ABB 7BCHC565A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCHC565A?
Enquire Now
FAQs
The 7BCHC565A motor is a single‑phase model rated for 115 V or 230 V, operating at 60 Hz. This makes it compatible with common HVAC power supplies and simplifies wiring during replacement or retrofits.
Yes. With 1 HP output, TEAO enclosure, and a 56 frame size, the motor is well suited for HVAC fans, air handlers, and similar air‑movement equipment, offering reliable startup and compact installation.
The motor carries CSA and UR certification and is designed to meet NEMA standards, ensuring regulatory compliance and safe operation in North American HVAC applications.
Lead Time is listed as 0 day, and the product is stocked at multiple warehouses, which supports rapid fulfillment and reduces downtime for maintenance or retrofits.
Plan for a resilient mount in a horizontal, F1 mounting orientation. The motor is TEAO, 1‑phase, 60 Hz, with a 56 frame and 0.63 in shaft diameter, enabling straightforward alignment with compatible HVAC equipment.
