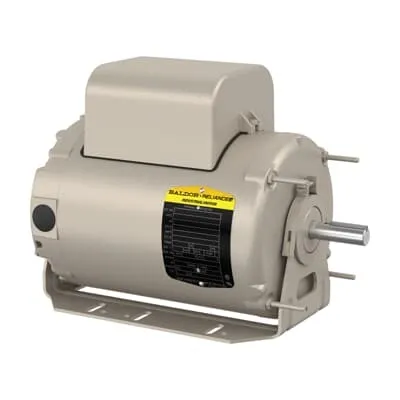

ABB CHL3510A General Purpose HVAC Motor - TEAO
Part Number: 7BCHL3510A
Quick Summary
General Purpose HVAC 1 HP motor delivers reliable drive for commercial ventilation and climate-control systems. Engineers often confront downtime caused by voltage mismatches, mounting challenges, and parts lead times. This ABB design carries CSA and UR certifications and aligns with NEMA design criteria for TEAO enclosures, boosting compliance confidence. With 115/230 V operation and 60 Hz frequency, it fits standard electrical and mechanical packages in building services while reducing inventory complexity. Designed for 56H frame and resilient mounting, it installs quickly in existing housings and is stocked in multiple warehouses with zero-day lead times to speed project delivery. It supports faster commissioning and lower maintenance costs for facilities teams.
Product Information
Extended Description
7BCHL3510A ABB: General Purpose HVAC 1 Hp 115 V (CHL3510A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,1PH,60HZ,56H,3528LC,TEN
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CHL3510A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE3764: Dimension Sheet
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CHL3510A
Gross Volume
3496.049 inÂł
Gross Weight
47 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
F
Invoice Description
1HP,1750RPM,1PH,60HZ,56H,3528LC,TENV,F1
Made To Order
No
Medium Description
General Purpose HVAC, 1 HP, 1800 RPM, Frame Size 56H, ResilientMount Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (CHL3510A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
86 %
Product Name
General Purpose HVAC
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
47 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.6 A | 4.8 A
Rated Efficiency
78 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35E3764L707G1 | 7B35E3764G397G1
Selling Unit of Measure
piece
Service Factor
1.20
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56H, ResilientMount, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V | 230 V
1 HP, 115/230 V single-phase design delivers broad electrical compatibility and enables direct-on-line starting for quick commissioning of air handlers and ventilation fans. This reduces wiring changes and lowers installation labor, translating into shorter project cycles and lower total installed cost in commercial HVAC deployments. The TEAO enclosure minimizes ingress of dust and moisture while simplifying outdoor or semi-exposed installations. For engineers, this means fewer enclosure modifications and easier compliance with enclosure standards during retrofits or new-unit builds. 56H frame size with resilient mounting provides robust mechanical support and vibration isolation. The result is quieter operation, longer bearing life, and reduced maintenance for rooftop units and ceiling-void AHUs. Nominal speed of 1740 r/min with a 1800 r/min synchronous speed offers steady airflow and predictable performance in fans and blowers. The motor is designed for continuous duty with 60 Hz supply, delivering reliable service in demanding HVAC cycles. Regulatory and sourcing advantages include CSA and UR certifications and widespread stocking across U.S. and international warehouses with zero-day lead times. This combination minimizes compliance risk and procurement delays, supporting faster project delivery and easier budgeting. Compatibility and installation advantages include standard mounting dimensions, 56H frame, and 115/230 V operation, enabling smooth integration with Baldor-Reliance and ABB-equipped systems.
Get a Quick Quote for a ABB 7BCHL3510A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCHL3510A?
Enquire Now
FAQs
CHL3510A uses a 56H frame with resilient mounting and a horizontal F1 orientation. It is a 1-phase, 115/230 V, 60 Hz motor with TEAO enclosure and can be Direct On Line started. Plan for standard mounting holes, verify clearance for the TEAO cooling path, and ensure wiring matches the 115/230 V configuration to minimize downtime.
Yes. The CHL3510A is designed for dual voltage operation at 115 V or 230 V with a 60 Hz supply, enabling flexible integration into existing HVAC electrical layouts and reducing the need for custom transformers or adapters.
This motor excels in general HVAC applications such as air handlers, fans, blowers, and light-duty pumps. Its 1 HP rating, single-phase operation, TEAO enclosure, and 56H frame size make it ideal for retrofit projects and new installations in commercial buildings and small industrial spaces.
The CHL3510A carries CSA and UR certifications, aligning with relevant U.S. and international safety standards. It also adheres to NEMA design principles, supports TEAO enclosure configurations, and is listed for 1PH, 60 Hz operation with a 56H frame.
With zero-day lead times and stock in multiple warehouses, procurement and delivery are rapid, reducing downtime. The resilient mounting, TEAO enclosure, and robust 1PH design contribute to longer bearing life, easier maintenance, and lower installation costs over the motor’s lifecycle.
