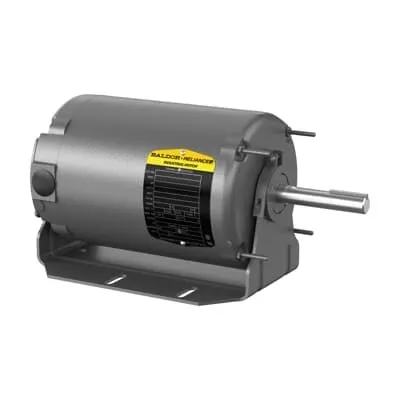

ABB CHM365A Farm Duty Motor - TEAO Enclosure CSA
Part Number: 7BCHM365A
Quick Summary
ABB CHM365A Farm Duty Motor is a compact, 0.5 HP three‑phase motor designed for farm and light industrial ventilation. It helps minimize downtime in demanding environments by delivering reliable starts and steady airflow. With CSA and UR listings and RoHS compliance, it meets key North American safety and environmental standards. The TEAO enclosure, resilient base, and 56YZ frame simplify installation while reducing heat buildup. Rated at 1140 rpm with a 1.25 service factor, it offers solid performance for airflow control and process cooling, while remaining cost‑efficient for ongoing operation.
Product Information
Extended Description
7BCHM365A ABB: Farm Duty Motor 0.5 Hp 230 V (CHM365A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1140RPM,3PH,60HZ,56YZ,3418M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CHM365A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYM249: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CHM365A
Gross Volume
3496.049 inÂł
Gross Weight
28 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,1140RPM,3PH,60HZ,56YZ,3418M,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Direct Drive Fan, 0.5 HP, 1200 RPM, Frame Size 56Yz, ResilientMount Mounting, 3 Phase, TEAO Enclosure, 230/460 V, 60 Hz (CHM365A)
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
55 %
Product Name
Direct Drive Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
28 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.4 A | 1.2 A
Rated Efficiency
72 %
Rated Speed
1140 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1200 RPM, Frame Size 56Yz, ResilientMount, 3 PH, TEAO, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
J
Voltage Rating
230 V | 460 V
The CHM365A uses a direct-drive fan design with a TEAO enclosure, delivering straightforward installation and efficient cooling, which translates to lower enclosure heat and improved motor longevity in farm and process fans. The 56YZ frame with a resilient base reduces vibration transmission and simplifies mounting in restricted spaces, enhancing equipment uptime. With 230/460 V, 3‑phase at 60 Hz, it supports common plant power distribution, enabling quick integration into existing electrical systems and minimizing wiring changes. Regreasable bearings reduce maintenance intervals and extend bearing life, while a 1.25 service factor provides a buffer under heavy load or startup transients, protecting against premature wear. Energy efficiency tops at 72% with a 0.55 power factor, helping reduce operating costs and electrical bills. Regulatory compliance through RoHS and CSA/UR listings adds risk mitigation for procurement teams and accelerates approvals for OEM integrations.
Get a Quick Quote for a ABB 7BCHM365A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCHM365A?
Enquire Now
FAQs
The CHM365A is a direct-drive, farm-duty motor rated at 0.5 horsepower, with a 3-phase 60 Hz supply. It accepts 230 V or 460 V (nameplate 230/460 V) and operates at 1140 rpm with a 56YZ frame and TEAO enclosure, fitting typical plant electrical infrastructure.
Yes. This motor is designed for farm-duty service and direct-drive fan applications, delivering reliable performance with a 1.25 service factor and TEAO enclosure. It features a resilient base and 56YZ frame for easy installation in tight spaces, plus 0.5 HP output to meet modest airflow demands.
The CHM365A carries CSA and UR listings, indicating compliance with North American safety standards. It is RoHS compliant, reducing hazardous substances in the product. These certifications support regulatory approvals, warranty eligibility, and broader procurement acceptance, helping buyers mitigate risk in manufacturing environments.
The motor uses regreasable bearings and a TEAO enclosure, which minimizes maintenance complexity. With a 1.25 service factor and 1140 rpm rating, routine checks for lubrication, mounting integrity, and electrical connections are advised. Following scheduled lubrication and periodic inspections can extend bearing life and maintain performance.
TEAO enclosure and direct-on-line starting simplify installation by reducing cooling requirements and external fan guards. Horizontal mounting with a resilient base minimizes vibration transfer, while the 56YZ frame matches common mounting patterns. Availability in 230/460 V supports flexible sourcing and quick integration into existing electrical systems.
