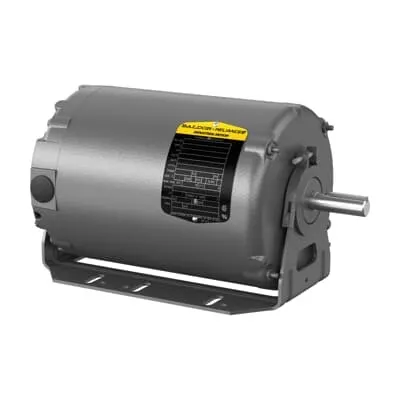

ABB 7BCHM565A General Purpose HVAC Motor - CSA UR
Part Number: 7BCHM565A
Quick Summary
ABB 7BCHM565A is a general purpose HVAC motor designed for reliable 1 HP performance in commercial air handling and fan applications. This model addresses common pain points like long lead times and inconsistent stock by delivering ready-to-ship availability across multiple warehouses. It carries CSA and UR certifications, along with a NEMA design B and TEAO enclosure to support safe, compliant operation in US facilities. The motor’s 60 Hz, 3-phase configuration compatible with 208-230/460 V systems translates into seamless integration with existing HVAC infrastructure, while resilient mounting simplifies installation and minimizes vibration. For procurement teams, the combination of stock availability, predictable performance, and robust certification supports faster project timelines and lower total cost of ownership.
Product Information
Extended Description
7BCHM565A ABB: General Purpose HVAC 1 Hp 208 V (CHM565A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1170RPM,3PH,60HZ,56,3526M,TEAO,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CHM565A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX463: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CHM565A
Gross Volume
2110.969 inÂł
Gross Weight
40 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1170RPM,3PH,60HZ,56,3526M,TEAO,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 1 HP, 1200 RPM, Frame Size 56, ResilientMount Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (CHM565A
Minimum Order Quantity
1 piece
Motor Base Type
Resilient
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
68 %
Product Name
General Purpose HVAC
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
40 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.7 A | 3.6 A | 1.8 A
Rated Efficiency
74 %
Rated Speed
1140 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1200 RPM, Frame Size 56, ResilientMount, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
208 V | 230 V | 460 V
The TEAO enclosure design provides reliable operation in standard HVAC environments with minimal maintenance, eliminating fan-related service needs and enhancing durability in ducted and modular air handling setups. Its frame size 56 and 1 HP rating deliver compact yet robust performance that fits common retrofit and new-build applications, reducing enclosure modifications and installation time. A resilient base mounting minimizes vibration transmission, lowering noise levels and extending bearing life in busy mechanical rooms. With 60 Hz operation and a voltage range of 208–230/460 V, this motor offers seamless compatibility with typical facility power distributions, simplifying electrical design and inventory management. An efficiency rating of 74% and a power factor around 68% help cut energy costs while improving overall system performance. Direct-on-line starting and the NEMA design B conductor scheme support straightforward commissioning and reliable cold-weather operation. Stocked at multiple warehouses with a 0 day lead time reduces downtime during commissioning or renovations, while the 1.15 service factor provides a comfortable margin for variable loads common in HVAC duty cycles. Bearing type 6203 ball and a 0.63 in shaft diameter ensure dependable mechanical integrity under continuous operation, and insulation class F with a 40 °C ambient capability keeps temperatures within safe limits in common plant environments. Overall, the 7BCHM565A balances provable reliability, installability, and energy-conscious performance for building automation projects and retrofit cycles.
Get a Quick Quote for a ABB 7BCHM565A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCHM565A?
Enquire Now
FAQs
This motor is a 3-phase unit rated for 208-230/460 V at 60 Hz with a frame size 56 and horizontal F1 mounting. It uses a resilient base and Direct On Line starting, making it straightforward to drop into standard HVAC blowers and fans without major rewiring. Compatible with common fixed-speed control strategies and simple wiring diagrams.
Key specs include 1 HP output, rated speed of 1140 r/min, and a 60 Hz operation. It supports 208-230/460 V three-phase supply, a service factor of 1.15, and a power factor around 68%. Efficiency is approximately 74%, with a TEAO enclosure and NEMA design B classification, suitable for continuous HVAC duty.
Yes. Designed for continuous operation, the 7BCHM565A features a NEMA design B profile, TEAO enclosure, and robust bearings (6203 ball) suitable for long-running air handling applications. The 1.15 service factor provides margin for startup surges and variable loads common in HVAC, while its resilient mount minimizes vibration and noise.
The motor carries CSA and UR certifications, ensuring regulatory compliance for North American installations. It also adheres to a NEMA design B standard and TEAO enclosure requirements, supporting safe operation in standard HVAC environments and simplifying supplier audits and installation approvals.
Warranty terms state that warranty returns are required for any qualifying defect, with stock available across multiple warehouses and 0-day lead time. Minimum order quantity is 1 piece, and the product ships from both US and international locations, helping reduce downtime during upgrades or new installations.
