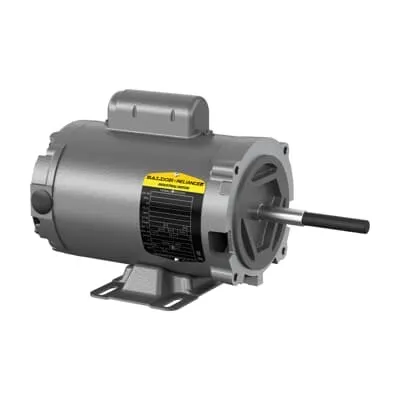

ABB 7BCJL1205A Pump Motor - CSA UR
Part Number: 7BCJL1205A
Quick Summary
ABB 7BCJL1205A pump motor delivers reliable single-phase pumping performance for water systems and light industrial processes. Operators often face downtime and variability in flow when using undersized or mismatched motors, leading to maintenance headaches and skipped schedules. This model carries CSA and UR certifications and conforms to NEMA design standards, helping you meet regulatory and safety requirements. It supports dual voltage operation (115/230 V) with a 56J frame, C-face mounting, and an OPEN enclosure, enabling straightforward field installation and compatibility with existing pump manifolds. Designed for 60 Hz service and a robust 0.33 HP output, the unit promotes efficient, low-maintenance operation and reduced lifecycle costs.
Product Information
Extended Description
7BCJL1205A ABB: Pump Motor 0.33 Hp 115 V (CJL1205A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,3450RPM,1PH,60HZ,56J,3416L,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL1205A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
N
Dimension Diagram
34LYF040: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL1205A
Gross Volume
2110.969 inÂł
Gross Weight
23 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.33HP,3450RPM,1PH,60HZ,56J,3416L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.33 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CJL1205A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
61 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
23 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.2 A | 3.1 A
Rated Efficiency
58 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.75
Service Factor Percentage
1.75 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
115 V | 230 V
The 0.33 HP single-phase pump motor delivers the right balance of power and efficiency for small-capacity jet pumps and water transfer tasks, enabling reliable performance with lower energy consumption and improved system uptime. Its 56J frame with C-face mounting and foot-mounted configuration simplifies retrofits and new installations alike, reducing compatibility risk across pump assemblies and mounting standards. Dual voltage operation of 115 V and 230 V provides procurement flexibility and simplifies stocking for service teams working across sites or controlled environments. The OPEN enclosure and Direct On Line starting minimize upfront drive equipment and permitting requirements, while maintaining straightforward wiring and maintenance. Regreasable bearings (6203) with a 1.75 service factor extend service life under continuous duty, even in demanding pump applications. Insulation class B supports temperature resilience in standard installations and contributes to predictable performance. The motor is built for water-pumping duty with NEMA design conformity, ensuring consistency with common control gear and safety practices. Overall, this ABB motor integrates easily into existing pump systems, reduces maintenance intervals, and supports reliable long-term operation in 1PH 60 Hz environments.
Get a Quick Quote for a ABB 7BCJL1205A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJL1205A?
Enquire Now
FAQs
Choose the 56J frame with C-face mounting for compatible pump assemblies; use the foot-mounted configuration if required. The OPEN enclosure supports straightforward wiring and access, and a Direct On Line start minimizes control needs. Ensure 60 Hz, single-phase power at 115 V or 230 V and proper alignment with the pump manifold.
Yes. The motor is rated for 115 V | 230 V in a 60 Hz, single-phase configuration, allowing flexible sourcing and installation across sites with different power availability.
It is ideal for 56J jet pump and water transfer duties, small pumping applications, and other light industrial processes that require a compact, single-phase, 0.33 HP motor with open enclosure and DOL starting capability.
The motor features CSA and UR certifications and adheres to NEMA design standards, providing regulatory compliance and compatibility with standard control gear and safety practices.
Regreasable 6203 ball bearings extend service life and allow scheduled lubrication, reducing unexpected downtime. The 1.75 service factor provides a margin for overload conditions, improving reliability and lowering maintenance costs over the motor’s life.
