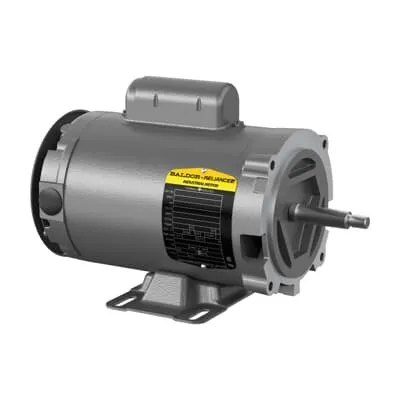

ABB CJL1304A Pump Motor - 0.5 HP, 60 Hz, CSA UR
Part Number: 7BCJL1304A
Quick Summary
ABB CJL1304A pump motor delivers dependable 0.5 HP performance for 56J frame, 1‑phase, 60 Hz pump applications with a C‑Face flange for straightforward alignment. In many plants, downtime and mis‑matched mounting slow projects and raise maintenance costs. This motor mitigates those pain points with a robust open‑enclosure design, durable bearings, and proven single‑phase reliability. Key certifications include CSA and UR safety listings, RoHS compliance, and adherence to NEMA design guidelines, ensuring regulatory conformity and long service life. For engineers, this means easier installation, reduced spare-part variety, and predictable performance across standard 115/230 V power feeds, making it a solid fit for retrofit or new equipment in water and pumping systems.
Product Information
Extended Description
7BCJL1304A ABB: Pump Motor 0.5 Hp 115 V (CJL1304A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,1PH,60HZ,56J,3418L,OPE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL1304A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYF030: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL1304A
Gross Volume
1400.25 in³
Gross Weight
25 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,1725RPM,1PH,60HZ,56J,3418L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.5 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CJL1304A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
56J Jet Pump
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
25 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
62 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
K
Voltage Rating
115 V | 230 V
Feature: 0.5 HP, 1725 rpm, 56J frame with C‑Face mounting. Business Impact: Delivers reliable jet‑pump performance in a compact footprint, reducing cabinet space and installation time. Application: Ideal for open‑frame water pumps and retrofits where quick alignment and easy service are needed. Feature: 60 Hz, single‑phase operation with Direct On Line starting. Business Impact: Simplifies control schemes and reduces ancillary starting components, lowering upfront cost and wiring complexity. Application: Plant systems that rely on standard 60 Hz power and require fast, straightforward startup. Feature: Dual voltage 115/230 V. Business Impact: Flexible installation across facilities with varying supply voltages, lowering stock variety and commissioning time. Application: Water transfer and irrigation pumps deployed in plants with mixed voltage infrastructure. Feature: Foot Mounted, C‑Face drive end with OPEN enclosure. Business Impact: Easy mounting alignment and fast maintenance access, reducing downtime during belt/coupling work. Application: Retrofit projects and new pump assemblies in open‑air or cabinet‑based installations. Feature: Regreasable bearings (6203 ball) and robust mechanical design. Business Impact: Extends service life and lowers maintenance costs through longer intervals between lubrication events. Application: Continuous‑duty pumping where reliability and low maintenance are critical. Feature: RoHS compliant, CSA/UR safety listings, NEMA design alignment. Business Impact: Regulatory compliance supports procurement and cross‑border deployments, while standard design expectations simplify spare parts and training. Application: Global installations requiring certified, compliant motor solutions for centrifugal or jet pumps.
Get a Quick Quote for a ABB 7BCJL1304A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJL1304A?
Enquire Now
FAQs
The CJL1304A uses C‑Face drive end mounting on a foot‑mounted 56J frame and is designed for open enclosure installations. This combination simplifies alignment, belt or coupling installation, and service access, making retrofits and new builds faster and less error‑prone in horizontal pump setups.
This is a 1‑phase, 4‑pole motor with dual voltage capability of 115 V or 230 V operating at 60 Hz. It employs Direct On Line starting for straightforward control, delivering 1725 rpm nominal speed and a typical current profile of about 8.4 A at 115 V or 4.2 A at 230 V during full load.
Yes. The motor is specified for continuous duty, with a continuous‑duty design that aligns with pump applications. It includes a 1.25 service factor, robust bearings (6203 ball), and a 56J frame, all contributing to reliable operation in ongoing pumping tasks such as irrigation and water transfer.
The CJL1304A carries CSA and UR safety listings and RoHS compliance, with adherence to NEMA design standards. These certifications help ensure safe operation, ease cross‑border procurement, and regulatory alignment for equipment installed in the United States and globally, reducing risk during audits and site commissioning.
Lubrication is regreasable, supporting longer maintenance intervals, and the bearings are designed for durability. With open enclosure design and simple direct‑start operation, maintenance tasks are straightforward, reducing downtime. The motor’s stock availability and standardized 115/230 V ratings also contribute to lower total cost of ownership over the motor’s lifecycle.
