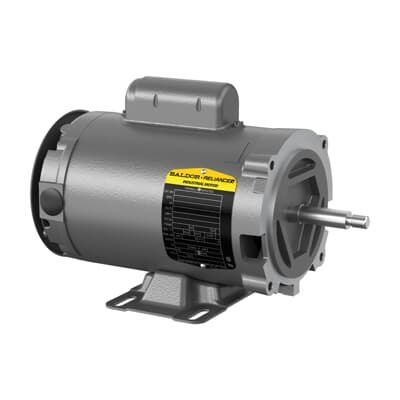

ABB 7BCJL1306A Pump Motor - 0.75 HP, 115 V CSA/UR
Part Number: 7BCJL1306A
Quick Summary
ABB 7BCJL1306A Pump Motor delivers 0.75 HP at 115 V for compact jet pump systems. Engineers often grapple with downtime and unexpected motor failures in pumping lines. This unit carries CSA and UR safety certifications and a NEMA-designated open enclosure. RoHS compliant with a 56J frame and 1‑phase, 60 Hz operation supports efficient, dependable installations. RoHS compliant with a 56J frame and 1‑phase, 60 Hz operation supports efficient, dependable installations. With direct-on-line starting and 0 day lead time, you can minimize downtime in critical water-pumping or light industrial processes. Ideal for open-enclosure, foot-mounted, single-speed pump duties where reliability and easy sourcing matter. With direct-on-line starting and 0 day lead time, you can minimize downtime in critical water-pumping or light industrial processes.
Product Information
Extended Description
7BCJL1306A ABB: Pump Motor 0.75 Hp 115 V (CJL1306A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,1PH,60HZ,56J,3424L,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL1306A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
N
Dimension Diagram
34LYF492: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL1306A
Gross Volume
2110.969 in³
Gross Weight
30 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,3450RPM,1PH,60HZ,56J,3424L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.75 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CJL1306A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
68 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
30 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11 A | 5.5 A
Rated Efficiency
69 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.50
Service Factor Percentage
1.50 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: Direct On Line starting reduces electronics in the control scheme, cutting upfront costs and simplifying installation for existing pump controls. This translates to faster commissioning and lower risk of control faults in 1PH, 60 Hz jet-pump duties across residential and light commercial water systems. Feature → Business Impact → Application: The 56J frame with a steel, open enclosure delivers robust mounting and resistance to vibration, improving belt life and pump alignment. This is advantageous for horizontal mounting and foot-mounted configurations in open-work environments like irrigation headers and small-town water transfers. Feature → Business Impact → Application: Regreasable bearings and a B insulation class support longer service intervals, lowering maintenance windows and labor costs in field service scenarios. Application ranges from domestic wells to small-scale irrigation pumps. Feature → Business Impact → Application: CSA/UR certification plus RoHS compliance reduce regulatory and environmental risk, enabling faster procurement cycles and easier supplier audits in regulated facilities. Application: Ideal for OEM replacements where stock is distributed across multiple warehouses and quick lead times matter, ensuring minimal downtime during seasonal peaks. Feature → Business Impact → Application: The 0.75 HP output matches common pump curves, enabling reliable performance without oversizing and with straightforward integration into existing pump trains.
Get a Quick Quote for a ABB 7BCJL1306A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJL1306A?
Enquire Now
FAQs
The ABB 7BCJL1306A is a 1‑phase, 115/230 V open-enclosure motor with a 56J frame. It uses foot-mounted, C-face mounting and a 0.63 inch shaft diameter, enabling straightforward integration into standard jet-pump assemblies. Direct-on-line starting simplifies control wiring and reduces startup components, making it suitable for compact pump trains in residential or light commercial systems.
For 115 V operation, this motor runs on a single phase at 60 Hz with a rated current around 11 A (full-load). It supports 115/230 V two-voltage operation and offers direct-on-line starting. Efficiency is about 69%, and the power factor is approximately 68%, helping you estimate electrical service and conductor sizing without oversizing the circuit.
Yes. The 0.75 HP, 1PH, 60 Hz design is tailored for jet-pump duties and light water transfer. Its frame, enclosure, and mounting options are optimized for horizontal, foot-mounted installations in open environments. This makes it a practical replacement or OEM option for small residential wells, irrigation systems, and domestic water transfer setups.
The unit carries CSA and UR safety certifications, along with RoHS compliance, and a NEMA design designation. These certifications reduce regulatory risk, simplify procurement, and ensure compliance with environmental and safety standards in many North American facilities.
Lead time is listed as 0 day, and stock is available across multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). The warranty policy indicates products under warranty must be returned, which supports quick replacements while maintaining traceability for repairs and returns in field service scenarios.
