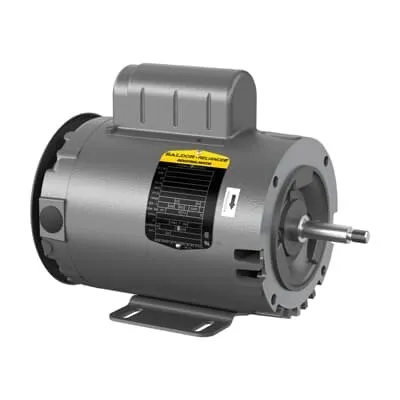

ABB 7BCJL1307A Pump Motor - CSA UR, NEMA, 1PH, 60Hz
Part Number: 7BCJL1307A
Quick Summary
ABB 7BCJL1307A Pump Motor is a 0.75 HP, 115 V single-phase motor designed for jet pumps and water-transfer applications. Users often face mounting incompatibilities, enclosure constraints, and voltage mismatches on job sites; this model helps mitigate those issues with a standard C-face mount, 56J frame, and open enclosure. It carries CSA and UR certifications and aligns with NEMA requirements, supporting regulatory compliance in varied markets. With a 0-day lead time and multiple stocking locations, it also reduces downtime and procurement friction. In addition to performance at 60 Hz, the motor’s 1-phase operation and 1.25 service factor deliver reliable, easy-to-service pumping power for residential, commercial, and light industrial water systems. Secondary benefits include predictable maintenance cycles and straightforward spares planning.
Product Information
Extended Description
7BCJL1307A ABB: Pump Motor 0.75 Hp 115 V (CJL1307A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56J,3428L,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL1307A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
N
Dimension Diagram
35LYG790: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL1307A
Gross Volume
2110.969 inÂł
Gross Weight
35 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.75HP,1725RPM,1PH,60HZ,56J,3428L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.75 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CJL1307A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
64 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
35 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
10.8 A | 5.4 A
Rated Efficiency
63 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature: 0.75 HP, 115/230 V, 60 Hz, 1PH with a 56J frame and 1725 r/min rating. Business Impact: Delivers adequate pumping power with standard electrical service, minimizing the need for special transformers and simplifying installation. Application: Suitable for jet pumps and water-transfer tasks in open-enclosure pump assemblies, reducing downtime when replacing legacy motors. Feature: Open enclosure with C-face, drive-end flange type, and foot mounting. Business Impact: Easier field installation and service access, compatible with common pump housings and mounting practices. Application: Quick swap-outs in commercial and light-industrial water systems. Feature: Insulation Class F and ball-bearing construction (6205) with 0.63 in shaft. Business Impact: Enhanced reliability in moderate ambient conditions, longer service intervals, and reduced maintenance costs. Application: Continuous-duty pumping in environments up to 40 °C and 1000 m altitude. Feature: 1.25 service factor, PF 64%, efficiency ~63%. Business Impact: Higher tolerance to transient loads and improved energy efficiency, lowering operating costs. Application: Regulated pumping operations where uptime and energy use are critical. Feature: CSA | UR and NEMA compliance, Direct On Line start, 1PH, 60 Hz. Business Impact: Simplified regulatory approvals and straightforward commissioning, minimizing start-up time. Application: Regulatory-compliant installations across North American markets. Feature: Stock availability and zero lead time. Business Impact: Faster procurement, reduced project delays, and lower total cost of ownership. Application: OEM and service teams needing rapid replacement parts for pumps and related equipment.
Get a Quick Quote for a ABB 7BCJL1307A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJL1307A?
Enquire Now
FAQs
The ABB 7BCJL1307A is designed for seamless integration with typical jet pumps and water-transfer systems. It supports 115 V and 230 V operation at 60 Hz, runs on a single phase, and uses a 56J frame with C-face mounting for easy interchange with existing equipment. Its foot-mounted base and open enclosure simplify installation and service, reducing field wiring time and parts counts.
This motor provides 0.75 HP with a rated current of 10.8 A at 115 V (and 5.4 A at 230 V), a PF around 64%, and an efficiency near 63%. The 1.25 service factor allows handling short-term overloads without thermal damage, while direct-on-line starting supports fast pump engagement. These specs translate to reliable operation in continuous or duty-cycle pumping applications with predictable electrical load.
Yes, within its defined envelope. It features an open enclosure suitable for pump installations with adequate environmental control, insulation class F, and robust bearings (6205). Certifications include CSA | UR and alignment with NEMA standards, supporting compliance in regulated environments. For harsher environments, ensure ambient temperatures stay near or below 40 °C and install in protective housings when needed.
The motor carries CSA and UR certifications and aligns with NEMA standards, signaling conformance with North American electrical and safety requirements. These certifications facilitate regulatory approvals, suitable service provider qualification, and smoother installation in commercial facilities, while the insulation class F supports safe operation across typical pump installation conditions.
The motor’s 1.25 service factor, 63% efficiency, and 64% PF help reduce energy and maintenance costs while tolerating occasional overloads without downtime. Bearings and lubrication are designed for reliability, with relubrication as needed. The model’s stock availability and 0-day lead time further reduce project delays and total cost of ownership by enabling faster replacements and service responses.
