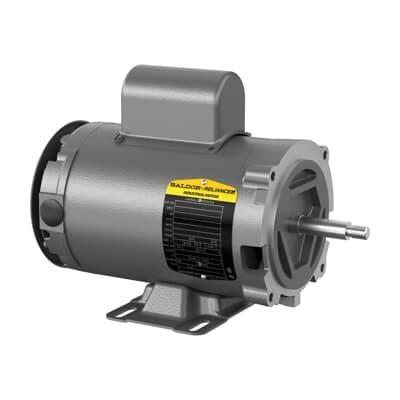

ABB CJL1309A Pump Motor - 1HP, 60Hz, 1PH, OPEN
Part Number: 7BCJL1309A
Quick Summary
ABB CJL1309A Pump Motor is a compact, single‑phase unit engineered for reliable pumping in light industrial and commercial applications. Many users struggle with matching motor ratings to system demands, which can lead to downtime and overpurchasing; this model delivers a true 1 HP, 115 V option with 208–230 V variants for flexible deployment. It carries essential certifications and design attributes that matter in the field, including CSA/UR verification, RoHS compliance, and a NEMA OPEN enclosure. In practice, installers benefit from straightforward footprint compatibility—56J frame with C‑Face mounting and a robust foot mount—while procurement teams value standard stock across multiple warehouses for faster delivery and easier maintenance.
Product Information
Extended Description
7BCJL1309A ABB: Pump Motor 1 Hp 115 V (CJL1309A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,1PH,60HZ,56J,3428L,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL1309A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
N
Dimension Diagram
34LYF497: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL1309A
Gross Volume
2110.969 in³
Gross Weight
32 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1HP,3450RPM,1PH,60HZ,56J,3428L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 1 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/208-230 V, 60 Hz (CJL1309A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
65 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
32 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14 A | 7.8 A | 7 A
Rated Efficiency
65 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.40
Service Factor Percentage
1.40 %
Shaft Diameter
0.63 in
Short Description
1 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
115 V | 208 V | 230 V
Versatile electrical rating and frame compatibility drive efficient procurement and installation. The CJL1309A supports 115 V and 208–230 V inputs at 60 Hz, enabling easy matching with existing plant power distribution and minimizing transformer needs. This flexibility translates to reduced wiring changes and faster commissioning on open pump skids, improving uptime in water transfer and jet pump applications. The 56J frame and C-Face/foot-mounted footprint standardize replacements and service intervals, allowing field technicians to swap units with minimal downtime and no specialized tooling. Direct On Line starting simplifies start-up sequences, lowering initial capital costs and avoiding expensive soft-start drives for straightforward duty cycles. RoHS compliance and CSA/UR certifications address regulatory requirements, supporting safer field deployments and vendor accountability. Stocking at multiple warehouses accelerates delivery for time-critical maintenance and capital projects. Additionally, the open enclosure design provides easy access for lubrication and inspection, extending bearing life in continuous operation environments.
