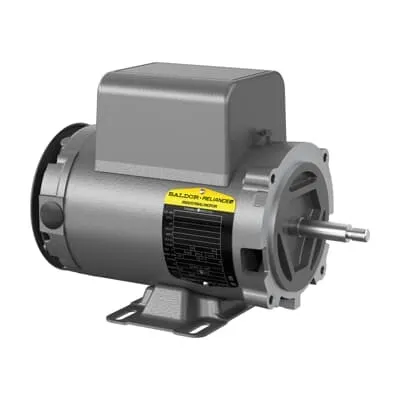

ABB 7BCJL1313A Pump Motor - NEMA, 1-Ph, 60 Hz
Part Number: 7BCJL1313A
Quick Summary
ABB 7BCJL1313A Pump Motor is a reliable 1.5 HP single‑phase drive for small water‑pumping applications. A common challenge for engineers is finding a readily stocked, compatible motor that fits existing mounting and wiring without modification. This model aligns with NEMA standards and carries CSA | UR certification with RoHS compliance, supporting regulatory alignment and sustainability. With a 1‑phase, 60 Hz rating and a 56J frame, it offers a straightforward retrofit path for Jet Pump installations, reducing downtime and total cost of ownership. Designed for open enclosures and foot mounting, it delivers dependable performance in everyday pumping tasks while simplifying procurement and maintenance for industrial facilities.
Product Information
Extended Description
7BCJL1313A ABB: Pump Motor 1.5 Hp 115 V (CJL1313A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3450RPM,1PH,60HZ,56J,3432LC,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL1313A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
34LYF532: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL1313A
Gross Volume
2200.078 inÂł
Gross Weight
37 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1.5HP,3450RPM,1PH,60HZ,56J,3432LC,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 1.5 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CJL1313A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
95 %
Product Name
56J Jet Pump
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
37 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
78.50 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.30
Service Factor Percentage
1.30 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 56J frame size, 1‑phase 60 Hz operation, and 115/230 V adaptability enable quick integration into existing pump configurations, reducing installation time and wiring complexity for retrofit projects. This translates to lower startup costs and faster time‑to‑production for water systems in industrial facilities. The open enclosure and C‑Face mounting provide improved cooling and straightforward field service access, which minimizes unscheduled downtime during maintenance windows. The 1.3 service factor and 3450 r/min rated speed (synchronous 3600 r/min) deliver dependable performance under typical load profiles, helping facilities meet process deadlines and ensure consistent water transfer. Regular bearings (6203, ball) and regreasable lubrication extend service intervals, lowering maintenance frequency and total cost of ownership. With a 56J frame and 37 lb net weight, the motor fits compact spaces and supports horizontal motor base configurations, facilitating easy alignment with existing pump assemblies. RoHS compliance and CSA/UR certification reassure buyers about regulatory adherence, material safety, and traceability for quality assurance audits. In addition, the 13 A rated current at 115 V or 6.5 A at 230 V supports efficient energy use and predictable electrical demand, making this motor a practical upgrade for Jet Pump and water-transfer applications in commercial and light-industrial settings. Overall, this ABB motor provides a robust combination of reliability, compatibility, and regulatory compliance that helps engineering teams reduce risk and extend asset life in pumping systems.
Get a Quick Quote for a ABB 7BCJL1313A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJL1313A?
Enquire Now
FAQs
This motor is designed for a 56J frame with open enclosure and C‑Face mounting, making it compatible with common foot-mounted pump assemblies and standard dimensions. Its 1‑phase, 60 Hz, 115/230 V voltage rating supports straightforward retrofits into existing Jet Pump and small transfer pump setups.
Key specs include 1‑phase operation at 115 V or 230 V, 60 Hz, and a rated current of 13 A (13 A at 115 V; 6.5 A at 230 V). It delivers 1.5 HP with a service factor of 1.30, and a rated speed of 3450 r/min (synchronous 3600 r/min). Insulation is Class B, with RoHS compliance.
Yes. The 56J frame, 1‑phase, 60 Hz motors with open enclosure are well suited to Jet Pump installations and small water-transfer tasks. The direct‑on‑line starting capability and horizontal mounting orientation (F1) simplify retrofits, while regreasable bearings support long service intervals in pumping environments.
ABB lists CSA and UR certifications, with NEMA alignment and RoHS compliance. These certifications support regulatory reporting, energy compliance, and safer material use, which can streamline procurement approvals and QA audits for industrial facilities.
Regreasable bearings and a robust 56J, 37 lb package simplify maintenance planning and stocking. The motor’s stock availability across multiple warehouses reduces lead times, while its open enclosure and straightforward 1‑phase wiring minimize downtime during servicing, delivering lower total cost of ownership over the asset life.
