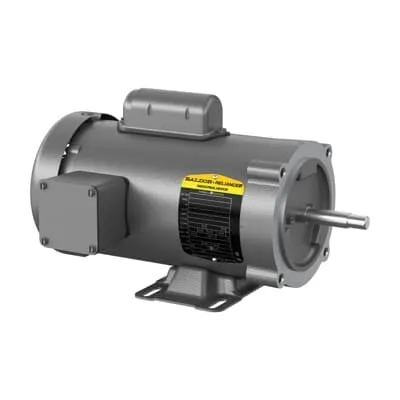

ABB 7BCJL3504A Pump Motor - 1PH, 60Hz, TEFC
Part Number: 7BCJL3504A
Quick Summary
ABB 7BCJL3504A is a 0.5 HP pump motor designed for small jet pump applications. Engineers often face challenges matching voltage, mounting, and duty across diverse pump configurations; this model provides a 115/230 V dual voltage rating and a C-Face mounting to streamline installation. It carries CSA and UL recognition, plus a NEMA-design TEFC enclosure, strengthening compliance and interchangeability in regulated environments. With these features, the motor delivers reliable operation without extensive customization, helping distributors reduce lead times and customers avoid costly substitutions. In practice, this makes it a solid choice for water-transfer systems, pool pumps, and other residential-to-light-commercial pump duties, while aligning with standard industrial motor terminology and procurement processes.
Product Information
Extended Description
7BCJL3504A ABB: Pump Motor 0.5 Hp 115 V (CJL3504A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,1PH,60HZ,56J,3421L,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL3504A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYL052: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL3504A
Gross Volume
2110.969 inÂł
Gross Weight
28 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,1725RPM,1PH,60HZ,56J,3421L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.5 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CJL3504A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
66 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
28 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.4 A | 3.7 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B34L52-5593
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56J, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
J
Voltage Rating
115 V | 230 V
TEFC enclosure protects windings from dust and moisture, delivering longer service life in pump environments and reducing maintenance intervals. The 56J frame with C-Face mounting simplifies installation on existing pump assemblies, enabling quick retrofits and fewer hardware changes. A 1-phase, 60 Hz design with dual voltage 115/230 V broadens compatibility with standard building supplies and minimizes wiring complexity on site. Regreasable bearings (6203) and a robust steel frame support reliable operation in demanding pumping tasks, lowering downtime from bearing maintenance and seal failures. The motor delivers 0.5 HP at 1725 r/min with a service factor of 1.25 and a power factor of 66%, combining efficiency with dependable performance for continuous-duty, light-commercial pumps. In stock at multiple warehouses with 0 day lead time, it supports fast project timelines and reduces inventory costs for distributors and integrators.
Get a Quick Quote for a ABB 7BCJL3504A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJL3504A?
Enquire Now
FAQs
This motor is designed for horizontal, foot-mounted use with a C-face mounting and 56J frame, supporting straightforward retrofits into existing jet pump systems. It operates on 115/230V, 1 phase, 60 Hz, and uses a TEFC enclosure to protect windings in dusty or damp environments. Ensure mounting clearance and shaft alignment match the 0.63 in shaft diameter for reliable service.
The motor provides 0.5 HP at 1725 rpm with a service factor of 1.25 and a rated current of 7.4 A / 3.7 A. It runs on 115/230V, 1 phase at 60 Hz with a power factor of 66% and an efficiency around 68%. These specs deliver adequate torque for jet pumps and water transfer tasks while maintaining energy-efficient operation in typical residential-to-light-commercial installations.
Yes. The ABB 7BCJL3504A uses a TEFC enclosure and is associated with CSA and UR recognition and NEMA design conventions. These certifications support regulatory compliance and safe integration into regulated facilities, with standard frame and mounting compatibility reducing supplier audits and cross-brand qualification requirements.
The motor features a 56J frame, C-face mounting, and foot-mounted orientation, which align with common pump housings and mounting footprints used in many Baldor-Reliance setups. Its 115/230V dual voltage capability and standard shaft size further facilitate interchangeability, reducing rework and spare-parts complexity during upgrades.
With regreasable bearings and a robust TEFC enclosure, maintenance intervals can be extended compared with non-regreasable or open motors, lowering maintenance costs. The 1.25 service factor plus solid efficiency and power factor support reliable operation with manageable energy costs. In-stock availability and zero lead time further shorten project timelines and improve total cost of ownership.
