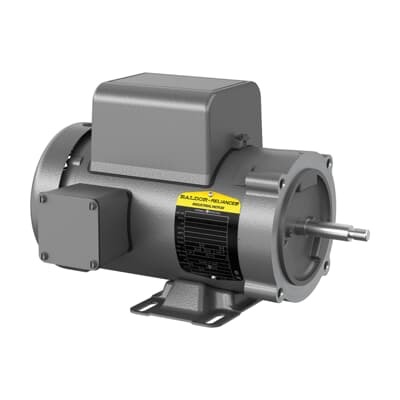

ABB CJL3507A Pump Motor - 0.75 HP, 1PH, 60Hz CSA UR
Part Number: 7BCJL3507A
Quick Summary
ABB CJL3507A pump motor delivers 0.75 HP at 115/230 V for single-phase pump applications such as jet pumps and circulating systems. This compact unit addresses space constraints and the need for reliable operation in pump skids. The motor is CSA and UR listed and adheres to NEMA design standards for TEFC enclosures, with a 56J frame and 1-phase, 60 Hz operation. Its US origin and stocked availability with fast lead times support streamlined procurement and short project cycles. By combining a regreasable bearing design with a 1.25 service factor, it delivers dependable performance under continuous duty in demanding environments while easing installation and maintenance.
Product Information
Extended Description
7BCJL3507A ABB: Pump Motor 0.75 Hp 115 V (CJL3507A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56J,3428LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL3507A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
N
Dimension Diagram
34LYM631: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL3507A
Gross Volume
2110.969 inÂł
Gross Weight
35 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,1725RPM,1PH,60HZ,56J,3428LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.75 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CJL3507A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
80 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
35 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.2 A | 4.1 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56J, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: 0.75 HP single‑phase capability at 115/230 V reduces panel space and wiring complexity while enabling flexible power sourcing; ideal for jet pumps and circulating water systems in commercial, HVAC, and light industrial settings. Feature → Business Impact → Application: TEFC enclosure with 56J frame and foot-mounted, C-face design provides rugged protection in dusty or damp environments and simplifies installation on standard bases, decreasing field service time. Feature → Business Impact → Application: Regreasable 6203 bearing arrangement lowers maintenance costs and extends bearing life, supporting predictable uptime in continuous-duty pumping. Feature → Business Impact → Application: 1.25 service factor, insulation class B, and rated efficiency of 74% improve torque reserve and energy efficiency under variable loads, beneficial for irrigation and water-transfer tasks. Feature → Business Impact → Application: US origin with fast stock at multiple warehouses enables rapid procurement and supply-chain resilience for OEMs and contractors working on time-sensitive projects.
