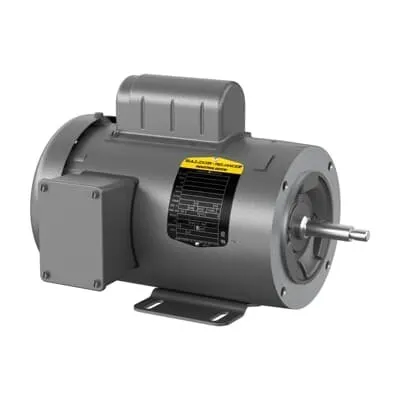

ABB 7BCJL3515A Pump Motor - 2 HP, 115V, CSA UR
Part Number: 7BCJL3515A
Quick Summary
The ABB 7BCJL3515A pump motor delivers 2 HP performance for 1-phase jet pump systems. Engineers face downtime and compatibility challenges when sourcing a motor that drops into existing drives and mounting patterns. This unit is CSA and UR listed, with a NEMA-aligned design and TEFC enclosure, built for reliability in demanding environments. It is available in 115/230 V, 60 Hz, and features a C-face mount and 56J frame for straightforward installation. By pairing robust construction with stock availability across multiple warehouses, it helps minimize lead times and total cost of ownership. In practice, this motor supports quick retrofits and compliant operation in water transfer, irrigation, and pumping applications.
Product Information
Extended Description
7BCJL3515A ABB: Pump Motor 2 Hp 115 V (CJL3515A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,1PH,60HZ,3535L,N
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJL3515A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYZ185: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJL3515A
Gross Volume
3496.049 in³
Gross Weight
51 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
B
Invoice Description
2HP,3450RPM,1PH,60HZ,3535L,N
Made To Order
No
Medium Description
56J Jet Pump, 2 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CJL3515A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
82 %
Product Name
56J Jet Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
51 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23 A | 11.5 A
Rated Efficiency
74 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35Z185-5184G1
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 7BCJL3515A uses a 56J frame and foot-mounted base, enabling quick installation in existing hardware footprints and reducing setup time during upgrades or new builds. This translates to lower labor costs and faster project delivery for municipal, agricultural, and industrial pumping systems. Feature → Business Impact → Application: TEFC enclosure protects internal windings from dust and moisture, extending motor life in wet, dusty, or humid environments while maintaining performance in outdoor or crawlspace installations. This resilience reduces maintenance frequency and unplanned downtime for water-treatment plants and sump pump stations. Feature → Business Impact → Application: 2 HP, 3450 r/min operation with single-phase 60 Hz and 115/230 V options provides reliable starting and running performance with a favorable speed-torque balance for jet pumps, boosting overall system efficiency and flow consistency. Feature → Business Impact → Application: Rated current of 23 A / 11.5 A and a power factor of 82% improve electrical utilization and backup sizing, helping engineers design more efficient panels and reduce energy waste in continuous-duty applications. Feature → Business Impact → Application: NEMA Design Code L and 1PH operation simplify compatibility with standard drives and protective devices, easing panel integration and compliance checks in commercial pumping systems. Feature → Business Impact → Application: Stocked at multiple warehouses and a 0 day lead time profile means faster procurement and lower project risk, supporting just-in-time maintenance routines and minimizing downtime in critical water systems. Feature → Business Impact → Application: Insulation Class B and a rated efficiency of 74% provide predictable performance under moderate ambient conditions, aiding in long-term planning and energy budgeting for facility managers. Feature → Business Impact → Application: The motor’s compact footprint (53–60 cm net length indicators, 13.75 in width, 13.123 in height approximate) and standard shaft size of 0.63 in improve compatibility with existing mechanical systems and couplings, reducing rework during retrofits. Feature → Business Impact → Application: Industry-standard certifications (CSA | UR) and NEMA alignment reassure compliance teams and procurement professionals, supporting audits and supplier qualification processes for water handling and industrial maintenance projects.
