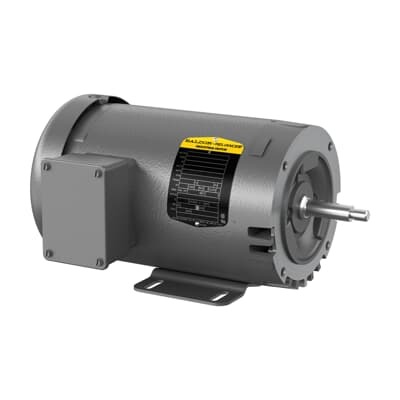

ABB 7BCJM3158 Pump Motor - 3HP, 60Hz, 208-230/460V
Part Number: 7BCJM3158
Quick Summary
ABB 7BCJM3158 Pump Motor is a reliable 3 HP drive designed for 208–230/460 V operations. In practice, engineers often struggle to find a motor that works across voltage rails while meeting enclosure and mounting constraints. The unit carries CSA and UR certifications and aligns with NEMA design standards, opening the door to safe, code-compliant installations. With a 56J frame, 3-phase 60 Hz performance, open enclosure, and regreasable bearings, this motor supports fast integration and reduces spares and downtime. Designed for continuous duty in pump and fluid handling, it integrates with common VFDs or direct-on-line starts, delivering predictable performance and long service life. This makes it a practical upgrade for existing pumps, reducing integration risk and speeding maintenance planning.
Product Information
Extended Description
7BCJM3158 ABB: Pump Motor 3 Hp 208 V (CJM3158)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,56J,3524M,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJM3158
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYT961: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJM3158
Gross Volume
3496.049 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
3HP,3450RPM,3PH,60HZ,56J,3524M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 3 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 3 Phase, ODTF Enclosure, 208-230/460 V, 60 Hz (CJM3158)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
87 %
Product Name
56J Jet Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.5 A | 8 A | 4 A
Rated Efficiency
80 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
3 HP, 3600 RPM, Frame Size 56J, C-Face, 3 PH, ODTF, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
K
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application3HP, 60 Hz, 208–230/460 V compatibility ensures voltage flexibility across pump installations, reducing the need for multiple motor variants. The 56J frame and 3-phase design translate into consistent, predictable starting and running characteristics, improving reliability in centrifugal pumps used for water transfer or process cooling. This broad voltage range helps standardize electrical design and simplify spares inventories.Foot-mounted with a C-Face drive end flange and an Open Drip-Proof (ODTF) enclosure simplifies installation and retrofits into existing bases. The horizontal mounting position and 56J frame align with common pump configurations, enabling quick swaps in legacy systems without custom adapters. The Direct On Line (DOL) starting approach reduces control wiring complexity and accelerates commissioning.Insulation Class B, service factor 1.15, and a power factor near 0.87 support steady performance with manageable current draw under full load. The rated speed of 3450 r/min and a synchronous speed of 3600 r/min provide robust pump head and flow, while regreasable bearings contribute to long service life with reduced maintenance.CSA/UR certifications and NEMA design compatibility streamline procurement and regulatory compliance, expanding installation options across facilities. An 80% rated efficiency and a 41 lb mass enable lower operating costs and easier handling, supporting ROI in water handling, HVAC, and light industrial pumping applications.
Get a Quick Quote for a ABB 7BCJM3158
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJM3158?
Enquire Now
FAQs
Yes. The 7BCJM3158 uses a 56J frame with a foot-mounted base and a C-Face drive end flange, designed for horizontal installation. It is compatible with an Open Drip Proof (ODTF) enclosure and supports direct-on-line starting, which simplifies wiring and commissioning in pump systems.
Key specs include 3-phase operation at 208 V, 230 V, or 460 V, a frequency of 60 Hz, 3 HP output, and a frame size of 56J. Rated speed is 3450 r/min (synchronous 3600 r/min), with a service factor of 1.15 and a power factor around 0.87. These values enable reliable, efficient operation across typical centrifugal pump duties.
Ideal for centrifugal pumps in water transfer, HVAC pump loops, and light industrial fluid handling, especially where a single motor must cover multiple voltages. The open enclosure and C-Face mounting facilitate retrofit into existing pump skids, while 60 Hz operation and 56J frame support consistent performance across standard industrial settings.
The motor carries CSA and UR certifications and aligns with NEMA design standards, supporting code-compliant installation in regulated facilities. This simplifies procurement, accelerates approval processes, and reduces the risk of non-compliant equipment in projects across manufacturing, water treatment, and building services.
Regreasable bearings and a robust 56J frame offer extended service life with scheduled lubrication intervals, reducing downtime. The motor’s efficiency (around 80%) and power factor (≈0.87) help lower operating costs, while the DOL starting and open enclosure design minimize maintenance penalties during commissioning and routine service in pump systems.
