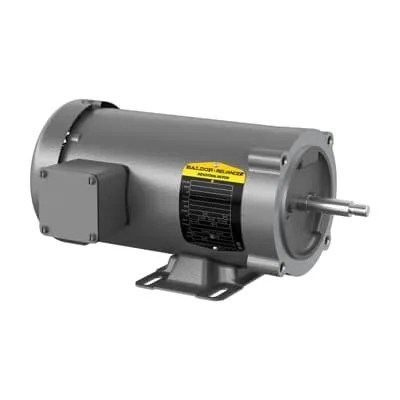

ABB CJM3538 Pump Motor - 0.5HP, TEFC, 60Hz, 56J
Part Number: 7BCJM3538
Quick Summary
ABB CJM3538 Pump Motor delivers reliable pumping for water and fluids in commercial and light industrial systems. End users often face downtime from motor wear, unplanned maintenance, and energy inefficiency. This unit carries CSA and UR safety certifications and adheres to NEMA design standards, with TEFC enclosure for demanding environments. Its 3-phase 60 Hz performance, 56J frame, and 230/460 V versatility simplify procurement and stocking while enabling easy installation. Designed for municipal, agricultural, and processing applications, the CJM3538 supports standard drive components and robust mounting. By choosing this motor, engineers gain predictable reliability, reduced maintenance costs, and improved overall equipment efficiency. The compact footprint fits tight spaces on pump skids, and grease-lubricated bearings contribute to extended service life.
Product Information
Extended Description
7BCJM3538 ABB: Pump Motor 0.5 Hp 230 V (CJM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1720RPM,3PH,60HZ,56J,3416M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJM3538
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYK039: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJM3538
Gross Volume
2110.969 in³
Gross Weight
23 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,1720RPM,3PH,60HZ,56J,3416M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.5 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CJM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
75 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
23 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.6 A | 0.8 A
Rated Efficiency
75.50 %
Rated Speed
1720 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56J, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: 0.5 HP output with a 1720 rpm performance in a 56J frame. Business Impact: Delivers adequate head for mid-size pumps, enabling compact, efficient pump packages without compromising flow. Application: 56J Jet Pump installations in municipal, agricultural, and process environments. Feature: TEFC enclosure protects windings from dust, moisture, and washdown. Business Impact: Extends motor life and reduces maintenance downtime in tough plant conditions. Application: Outdoor, damp, or dirty environments and food-grade or sanitary processes where enclosure integrity matters. Feature: Dual voltage 230/460 V operation. Business Impact: Simplifies electrical design, reduces spare parts inventory, and accelerates commissioning. Application: North American industrial plants with mixed voltage capabilities. Feature: Foot-mounted, horizontal F1 mounting on a 56J frame. Business Impact: Eases installation on existing pump skids and baseplates, lowering retrofit time and labor. Application: OEM retrofits and serviceable pump systems in tight spaces. Feature: Regreasable bearings (6203) with grease lubrication. Business Impact: Extends service intervals, lowers total cost of ownership, and improves reliability in continuous duty. Application: Long-term pumping installations in municipal and industrial settings. Feature: CSA/UR safety approvals and adherence to NEMA design standards. Business Impact: Improves regulatory compliance and operator safety while simplifying procurement for regulated facilities. Application: Plants with strict safety and quality requirements in water pumping and process applications.
Get a Quick Quote for a ABB 7BCJM3538
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJM3538?
Enquire Now
FAQs
Yes. The CJM3538 is specified for dual voltage operation, supporting 230V and 460V three-phase configurations. This flexibility simplifies wiring choices and reduces the number of spare transformers required on site, enabling quicker commissioning and easier guide wiring for most North American pump installations.
The motor uses a 56J frame with foot-mounted, horizontal F1 mounting and a TEFC enclosure. This combination enables straightforward mounting on existing pump bases, drip-free integration with standard pump skids, and reliable operation in dusty or damp environments typical of jet pump installations.
Ideal for 56J Jet Pump systems used in municipal water transfer, agricultural irrigation, and process industries. Its 0.5 HP output, 1720 rpm speed, and dual-voltage capability support compact pump packages, making it a practical choice for mid-scale pumping needs where reliability and lifecycle costs matter.
The CJM3538 carries CSA and UR safety approvals and aligns with NEMA design standards, which helps ensure regulatory compliance and safe operation in regulated facilities. This is particularly important for uptime-critical water handling, processing lines, and OEM component spec sheets.
Regreasable bearings (6203) and a robust TEFC design reduce maintenance frequency, while dual-voltage capability minimizes inventory for spare parts. Routine grease lubrication schedules, along with standard mounting practices, support predictable service intervals and lower total cost of ownership over the motor’s lifecycle.
