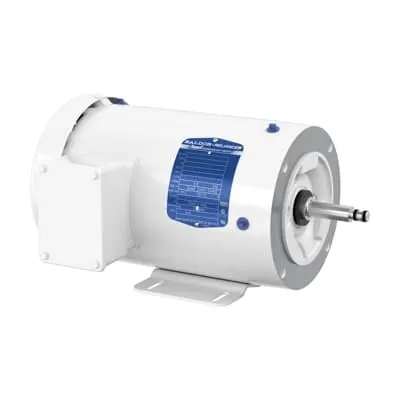

ABB 7BCJWDM3463 Washdown Motor - CSA/UR Certified
Part Number: 7BCJWDM3463
Quick Summary
Washdown motor technology from ABB delivers reliable, clean-ready drive performance for food, beverage, and pharmaceutical equipment. Operators face downtime and corrosion risk in washdown environments, and this motor's seal and TEFC enclosure help mitigate those pain points. CSA/UR listings, a NEMA design B profile, RoHS compliance, and a robust TEFC enclosure support regulatory compliance and long life in harsh plants. With 3-phase power options and a compact footprint, it reduces installation complexity while enabling scalable line upgrades for plant-wide efficiency.
Product Information
Extended Description
7BCJWDM3463 ABB: Washdown Motor 0.75 Hp 208 V (CJWDM3463)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,3PH,60HZ,56J,3514M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CJWDM3463
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYE2234: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CJWDM3463
Gross Volume
3496.049 in³
Gross Weight
33 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,3450RPM,3PH,60HZ,56J,3514M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 0.75 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (CJWDM3463)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
33 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3 A | 2.8 A | 1.4 A
Rated Efficiency
68 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35E2234-0081G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.50
Service Factor Percentage
1.50 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56J, C-Face, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature: TEFC enclosure protects internal components from washdown sprays, moisture, and dust. Business Impact: extends motor life, reduces maintenance, lowers total cost of ownership. Application: ideal for food processing lines and dairy equipment where hygiene and durability matter. This protective design helps uptime in harsh environments and simplifies cleaning cycles. Feature: Frame 56J with foot-mounted base and horizontal mounting (F1). Business Impact: standardized installation, quicker retrofits, and easier alignment in existing conveyors. Application: packaging lines and material handling systems that require reliable mounting without custom brackets. Feature: 0.75 HP, 3450 r/min, 2P, 60 Hz, 208-230/460 V, 3-phase, direct-on-line starting. Business Impact: strong starting torque, simple control, and reduced soft-start requirements. Application: fast line starts on feeder and turn-key drives. Feature: Insulation class F, RoHS compliant, sealed 6205 bearing. Business Impact: electrical reliability and regulatory compliance with longer bearing life. Application: high-hygiene facilities where contamination control and maintenance intervals matter. Feature: NEMA design B, shaft diameter 0.63 in, 0.75 HP output, service factor 1.50. Business Impact: predictable performance margins under load and compatibility with standard drives. Application: general purpose, continuous duty environments in automated lines.
Get a Quick Quote for a ABB 7BCJWDM3463
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCJWDM3463?
Enquire Now
FAQs
CJWDM3463 is a 3-phase, 60 Hz motor with a 56J frame, foot-mounted base, and horizontal F1 mounting. It is designed for direct-on-line starting and supports 208-230/460 V supplies. The C-face drive end and TEFC enclosure simplify mounting and wiring, allowing quick retrofits into standard line panels and conveyors without special adaptors.
The motor delivers 0.75 HP with a rated current of 3 A (nominal), and a service factor of 1.50. It operates at 60 Hz with a synchronous speed of 3600 r/min and a rated speed of 3450 r/min. The insulation class is F, efficiency is 68%, and the power factor is 74%, suitable for continuous duty in automated lines.
This washdown unit is well-suited for food & beverage, dairy, and pharmaceutical lines where hygiene and corrosion resistance are critical. With a TEFC enclosure, RoHS compliance, and a 40 °C ambient rating, it performs reliably in wet cleaning cycles, packaging equipment, and hygienic conveyors requiring robust sanitation and uptime.
The CJWDM3463 carries CSA and UR listings and conforms to RoHS directives. It aligns with NEMA design expectations (Design B) and features a sealed bearing configuration for reliability in washdown environments, helping meet regulatory and industry-standard requirements for controlled environments.
Sealed bearings (6205) and a robust TEFC enclosure reduce maintenance frequency, while the 0.75 HP rating pairs with a 1.50 service factor to tolerate variable loads. The motor weighs 33 lb and fits within a compact 56J frame, enabling easier installation and lower downtime across multiple lines, which translates to improved overall equipment effectiveness (OEE).
