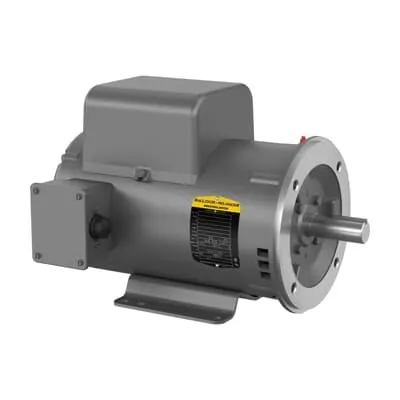

ABB 7BCL1408TM General Purpose Motor - NEMA L
Part Number: 7BCL1408TM
Quick Summary
ABB 7BCL1408TM General Purpose Motor delivers reliable, 3 HP power for 115 V single-phase drives in general industrial equipment. Engineers often struggle to source a durable, readily available motor that fits standard frame sizes and mounting options without compromising performance. This model carries CSA | UR certification and adheres to NEMA design standards, with an open enclosure and 1PH operation that simplifies installation in open control panels. With a compact 184TC frame, foot-mounted configuration, and 115/230V versatility, it offers a cost-effective, scalable solution for OEMs and maintenance teams pursuing consistent uptime and easy replacement.
Product Information
Extended Description
7BCL1408TM ABB: General Purpose Motor 3 Hp 115 V (CL1408TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1725RPM,1PH,60HZ,184TC,3634LC,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL1408TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYF984: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CL1408TM
Gross Volume
5274.135 inÂł
Gross Weight
80 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1725RPM,1PH,60HZ,184TC,3634LC,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 3 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CL1408TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
78 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
80 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
32 A | 16 A
Rated Efficiency
78 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 184Tc, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
H
Voltage Rating
115 V | 230 V
Feature: 3 HP, 1 phase, 60 Hz operation; Business Impact: Delivers ample torque for standard open equipment with straightforward control schemes, reducing drive costs and energy waste; Application: Pumps, fans, conveyors, and general machinery in light industrial lines. Feature: 184TC frame with C-face mounting and foot-mounted base; Business Impact: Enables flexible installation and straightforward retrofits across OEM platforms, shortening installation time and minimizing modification needs; Application: OEM gear-driven systems and control panels. Feature: Open enclosure with insulation class F and regreasable bearings; Business Impact: Improves cooling, simplifies maintenance, and extends service intervals, lowering total cost of ownership; Application: Continuous-duty conveyors and handling equipment. Feature: Voltage versatility 115/230 V; Business Impact: Supports dual-voltage operations, enabling global deployment and stock consolidation; Application: International installations and refurbishments. Feature: CSA | UR certification and NEMA alignment; Business Impact: Ensures regulatory compliance and safer operation, reducing risk in regulated environments; Application: BAA-compliant production floors and industrial automation setups. Feature: 1PH, 60 Hz, 1725 r/min performance metrics; Business Impact: Predictable speed and torque for consistent process control, improving process stability and uptime; Application: General purpose drives in packaging and material handling.
Get a Quick Quote for a ABB 7BCL1408TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL1408TM?
Enquire Now
FAQs
The 7BCL1408TM is a foot-mounted, C-face mounted motor with an open enclosure, designed for horizontal mounting and straightforward base attachment. It supports 115/230 V operation and direct wiring to standard variable frequency drives or hard-wired controls. With a 184TC frame, you can interchange with common motor bases and adapt control panels quickly, minimizing wiring complexity and installation time.
This motor provides 3 HP output with a rated speed of 1725 r/min at 60 Hz, single-phase operation, and a service factor of 1.15. It uses 6206 and 6205 ball bearings and insulation class F, offering reliable duty in light industrial conveyors, pumps, and fans. Efficiency is rated at about 78%, supporting energy-conscious selection without sacrificing performance.
Yes, the motor is specified with an OPEN enclosure suitable for general open machinery. It is designed to comply with NEMA design standards and carries CSA | UR certification, providing a clear regulatory path for safety and performance in controlled environments. These features support compliant installations on production lines and OEM equipment.
The 7BCL1408TM carries CSA | UR certification for electrical safety and performance recognition, alongside NEMA-based design compliance. It is offered in a general open-enclosure, single-phase configuration with a 115/230 V rating, and is stocked in multiple warehouses for rapid fulfillment, making it suitable for regulated facilities and maintenance operations.
With regreasable bearings and an insulation class F design, the motor supports extended service intervals and easier preventive maintenance, reducing downtime. Its open enclosure and standard mounting simplify replacement and repairs, while dual voltage support minimizes spare parts inventory. Fast lead times from stocked warehouses further reduce downtime costs during asset refreshes or OEM upgrades.
