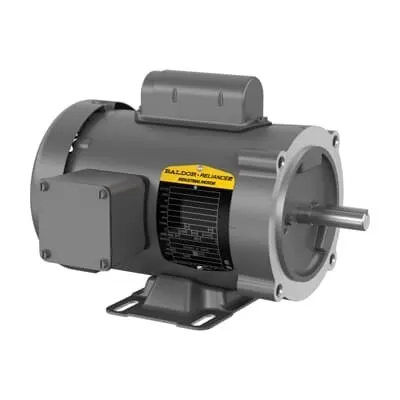

ABB 7BCL3403 General Purpose Motor - TEFC 56C
Part Number: 7BCL3403
Quick Summary
ABB 7BCL3403 General Purpose Motor drives small machinery with reliable single-phase operation. It helps engineers avoid undersized performance by delivering steady 0.25 HP at 115/230 V in a compact 56C frame. The 0 day lead time and multi-warehouse stocking reduce downtime and accelerate project timelines. With CSA/UR certification, NEMA compatibility, and a TEFC enclosure, this motor balances safety, compliance, and long-term reliability. For optimized maintenance and predictable lifecycle costs, this model complements general-purpose applications and standard control schemes while keeping procurement straightforward.
Product Information
Extended Description
7BCL3403 ABB: General Purpose Motor 0.25 Hp 115 V (CL3403)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
11L 4P TEFC HOR 56C
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3403
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYC062: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CL3403
Gross Volume
1400.25 in³
Gross Weight
20 lb
Horsepower Rating UL/CSA
0.250 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
11L 4P TEFC HOR 56C
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 0.25 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CL3403)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Opposite Drive End Flange Type
Standard
Order Multiple
1 piece
Output Power
0.25 Hp
Power Factor
57 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
20 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.6 A | 2.5 A
Rated Efficiency
55 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.35
Service Factor Percentage
1.35 %
Shaft Diameter
0.63 in
Short Description
0.25 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature: Single-phase operation at 115/230 V enables flexible installation across facilities. Business Impact: Simplifies wiring, reduces control circuitry, and lowers startup costs. Application: Ideal for light-duty conveyors and pumps in small industrial lines. Feature: TEFC enclosure and 56C frame provide rugged protection and compact footprint. Business Impact: Improves durability in harsh environments and eases replacement in cramped motor bays. Application: Suitable for machine tools and general purpose equipment in compact spaces. Feature: 1-phase design with 1725 rpm and 0.25 HP output. Business Impact: Delivers predictable torque for continuous duty, improving uptime and process stability. Application: General purpose drives, fans, and small pumps. Feature: C-face mounting and foot-mount base with 0.63 in shaft diameter. Business Impact: Simplifies mechanical integration and alignment, reducing installation time by enabling quick bolting and coupling. Application: Horizontal mounting on standard bases for small-line equipment. Feature: Frame 56C and NEMA-aligned design with F insulation and 60 Hz operation. Business Impact: Enhances cross-compatibility with common drive systems and minimizes regulatory concerns. Application: Replacements for legacy 56C motors in existing lines. Feature: Stocked at multiple warehouses with 0 day lead time; CSA | UR and NEMA standards. Business Impact: Reduces procurement risk, accelerates project delivery, and ensures regulatory compliance. Application: Global maintenance shops and international installations.
Get a Quick Quote for a ABB 7BCL3403
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3403?
Enquire Now
FAQs
For installation, use horizontal foot mounting with the 56C frame and a C-face flange. Direct On Line starting is standard, which minimizes control complexity. Ensure a rigid base and proper alignment to protect bearings and shafts, and choose a supported enclosure location that avoids excessive dust or moisture to maintain TEFC protection.
The motor is a 1-phase device rated for 115 V or 230 V at 60 Hz, delivering 0.25 horsepower with a nominal speed of 1725 r/min. It uses a 6203 ball bearing, insulation class F, and has a rated current reflecting its single-phase operation. Duty is continuous and the shaft is 0.63 inches in diameter.
Yes, its general-purpose, single-phase design, 56C frame, TEFC enclosure, and C-face mounting suit compact conveyors and small pumps. While it is not a food-grade or explosion-rated model, it provides reliable, easy-to-integrate power for standard process equipment with predictable torque and straightforward maintenance.
The motor is associated with CSA and UR certification listings and adheres to NEMA design standards. This combination supports safe operation, regulatory compliance, and compatibility with widely used control and safety schemes in North American facilities.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses, including US and international locations. This arrangement supports rapid fulfillment, minimized downtime, and easier global procurement for maintained fleets or project rollouts.
