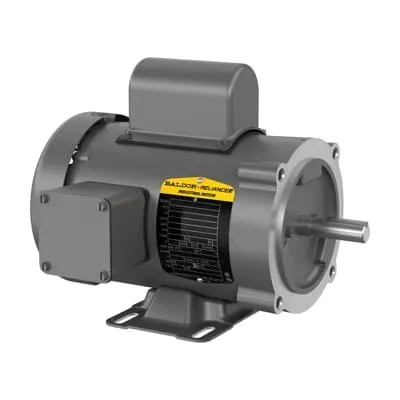

ABB 7BCL3506 General Purpose Motor - TEFC, 1PH
Part Number: 7BCL3506
Quick Summary
General Purpose Motor from ABB delivers reliable 0.75 HP power for light industrial pumps. The challenge is achieving dependable performance in compact footprints while keeping energy use in balance. This model incorporates CSA and UR listings, a NEMA TEFC design, and a 56C frame to support robust, long-life operation. With stock available at multiple warehouses and a zero-day lead time, it’s easy to keep projects on schedule. By pairing easy installation with standard, widely available control solutions, this motor helps protect project timelines and total cost of ownership while aligning with common procurement vocabularies.
Product Information
Extended Description
7BCL3506 ABB: General Purpose Motor 0.75 Hp 115 V (CL3506)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,1PH,60HZ,56C,3424L,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3506
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYK053: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CL3506
Gross Volume
2110.969 inÂł
Gross Weight
29 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.75HP,3450RPM,1PH,60HZ,56C,3424L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 0.75 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CL3506)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
29 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.6 A | 5 A | 4.8 A
Rated Efficiency
66 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
K
Voltage Rating
115 V | 230 V
