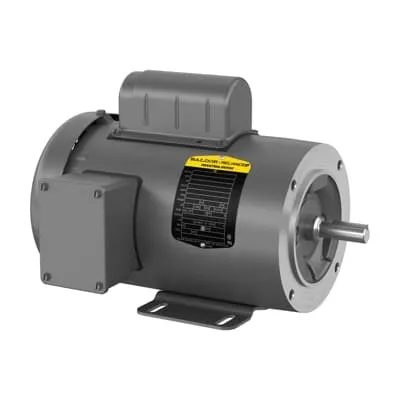

ABB 7BCL3510 General Purpose Motor 1PH 60Hz - TEFC
Part Number: 7BCL3510
Quick Summary
General Purpose Motor is a reliable compact drive for light-duty equipment such as fans, pumps, and conveyors. Users often struggle with mounting compatibility and long lead times when sourcing single-phase motors, causing downtime. This ABB CL3510 unit combines a TEFC enclosure, 56C frame, and CSA/UR certifications to meet safety, regulatory, and installation standards. It is designed for 115/230 V operation at 60 Hz and features regreasable bearings for easy maintenance. Stocked at multiple warehouses with 0 day lead time, it minimizes procurement delays while delivering dependable performance in 60 Hz environments. With C-face mounting and foot-mounted options, the design supports straightforward Retrofit projects, reducing installation complexity and downtime for OEMs and integrators.
Product Information
Extended Description
7BCL3510 ABB: General Purpose Motor 1 Hp 115 V (CL3510)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3510
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
L
Dimension Diagram
35LYC012: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CL3510
Gross Volume
2110.969 in³
Gross Weight
40 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CL3510)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
76 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
40 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.2 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35C12G376
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
L
Voltage Rating
115 V | 230 V
TEFC enclosure provides robust protection against dust and moisture, extending motor life in harsh industrial environments, which translates to reduced maintenance costs and fewer unplanned outages. This design pairs with a 56C frame to ensure compatibility with a wide range of accessories and mounting hardware, simplifying installation and service. The 1 HP, 1725 RPM output at 60 Hz delivers consistent torque for conveyor belts and pump applications, improving process stability and throughput while keeping energy use predictable. Regreasable bearings enable scheduled lubrication, extending bearing life and lowering total cost of ownership through fewer bearing replacements. Foot Mounted and C-face mounting options offer installation flexibility, enabling quick swaps in retrofit projects and reducing installation lead times. Availability across multiple warehouses and a 0 day lead time minimizes downtime and accelerates procurement for critical spare parts. NEMA Design Code L and CSA/UR certification provide compliance assurance for workplace safety and regulatory requirements, which simplifies audits and qualification processes for plant operators.
