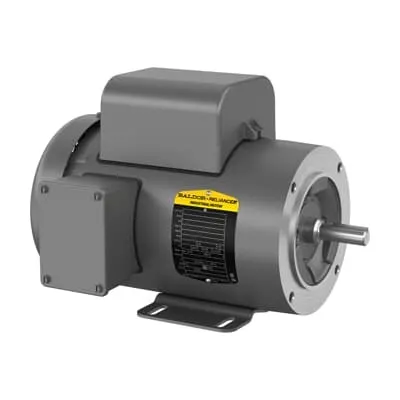

ABB 7BCL3514 General Purpose Motor - NEMA TEFC 56C
Part Number: 7BCL3514
Quick Summary
ABB 7BCL3514 General Purpose Motor is a 1PH enclosed motor designed for general purpose drives in light industrial equipment. Engineers often struggle to source a reliable, stock-ready motor that fits a 56C footprint and the dual voltage 115/230 V supply. This model is CSA/UR listed, NEMA design L, and features a TEFC enclosure with a 56C frame, supporting safe operation and long service life. For procurement teams, the combination of 0-day lead time, stock across multiple warehouses, and straightforward maintenance translates to lower downtime and predictable total cost of ownership. With 60 Hz operation, 1725 rpm, and 1-phase flexibility, it suits pumps, fans, and conveyors across manufacturing environments.
Product Information
Extended Description
7BCL3514 ABB: General Purpose Motor 1.5 Hp 115 V (CL3514)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1725RPM,1PH,60HZ,56C,3532LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3514
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE024: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CL3514
Gross Volume
3496.049 in³
Gross Weight
51 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1725RPM,1PH,60HZ,56C,3532LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CL3514)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
98 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
51 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.2 A | 6.1 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35E024G242
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: TEFC enclosed design provides protection in dusty or humid environments, reducing airborne contamination and maintenance needs, which translates to longer service intervals and lower total cost of ownership in conveyors and fans. Feature → Business Impact → Application: 56C frame with C-face mounting enables quick replacement and compatibility with standard automation sleds, improving installation speed on pumps and small machine tools. Feature → Business Impact → Application: 1PH, 115/230 V dual voltage supports flexible wiring and simple integration into existing plant panels, cutting wiring complexity and allowing rapid deployment in light industrial lines. Feature → Business Impact → Application: Direct On Line starting and continuous duty up to 60 minutes enables reliable start-up and steady operation for fans, pumps, and conveyors in manufacturing lines. Feature → Business Impact → Application: High power factor (98%) and 80% efficiency reduce energy consumption and heat generation, delivering measurable energy savings in long-running applications. Feature → Business Impact → Application: Regreasable bearings and robust 6205/6203 ball bearings offer predictable maintenance cycles, minimizing unscheduled downtime in pumps and blowers. Feature → Business Impact → Application: Stocked at multiple warehouses and USA origin support fast procurement, enabling just-in-time maintenance and rapid equipment uptime across diverse sites.
Get a Quick Quote for a ABB 7BCL3514
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3514?
Enquire Now
FAQs
This motor is designed for single-phase power (115/230 V) and uses a 56C frame with horizontal, foot-mounted, C-face mounting. Ensure the drive end flange is compatible with your base plate and that the supply wiring matches the 115/230 V dual-voltage configuration. Direct On Line starting simplifies the electrical connection, while a TEFC enclosure helps protect against dust and moisture during installation.
The 7BCL3514 bears CSA and UL (UR) listings and follows NEMA design standards with a TEFC enclosure. It is designed as a compliant, reliable solution for general purpose industrial use, suitable for light-duty motors and applications requiring regulatory alignment and predictable performance.
The motor uses a foot-mounted design with C-face drive end flange, rated TEFC enclosure, and a horizontal mounting orientation. This combination supports straightforward installation on common industrial equipment such as pumps, fans, and small conveyors, and ensures robust protection in typical plant environments.
Operating at 60 Hz with 1725 rpm and a dual voltage rating of 115/230 V, the motor features a 60-minute duty and insulation class F for thermal resilience. It employs regreasable bearings (6205, 6203) and a 1.5 HP output, delivering reliable, continuous operation for routine industrial tasks while maintaining a low maintenance profile.
With a high power factor (98%) and around 80% efficiency, energy costs are reduced over the motor’s life. Regreasable bearings simplify maintenance scheduling, and the TEFC enclosure minimizes contaminant ingress. Stock availability across multiple warehouses reduces downtime through faster procurement, making this motor a cost-effective choice for pumps, blowers, and light conveyors.
