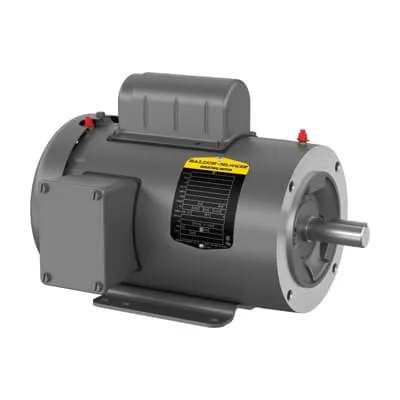

ABB 7BCL3515T General Purpose Motor - TEFC 1PH 60Hz
Part Number: 7BCL3515T
Quick Summary
ABB 7BCL3515T General Purpose Motor is a 2 HP single‑phase motor ideal for standard drives in conveyors, pumps, and fans. This design supports quick commissioning and reliable start‑up across light industrial equipment. If your project faces delays due to long lead times or parts sourcing, this motor’s stocked availability and multi‑warehouse distribution help keep timelines intact. Certifications including CSA/UR, RoHS compliance, and a NEMA design code of L reinforce safe operation, regulatory alignment, and efficient performance. With 115/230 V operation and a robust TEFC enclosure, it delivers dependable power while simplifying electrical panel design. The unit is engineered for easy installation with C‑Face mounting, 145TC frame, and straightforward maintenance, adding business value through downtime reduction and predictable reliability.
Product Information
Extended Description
7BCL3515T ABB: General Purpose Motor 2 Hp 115 V (CL3515T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,1PH,60HZ,145TC,3535L,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3515T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYY527: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CL3515T
Gross Volume
2110.969 in³
Gross Weight
53 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,3450RPM,1PH,60HZ,145TC,3535L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 2 HP, 3600 RPM, Frame Size 145Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CL3515T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
82 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
53 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23 A | 12 A | 11.5 A
Rated Efficiency
74 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 3600 RPM, Frame Size 145Tc, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
K
Voltage Rating
115 V | 230 V
TEFC enclosure protects internal components from dust, moisture, and incidental contact, reducing maintenance cycles and extending motor life in harsh shop environments. Business impact: lower total cost of ownership and less unexpected downtime; Application: suitable for dust-prone conveyors or pump lines in light industrial settings. 2 HP, 115/230 V single‑phase, 60 Hz design aligns with common US electrical infrastructure, enabling cost‑efficient installation and simplified panel wiring. Business impact: reduced installation time and procurement complexity; Application: fans and small pumps in OEM equipment. 145TC frame with C‑Face mounting and drive‑end flange supports straightforward mounting and compatibility with standard belt and pulley systems, improving retrofit options and serviceability. Business impact: faster installation, easier maintenance; Application: aftermarket upgrades in existing lines. Service factor 1.15 and insulation class F deliver improved overload tolerance and thermal performance, enhancing reliability during peak loads. Business impact: higher uptime and better fault margins; Application: continuous duty operations in medium‑duty cycles. Regreasable bearings with 6205 drive end and 6203 NDE ensure low‑maintenance operation and longer service intervals, reducing ongoing lubrication costs. Business impact: lower maintenance spend; Application: long‑term production line reliability. With RoHS compliance and CSA/UR certifications, the motor meets modern regulatory and safety standards while supporting compliance reporting. Business impact: faster regulatory clearance and safer operation; Application: export or cross‑site deployments. Stocked Across Multiple Warehouses: EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU, enabling zero‑day shipping in many regions. Business impact: dramatic reduction in lead times; Application: project timelines and just‑in‑time sourcing.
Get a Quick Quote for a ABB 7BCL3515T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3515T?
Enquire Now
FAQs
This motor uses a TEFC enclosure with C‑Face mounting and a foot‑mounted configuration on a 145TC frame. It supports horizontal mounting (F1) and direct‑on‑line starting, making it compatible with standard shafts, belts, and pulleys. Ensure proper alignment, secure mounting to a solid base, and fitment of 0.88 in shaft diameter for connection to your driven equipment.
The ABB 7BCL3515T delivers 2 HP at 115/230 V, 60 Hz, 1 phase, with a rated speed of 3450 r/min and a synchronous speed of 3600 r/min. It has a 1.15 service factor, insulation class F, PF around 82%, and a regreasable bearing arrangement (6205 drive end, 6203 NDE). It uses a TEFC enclosure for rugged operation.
Yes. Its 2 HP single‑phase design at 60 Hz, 115/230 V, combined with a durable TEFC enclosure and C‑Face mount, makes it well suited for conveyors, pumps, and fans in light industrial environments. The continuous duty rating and robust bearings support reliable running, while easy mounting accelerates installation and retrofit projects.
This motor is RoHS compliant and carries CSA and UR certifications, supporting regulatory compliance and safety across North American installations. The NEMA design code is L, which informs compatibility with standard single‑phase, general purpose design practices. These certifications simplify procurement and cross‑site deployments.
Stock is distributed across multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU) with 0‑day lead times reported. Warranty terms include return of defective units, and the product is supported by standard ABB parts and service networks. This combination minimizes downtime and accelerates maintenance planning.
