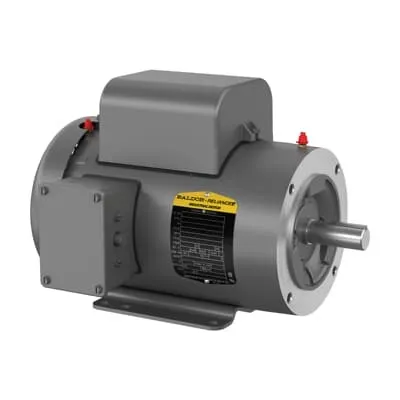

ABB 7BCL3516TM General Purpose Motor - TEFC 2 HP 60 Hz
Part Number: 7BCL3516TM
Quick Summary
ABB 7BCL3516TM General Purpose Motor is a compact, 2 HP single-phase motor designed for general-duty industrial equipment. This model helps engineers reduce downtime by providing reliable, straightforward installation for small pumps, conveyors, and fans. It leverages a NEMA design L, a TEFC enclosure, and CSA/UR certification to support compliant operation in demanding environments. With a 145TC frame and C-face mounting, it aligns with common OEM footprints, enabling quicker integration, standardized maintenance, and improved procurement efficiency for manufacturing lines that value consistency and uptime. The motor’s 208–230 V, 60 Hz rating complements single-phase systems while offering solid efficiency and predictable performance for everyday industrial tasks.
Product Information
Extended Description
7BCL3516TM ABB: General Purpose Motor 2 Hp 208 V (CL3516TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1740RPM,1PH,60HZ,145TC,3534LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3516TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYKK375: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CL3516TM
Gross Volume
2110.969 in³
Gross Weight
53 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1740RPM,1PH,60HZ,145TC,3534LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 208-230 V, 60 Hz (CL3516TM
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
99 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
53 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.7 A | 7.9 A
Rated Efficiency
82.50 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 1 PH, TEFC, 208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
H
Voltage Rating
208 V | 230 V
Feature: TEFC enclosure provides robust protection against dust, moisture, and debris. Business Impact: Reduces field maintenance and extends motor life in harsh environments. Application: Suitable for conveyors and fans in dusty production areas. Feature: 1-phase, 60 Hz operation simplifies electrical install and control wiring. Business Impact: Lowers installation cost and speeds up commissioning. Application: Small-capacity pumps and accessory equipment in retrofit projects. Feature: 2 HP, 1740 rpm rating delivers reliable torque without over-specification. Business Impact: Improves startup performance and process stability, supporting higher throughput. Application: Medium-duty pumping and air-handling applications. Feature: 145TC frame with C-face mounting and 4-pole design. Business Impact: Ensures compatibility with common OEM mounts, reducing substitute parts risk. Application: Replacing legacy motors in legacy lines and OEM upgrades. Feature: Service Factor 1.15 and F insulation class. Business Impact: Supports startup surges and longer insulation life under continuous duty. Application: Continuous operation in manufacturing environments with frequent on/off cycles. Feature: Bearing set 6205 | Ball / 6203 | Ball enhances durability and reduces maintenance intervals. Business Impact: Lower maintenance costs and extended service intervals. Application: Long-running drives for pumps and fans in packaging and material handling. Feature: Lead time and stocking across multiple warehouses. Business Impact: Accelerates project timelines with faster procurement. Application: Reduces downtime from part sourcing in North America and China.
Get a Quick Quote for a ABB 7BCL3516TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3516TM?
Enquire Now
FAQs
The motor uses Horizontal mounting with a C-face drive end flange and a 145TC frame, matching common OEM footprints. It is foot-mounted for flexible installation and designed for direct-on-line start on 208-230 V single-phase systems, ensuring straightforward wiring and dependable performance in traditional plant layouts.
Key specs include 2 HP output, 1740 r/min rated speed, 208-230 V single-phase, and 60 Hz operation. Rated current is 8.7 A / 7.9 A with an efficiency of 82.50% and a service factor of 1.15. Insulation class is F, frame size 145TC, and bearing types are 6205 and 6203 ball bearings, suitable for continuous duty.
Yes. Designed for continuous duty with a 60-minute duty rating, TEFC enclosure, and 1-phase operation, it is well-suited for conveyors, small pumps, and fans in manufacturing environments. Its 145TC/1PH configuration minimizes integration risk while delivering reliable torque and steady operation under typical load profiles.
The 7BCL3516TM carries CSA/UR certification, aligning with North American electrical safety requirements. It adheres to NEMA design standards for a TEFC, single-phase motor, supporting compliant performance in industrial facilities and ensuring reliable maintenance and replacements.
Lead time is listed as 0 day with stock at multiple warehouses, including Alabama and other US locations, as well as China. This enables rapid procurement, faster project ramp-up, and reduced downtime when replacing or stocking spare motors for critical equipment in 1PH, 60 Hz operations.
