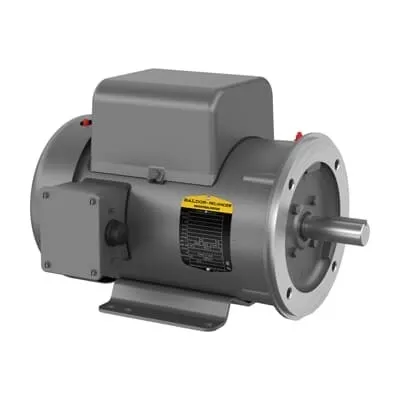

ABB 7BCL3608TM General Purpose Motor - 1PH 60Hz TEFC
Part Number: 7BCL3608TM
Quick Summary
ABB 7BCL3608TM General Purpose Motor provides reliable 5 HP performance for 1PH industrial drives. This single-phase motor is ideal for pumps, conveyors, and fans in light manufacturing. For buyers, ensuring compatibility with existing drives and mounting patterns can cause project delays; this model offers a robust option with a 184TC frame, C-face mounting, and foot-mounted configuration to simplify installation. The unit carries CSA and UR certifications and aligns with NEMA standards, giving compliance confidence in North American facilities. Ready availability across multiple warehouses shortens lead times and reduces downtime, while a TEFC enclosure protects against dust and moisture in tough environments. Bottom line: dependable, easy-to-install general purpose motor for everyday industrial tasks.
Product Information
Extended Description
7BCL3608TM ABB: General Purpose Motor 5 Hp 230 V (CL3608TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3450RPM,1PH,60HZ,184TC,3640LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3608TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYM038: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CL3608TM
Gross Volume
5274.135 in³
Gross Weight
92 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,3450RPM,1PH,60HZ,184TC,3640LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 5 HP, 3600 RPM, Frame Size 184Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (CL3608TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
99 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
92 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21.6 A | 19.5 A
Rated Efficiency
83 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5 HP, 3600 RPM, Frame Size 184Tc, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
G
Voltage Rating
230 V
Feature: 5 HP, 230 V, 60 Hz single-phase design. Business Impact: Enables straightforward integration with common line voltages and drives, reducing electrical adaptation costs and project risk. Application: Ideal for small pumps and fans in light industrial lines without three-phase infrastructure. Feature: TEFC enclosure with 184TC frame. Business Impact: Enhanced dust and moisture protection, longer service life in harsh environments, lower maintenance frequency. Application: Conveyor and packaging lines in manufacturing floors. Feature: Foot-mounted, C-face mounting. Business Impact: Simplifies installation and retrofits on existing bases, cutting installation time and customization costs. Application: OEM equipment with standard mounting footprints. Feature: Regreasable bearings and robust shaft specs (1.13 in shaft). Business Impact: Lower maintenance and extended bearing life, reducing total cost of ownership. Application: Continuous-duty applications with frequent starts and stops. Feature: 1PH, 60 Hz operation, 3450 r/min speed. Business Impact: Compatibility with common single-phase power systems, predictable performance, and easy control schemes. Application: Small drives and equipment across conveyors, fans, and pumps. Feature: CSA/UR certified, NEMA-aligned. Business Impact: Regulatory confidence and streamlined procurement for North American facilities. Application: Compliance-focused deployments in food processing, packaging, and material handling.
