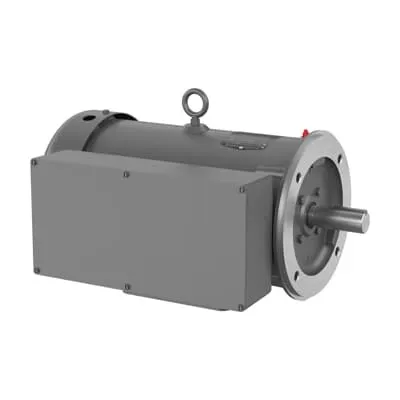

ABB 7BCL3612TM General Purpose Motor - TEFC (CSA UR)
Part Number: 7BCL3612TM
Quick Summary
ABB 7BCL3612TM General Purpose Motor is a 5 HP, 230 V single-phase motor designed for general‑purpose duty in light industrial equipment. For engineers facing downtime and long procurement cycles, this model offers rapid availability with 0 day lead time and stock at multiple warehouses. It carries critical standards such as NEMA design code L and a TEFC enclosure, plus CSA/UR certification, delivering safety and regulatory confidence in demanding environments. This combination of compact 184TC frame, C‑Face mounting, and regreasable bearings supports easy retrofits and predictable maintenance, while the 1725 rpm speed aligns with common drive systems. These factors translate to lower total cost of ownership and smoother integration into existing automation architectures.
Product Information
Extended Description
7BCL3612TM ABB: General Purpose Motor 5 Hp 230 V (CL3612TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1725RPM,1PH,60HZ,184TC,3646LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3612TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYF189: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CL3612TM
Gross Volume
5274.135 inÂł
Gross Weight
102 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1725RPM,1PH,60HZ,184TC,3646LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (CL3612TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
88 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
102 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23.6 A | 23 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
J
Voltage Rating
230 V
Feature: 5 HP, 230 V, 1 phase, 60 Hz, 1725 rpm. Business Impact: Matches standard single‑phase loads used in conveyors, fans, and pumps, enabling quick integration and predictable performance. Application: Light industrial equipment where reliable torque at low voltage is required. Feature: TEFC enclosure. Business Impact: Guards internal components from dust, moisture, and contaminants, reducing maintenance needs and downtime. Application: Factory floors and dusty environments. Feature: 184TC frame with C‑Face mounting. Business Impact: Fits widely used mounting footprints, simplifying retrofits and long‑term spare‑parts compatibility. Application: Modular conveyors and compact drives. Feature: Regreasable bearings (6206/6205). Business Impact: Extends service life and lowers lifecycle maintenance costs through proactive lubrication scheduling. Application: Continuous operation in automated lines. Feature: Foot mounted, single‑phase configuration. Business Impact: Eases installation thanks to standard mounting, cabling, and minimal wiring complexity. Application: New equipment installations and upgrades in small to mid‑size plants. The result is a robust, easy‑to‑spec motor that reduces downtime, improves energy management, and streamlines maintenance planning across automation layouts.
Get a Quick Quote for a ABB 7BCL3612TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3612TM?
Enquire Now
FAQs
The 7BCL3612TM uses a standard 184TC frame with C‑Face mounting, which is widely compatible with existing drive housings and mounting flanges. To install, align the shaft with the coupling, secure the C‑Face mounting bolts, and connect the 1‑phase 230 V power supply. Verify proper bearing lubrication and ensure the service factor remains within the motor’s continuous duty rating.
Key specs include 5 HP output, 230 V operation at 60 Hz in a 1‑phase configuration, rated speed of 1725 r/min, frame size 184TC, and a TEFC enclosure. The motor draws approximately 23.6 A (nominal) with a power factor around 88% and insulation class F, designed for continuous duty in light industrial setups.
Yes. The 7BCL3612TM is purpose‑built for general‑purpose duties common in conveyors, pumps, and fans in light industrial environments. Its TEFC enclosure protects against dust and moisture, and the 184TC frame with C‑Face mounting supports easy retrofits. With regreasable bearings and a reliable 1725 rpm speed, it offers stable torque and predictable performance for automated lines.
This motor carries CSA/UR certification and adheres to NEMA design code L, with a TEFC enclosure and F‑class insulation. These certifications support regulatory compliance in North American facilities and compatibility with approved control systems, ensuring safe operation in standard industrial environments.
Maintenance benefits include regreasable ball bearings, reducing downtime and extending service intervals. The motor is designed for continuous duty with straightforward lubrication routines. Warranty terms follow the supplier’s policy; warranty‑related returns are typically handled through standard warranty channels, so coordinate with your supplier for coverage details and service timelines.
