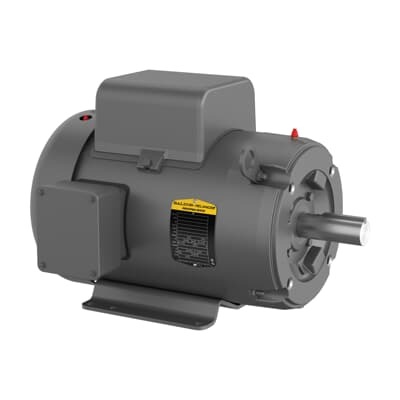

ABB 7BCL3709T General Purpose Motor - TEFC CSA/UR
Part Number: 7BCL3709T
Quick Summary
ABB 7BCL3709T General Purpose Motor delivers 7.5 HP at 230 V for light-duty pumps and conveyors. This motor reduces downtime and maintenance headaches by combining a TEFC enclosure with a robust 213TC frame. Users often face unreliable start-up on single-phase motors; this model supports reliable DOL starts and stable operation. It is CSA/UR certified and built to NEMA standards, with a 60 Hz rating and a 1-phase, 2-pole design that aligns with common industrial outlets. In addition, the 40 °C ambient rating and foot-mounted configuration support easy field installation and long service life, while the rated efficiency of 83% helps keep operating costs predictable. For procurement, it provides straightforward sourcing and compatibility with existing ABB Baldor/Reliance ecosystems, aiding fast deployment.
Product Information
Extended Description
7BCL3709T ABB: General Purpose Motor 7.5 Hp 230 V (CL3709T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,1PH,60HZ,213TC,TEFC,F
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3709T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYC002: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
CL3709T
Gross Volume
7192.91 in³
Gross Weight
126 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
7.5HP,3450RPM,1PH,60HZ,213TC,TEFC,F1
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 7.5 HP, 3600 RPM, Frame Size 213Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (CL3709T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
91 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
126 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36 A | 33 A
Rated Efficiency
83 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Short Description
7.5 HP, 3600 RPM, Frame Size 213Tc, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
230 V
Feature: 7.5 HP at 230 V single-phase with a 60 Hz rating → Business Impact: Enables direct connection to standard plant power without complex wiring or phase conversion, reducing installation time and upfront costs. Application: Ideal for light-duty conveyors and pumps in small to mid-sized facilities. Feature: TEFC enclosure → Business Impact: Protects windings from dust, moisture, and contaminants, increasing uptime in harsh production environments. Application: Workshop floors, assembly lines, and outdoor-adjacent equipment. Feature: 213TC frame with C-face mounting and foot mounting → Business Impact: Simplifies retrofit and alignment with existing equipment, minimizing downtime during motor swaps. Application: Replacements in legacy lines and modular automation setups. Feature: Synchronous speed 3600 r/min with rated speed ~3450 r/min → Business Impact: Provides reliable speed control and torque characteristics for steady process performance. Application: Fans, pumps, and small processing equipment. Feature: Insulation Class F and 83% efficiency → Business Impact: Improves thermal resilience and reduces energy losses, lowering long-term operating costs. Application: Continuous-service machines in regulated environments. Feature: CSA/UR certification and NEMA compatibility → Business Impact: Reduces procurement risk and streamlines approval processes across facilities. Application: Global installations with strict compliance requirements.
Get a Quick Quote for a ABB 7BCL3709T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3709T?
Enquire Now
FAQs
For retrofit projects, ensure a compatible foot-mounted base and align with the 213TC frame and C-face mounting. Check shaft diameter of 1.38 inches and confirm a TEFC enclosure to protect windings in dust-prone environments. Verify 230 V single-phase supply and 60 Hz service to minimize wiring changes and downtime during replacement.
Key specs include 7.5 HP output, 230 V, 1 phase, 60 Hz, and 2-pole design with 3450 rpm nominal. Rated current around 33–36 A and efficiency approximately 83%. These values support direct-on-line starting, predictable inrush, and dependable performance for light-duty loads, with moderate energy use suitable for continuous operation.
Yes. It features a continuous-duty rating with a TEFC enclosure and 40 °C ambient capability, designed for steady operation in typical manufacturing environments. With a robust 213TC frame and NEMA compatibility, it maintains torque stability and mechanical durability essential for pumps and fans running for long shifts.
The motor is CSA/UR certified, aligning with recognized electrical safety and performance standards. It also follows NEMA design guidelines and has a 60 Hz, 1PH specification common in North American facilities. These certifications help ensure regulatory compliance, simplify audits, and reduce the risk of non-conforming installations.
Maintenance benefits come from a rugged TEFC enclosure that resists contaminants and a durable 213TC frame requiring minimal upkeep. ROI is supported by energy efficiency (83%), reduced downtime from reliable DOL starting, and compatibility with existing ABB Baldor/Reliance components, enabling faster deployment and lower total cost of ownership over the motor’s life.
