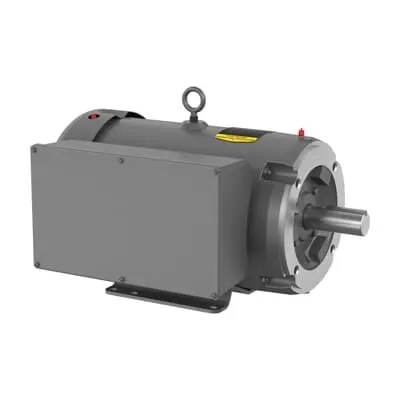

ABB 7BCL3710T General Purpose Motor - TEFC 1PH 60Hz
Part Number: 7BCL3710T
Quick Summary
The ABB 7BCL3710T General Purpose Motor is a 1‑phase motor for general‑duty applications like pumps and conveyors. Engineers often struggle with downtime and retrofit costs when sourcing compatible single‑phase motors for mixed duty plants. It carries CSA/UR listings, NEMA design code L, and a TEFC enclosure that withstands demanding environments. With 230 V operation, 60 Hz frequency, and a rugged 215TC frame, it integrates with existing systems while delivering reliable, energy‑efficient performance. Designed for continuous operation in industrial facilities, this model also supports fast procurement and dependable spare‑part availability to reduce project risk and total cost of ownership.
Product Information
Extended Description
7BCL3710T ABB: General Purpose Motor 7.5 Hp 230 V (CL3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1745RPM,1PH,60HZ,215TC,TEFC,F
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3710T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYM362: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CL3710T
Gross Volume
7192.91 in³
Gross Weight
127 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
7.5HP,1745RPM,1PH,60HZ,215TC,TEFC,F1
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 7.5 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (CL3710T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
97 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
127 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
31 A | 29 A
Rated Efficiency
86.50 %
Rated Speed
1745 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 215Tc, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
230 V
Feature: 7.5 HP, 230 V, 1PH, 60 Hz, Frame 215TC, C-face mounting. Business Impact: Delivers strong, single‑phase performance in a compact footprint, enabling straightforward retrofits and space‑conscious installations. Application: Ideal for light‑to‑medium duty pumps, fans, and conveyors in manufacturing lines. Feature: TEFC enclosure with C‑Face flange and foot mounting. Business Impact: Provides robust protection against dust and moisture while simplifying alignment and mounting in harsh shop floors. Application: Suitable for open‑area equipment and machine stations where environmental exposure is a concern. Feature: NEMA Design Code L and Insulation Class F. Business Impact: Predictable torque characteristics and high-temperature tolerance for long‑life operation, reducing unscheduled downtime. Application: Continuous duty drives in warmth‑prone facilities, such as packaging lines and process equipment. Feature: Efficiency 86.5% and Power Factor 0.97. Business Impact: Lower operating costs through improved efficiency and reduced heat generation, aiding cooler cabinet temperatures and smaller cooling requirements. Application: Energy‑intensive systems like conveyors and pumps that run for extended periods. Feature: 1745 r/min, 4P, 215TC frame, 1PH, 230 V, 60 Hz. Business Impact: Standardized, easy replacement in legacy systems with available spare parts and compatible couplings. Application: Replacements in existing Baldor/ABB setups with minimal non‑productive downtime. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Accelerates procurement cycles, reducing project lead times and ensuring rapid availability for maintenance windows. Application: Critical spares in OEM and repair shop environments, enabling proactive maintenance and uptime.
Get a Quick Quote for a ABB 7BCL3710T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3710T?
Enquire Now
FAQs
The 7BCL3710T uses a C‑Face drive end flange with a foot‑mounted horizontal orientation and a 215TC frame, enabling straightforward drop‑in replacement in many service motors. For installation, verify the shaft alignment with the driven equipment, secure the feet to a flat base, and connect the wiring per 230V, 1PH, 60 Hz specifications. Direct On Line starting minimizes added components in basic systems.
Yes. This motor is designated for Continuous duty and features insulation class F to handle sustained operation in typical industrial environments. With a PF of 0.97 and an efficiency of 86.5%, it maintains stable performance under prolonged loading, helping to manage heat and energy costs while delivering reliable operation in pumps, conveyors, and fans.
The 7BCL3710T is CSA/UR listed and follows NEMA design practices, with a TEFC enclosure for rugged environments. These certifications support compliance in North American facilities and simplify integration with standard motor controllers and safety systems, ensuring predictable performance and safety in typical plant layouts.
Key specs are 230 V, 60 Hz, 1 phase, rated current around 31 A (nominal) with two current values (31 A | 29 A). The motor offers a high PF (0.97) and 7.5 HP output at 1745 r/min. It starts Direct On Line, so ensure the starter or drive supports DOL starting and that wiring, fusing, and enclosure ratings match your control panel and safety requirements.
Lead time is listed as 0 day with multiple warehouses stocking the product, including locations in the US and internationally. This stocking strategy supports fast procurement and quick replacement in maintenance schedules, reducing downtime and keeping production lines running with readily available spares.
