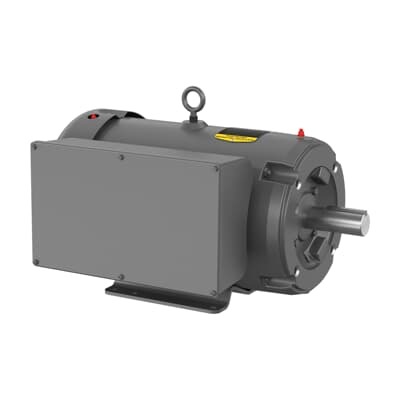

ABB 7BCL3711T General Purpose Motor - TEFC 1PH
Part Number: 7BCL3711T
Quick Summary
ABB 7BCL3711T General Purpose Motor powers single-phase equipment for conveyors, pumps, and fans. When sourcing motors, engineers often face long lead times and inconsistent availability across suppliers. This unit carries CSA/UR certification and aligns with NEMA standards, while a TEFC enclosure supports harsh environments. Built for reliable industrial performance at 230 V, 60 Hz, this model delivers straightforward installation and quick maintenance, making it a practical choice for retrofit projects and new line deployments.
Product Information
Extended Description
7BCL3711T ABB: General Purpose Motor 10 Hp 230 V (CL3711T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3450RPM,1PH,60HZ,215TC,3744LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3711T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYF395: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CL3711T
Gross Volume
7561.383 in³
Gross Weight
167 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,3450RPM,1PH,60HZ,215TC,3744LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 10 HP, 3600 RPM, Frame Size 215Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (CL3711T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
98 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
167 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
43 A | 40 A
Rated Efficiency
82 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
10 HP, 3600 RPM, Frame Size 215Tc, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
H
Voltage Rating
230 V
Feature: 10 HP, 230 V, 60 Hz, single-phase design. Business Impact: Delivers robust starting torque and reliable operation in common small- to mid-size equipment, reducing downtime and supporting consistent throughput in light industrial applications. Application: Ideal for conveyors, pumps, and fans in packaging, material handling, and process workflows. Feature: TEFC enclosure with C-Face mounting and 215TC frame. Business Impact: Enhanced protection against dust and moisture while enabling flexible mounting options for retrofit projects and OEM assemblies. Application: Suitable for factory floors and equipment enclosures in challenging environments. Feature: Regreasable bearings and durable steel frame. Business Impact: Lower maintenance costs and longer service life, reducing total cost of ownership over the motor’s lifecycle. Application: Heavy use in continuous duty scenarios with predictable maintenance windows. Feature: High efficiency and power factor (82% / 0.98 PF). Business Impact: Energy savings and improved electrical performance translate to lower operating costs and better power management. Application: Continuous operation in demanding process lines and cooling‑sensitive systems. Feature: 1-phase, 2-pole design with 3450 r/min rating. Business Impact: Simple integration with common 1PH systems and compatibility with standard drives and controllers. Application: Pumping and conveying tasks that require straightforward speed and torque characteristics.
Get a Quick Quote for a ABB 7BCL3711T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3711T?
Enquire Now
FAQs
This motor features foot mounting with a C-Face Drive End Flange and a 215TC frame, plus horizontal mounting orientation. The shaft diameter is 1.38 inches, enabling straightforward alignment with standard belt or coupling systems and easy retrofits.
The 7BCL3711T runs on 230 V, 60 Hz in a single-phase configuration, delivering 10 HP with a rated current around 43 A. It offers a power factor of 0.98, efficiency of about 82%, a rated speed of 3450 r/min, and a synchronous speed of 3600 r/min, suitable for continuous duty.
This motor is CSA and UL (UR) certified and aligns with NEMA standards. It uses a TEFC enclosure and standard 215TC frame, supporting compliance with common industrial procurement requirements.
Lead time is listed as 0 day, with stock available at multiple warehouses (US and international). The product status is Active, and it is stocked across regional distribution centers to support fast delivery.
Regreasable bearings and a durable steel frame support long service life with manageable maintenance intervals. Energy efficiency (82%) and high power factor (0.98) contribute to lower operating costs, delivering quicker ROI for continuous-process applications.
